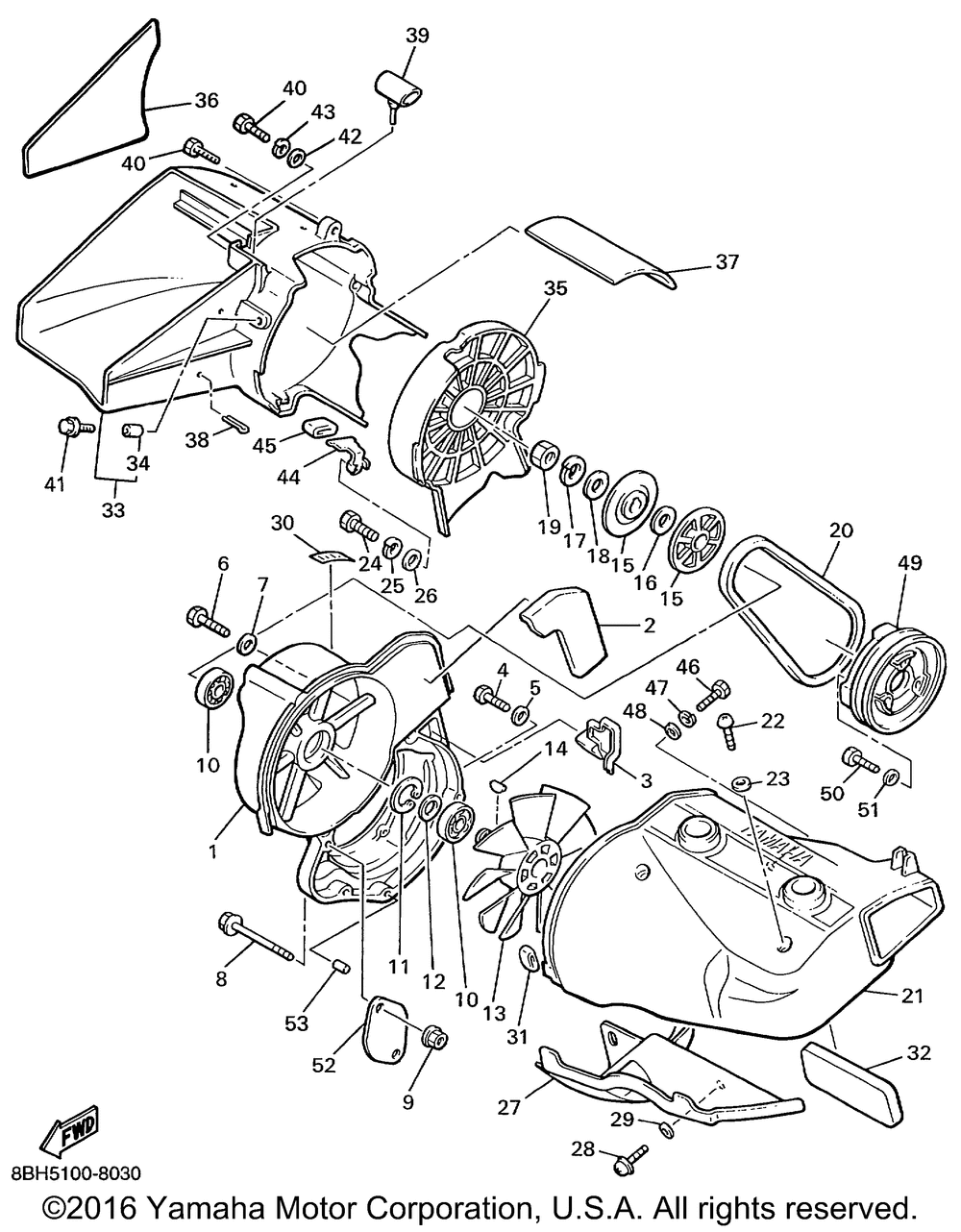

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CASE FAN | 1 | |
| 2 | DAMPERSHROUD 6 | 1 | |
| 3 | DAMPERAIR SHRD 1 (USA) | 1 | |
| 4 | BOLT | 2 | |
| 5 | WASHER (6TA) | 2 | |
| 6 | BOLTHEXAGON | 1 | |
| 8 | BOLT FLANGE | 2 | |
| 9 | Гайка с фланцем | 2 | |
| 10 | BEARING | 2 | |
| 11 | CIRCLIPR-TYPE | 1 | |
| 12 | WASHERPLATE | 1 | |
| 13 | FAN | 1 | |
| 14 | KEYWOODRUFF | 1 | |
| 15 | PULLEY 2 | 2 | |
| 16 | WASHERCLAW (1.0T) UR UN | 1 | |
| 16 | WASHERCLAW (0.5T) UR UN | 1 | |
| 17 | WASHER(JN5) | 1 | |
| 19 | NUT | 1 | |
| 20 | BELT | 1 | |
| 21 | AIR SHROUD CYLINDER 1 | 1 | |
| 22 | SCREW PAN | 2 | |
| 23 | WASHER PLATE (6TA) | 2 | |
| 24 | BOLT HEXAGON | 1 | |
| 25 | WASHERSPRING (5 per pack) | 1 | |
| 27 | AIR SHROUDCYL 2 (USA) | 1 | |
| 30 | LABELCAUTION (USA) | 1 | |
| 31 | DAMPERAIR SHRD 1 | 2 | |
| 32 | DAMPER AIR SHROUD 2 | 1 | |
| 33 | DUCT | 1 | |
| 34 | COLLAR (1RW) | 1 | |
| 35 | COVER FAN CASE | 1 | |
| 36 | DAMPER DUCT 2 | 1 | |
| 37 | DAMPER DUCT 3 | 1 | |
| 38 | PINCOTTER | 6 | |
| 39 | BUSH RUBBER | 1 | |
| 40 | BOLT HEXAGON SOCKET HEAD | 3 | |
| 41 | BOLT WASHER BASED | 1 | |
| 42 | WASHERPLATE | 4 | |
| 44 | STAY 1 | 1 | |
| 49 | PULLEYSTARTER (USA) | 1 | |
| 50 | BOLT | 3 | |
| 52 | PLATE (USA) | 1 | |
| 53 | PINDOWEL | 2 |
