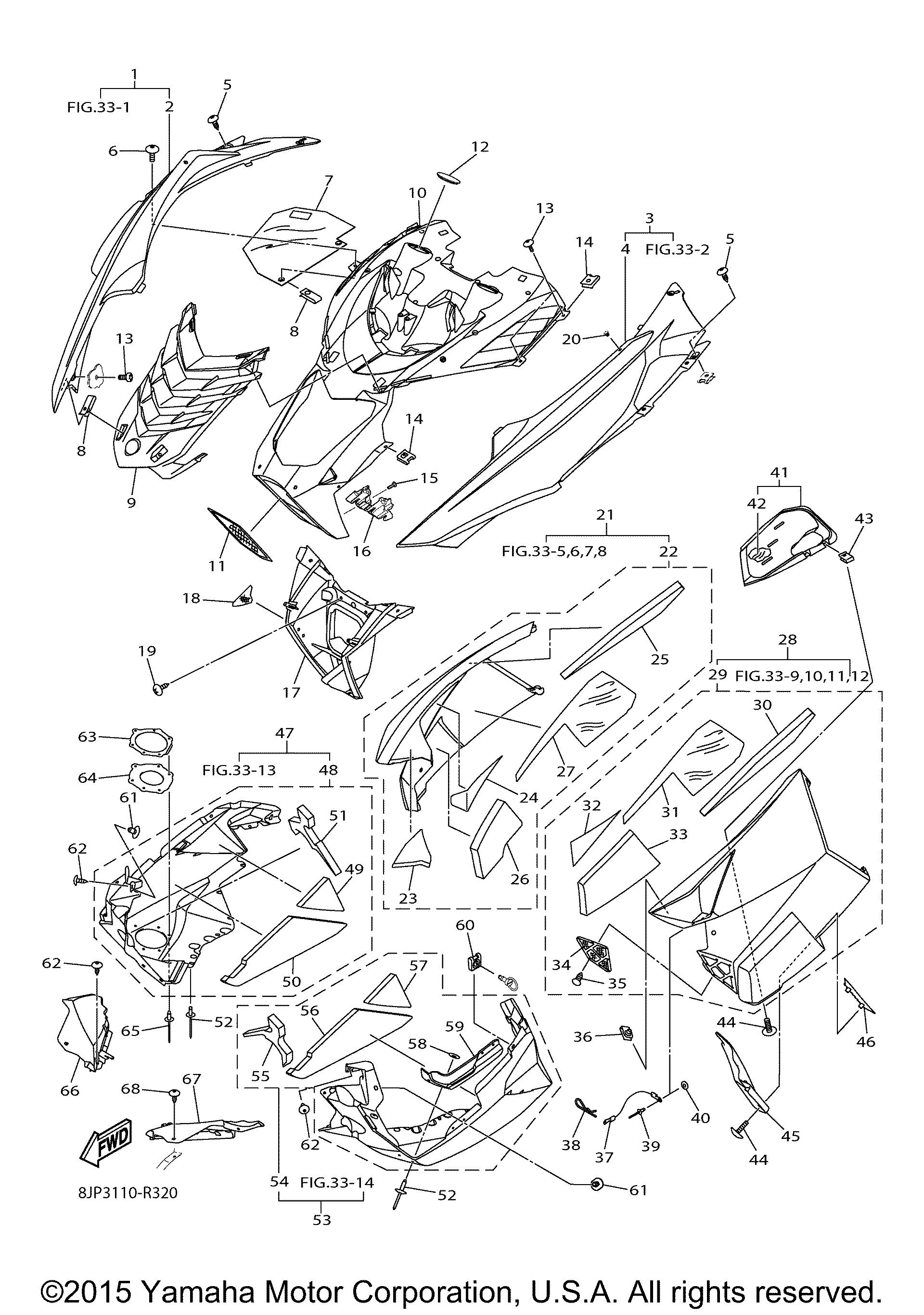

Yamaha SRVIPER L TX LE (SR10LLGW/SR10LLGL) SRVIPER L TX LE (SR10LLGW/SR10LLGL) SHROUD
SHROUD
№ Наименование Примечание Кол-во
1 HOOD ASSY 4 UR FOR BWC1 0
1 HOOD ASSY 4 UR FOR DPBSE 1
2 HOOD 4 1
2 HOOD 2 UR FOR BWC1 0
3 HOOD ASSY 3 UR FOR BWC1 0
3 HOOD ASSY 3 UR FOR DPBSE 1
4 HOOD 3 1
4 HOOD 1 UR FOR BWC1 0
5 SCREW 10-12X3/4 (5 per pack) 6
6 SCREW 10-12X1.00 (5 per pack) 2
7 SHIELD HEAT 1
8 NUT CLIP 10 (6 per pack) 4
9 PANEL CONSOLE 1 1
10 SHROUD 1
11 GRILL FRONT 1
12 CAP PLUG (2 per pack) 2
13 SCREWSELF TAP-TSTRH (10 per pack) 4
14 NUT CLIP 10 (2 per pack) 4
15 SCREW 13 (6 per pack) 2
16 BRACKET 1 1
17 DUCT INTAKE 1
18 TAPE REFLECTOR 2
19 SCREWSELF TAP-TXSTR (5 per pack) 4
20 RIVET 1 (5 per pack) 2
21 SIDE PANEL COMP.(R (R.H) UR FOR DPBSE 1
21 SIDE PANEL COMP.(R (R.H) UR FOR BWC1 0
22 SHELL SIDE PANEL A 1
23 DAMPER NOISE 17 1
24 PROTECTOR 1 1
25 DAMPER NOISE 19 1
26 DAMPER NOISE 18 1
27 PROTECTOR 2 1
28 SIDE PANEL COMP.(L (L.H) UR FOR DPBSE 1
28 SIDE PANEL COMP.(L (L.H) UR FOR BWC1 0
29 SHELL SIDE PANEL A 1
30 DAMPER NOISE 13 1
31 DAMPER NOISE 14 1
32 DAMPER NOISE 15 1
33 DAMPER NOISE 16 1
34 SCREEN 1
35 RIVET 1 (5 per pack) 8
36 NUT CLIP M5 (4 per pack) 1
37 WIRE 2
38 CLIP 5 (5 per pack) 2
39 RIVET 6 (20 per pack) 2
40 WASHER 8X0.375X0. (20 per pack) 2
41 DUCT 1
42 PROTECTOR 3 1
45 DEFLECTOR 1 1
46 DEFLECTOR 2 1
47 HOOD 2 UR FOR DPBSE 1
47 HOOD 2 UR FOR BWC1 0
48 HOOD 4 0
48 HOOD 4 1
49 PROTECTOR 4 1
50 PROTECTOR 5 1
51 PROTECTOR 6 1
52 RIVET 14 (10 per pack) 21
53 HOOD 1 UR FOR BWC1 0
53 HOOD 1 UR FOR DPBSE 1
54 HOOD 3 1
55 PROTECTOR 1 1
56 PROTECTOR 2 1
57 PROTECTOR 3 1
58 WASHERFLAT .194X.50 (4 per pack) 3
59 REINFORCEMENT 1 1
60 NUT CLIP 1/4 2
61 RIVET 4 (2 per pack) 2
63 PLATE 1 1
64 SEAL EXT. 1 1
65 RIVET 21 6
66 PATCH 2 1
67 PATCH 1 1
