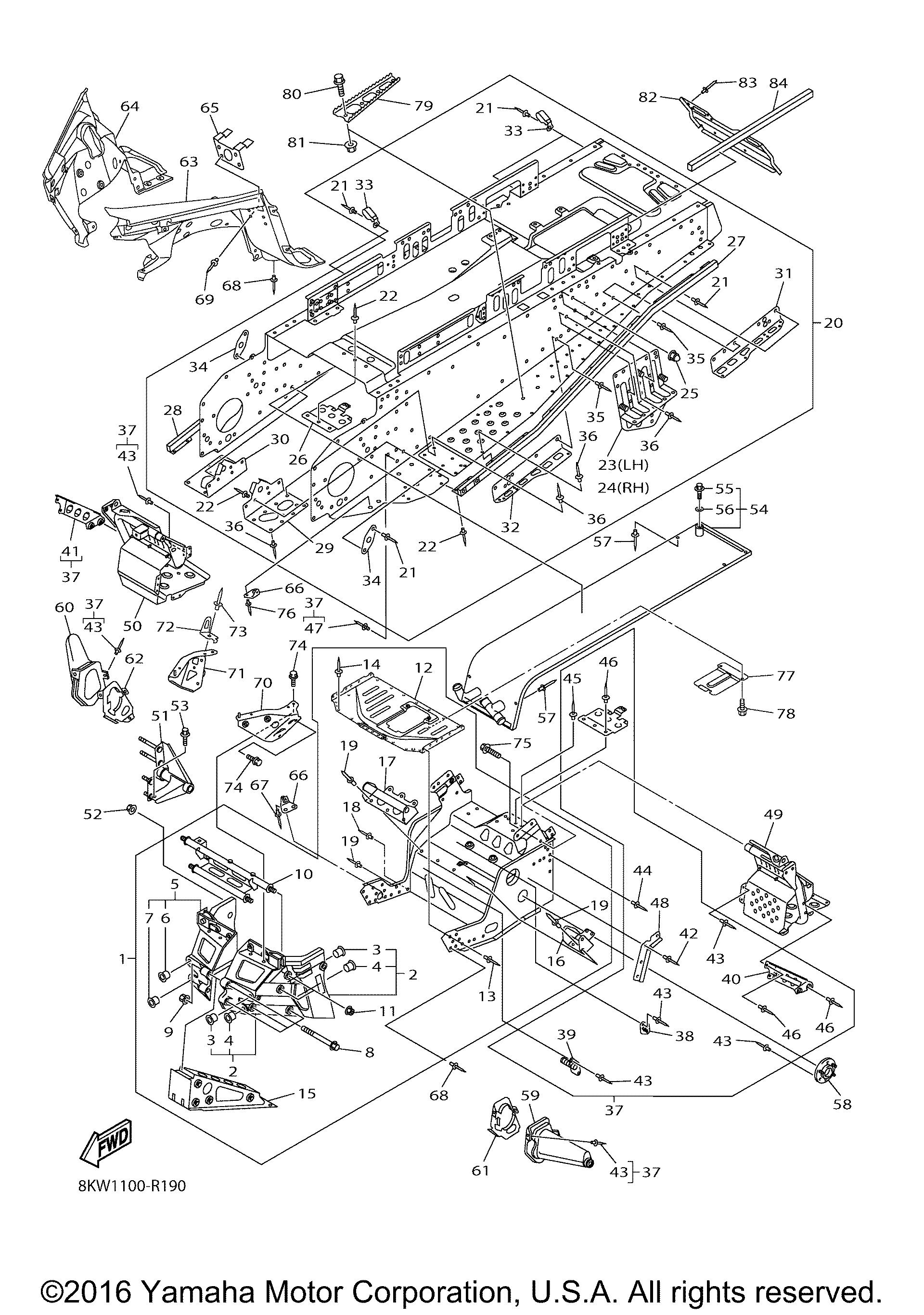

Yamaha VK PROFESSIONAL II (VK10FGV/VK10FGS) VK PROFESSIONAL II (VK10FGV/VK10FGS) FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 BUSH SOLID 2
4 BUSH SOLID 2
5 BULKHEAD 2 1
8 BOLT FLANGE 4
9 NUT SELF LOCKING 4
10 BRACKET STEERING 1 1
11 NUTSELF-LOCKING 4
12 PROTECTOR 1
13 RIVET BLIND (4.7X16.4 YELLOW) 48
14 RIVET BLIND 21
15 REINFORCEMENT FRAME 1
16 BRACKET ENGINE 2 1
17 BRACKET ENGINE 3 1
18 RIVET BLIND (4.8X17 YELLOW) 3
19 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 12
20 REAR FRAME COMP. 1
21 RIVET BLIND (4.8X12.1 YELLOW) 41
23 BRACKETRR.TRACK SUS 1
24 BRACKETRR.TRACK SUS 1
25 NUTCROWN 6
26 PROTECTOR MUFFLER 1
27 REINFORCEMENT FOOTR 1
28 REINFORCEMENT FOOTR 1
29 BRACKET MAIN TRACK 1
30 BRACKET MAIN TRACK 1
31 PATCH 2 2
32 PATCH 3 2
33 CLAMP (51Y) 7
34 BRACKET MAIN TRACK 2
35 RIVET BLIND (4.8X12.1 BLACK) 52
36 RIVET BLIND (4.8X14 BLACK) 78
37 FRAME CONNECTION KIT 1
38 BRACKET CHAIN HOUSI 1
39 BRACKET CHAIN HOUSI 1
40 BRACKET 5 1
41 BRACKET 6 1
42 RIVET BLIND (4.8X18.6 BLACK) 4
48 CLAMP WIREHARNESS 1
49 FOOTREST COMP. 1 1
50 FOOTREST COMP. 2 1
51 BRACKET ENGINE 1
52 NUTU 2
53 BOLTFLANGE (3HP) 1
54 HEAT EXCHANGER ASSY 1
55 BOLTFLANGE 1
56 WASHERSEAL 1
58 HOUSING REINF SUB-A (L.H) 1
59 COVER 1 1
60 COVER 3 1
61 PLATE STRG BRACKET 1
62 PLATE STRG BRACKET 1
63 FRAME UNDER 1 1
64 FRAME UNDER 2 1
65 BRACKET GUARD FITTI 1
66 BRACKET 3 6
67 RIVETBLIND (4.8X15.2 SILVER) 8
69 RIVETBLIND (4.7X16.4 BLACK) 4
70 BRACKET FRONT 1
71 BRACKET FRONT BUMPE 1
72 STAY 1 2
74 BOLTFLANGE 6
75 BOLTFLANGE(8AB) 2
76 RIVET BLIND (5 per pack) 4
77 PROTECTOR FRAME FR 1
78 BOLT BUTTON HEAD 2
79 FOOTREST REAR 1 2
80 BOLT FLANGE 8
81 NUTFLANGE (4MV) 8
82 REINFORCEMENT FRAME 1
84 SEAL 5 1
