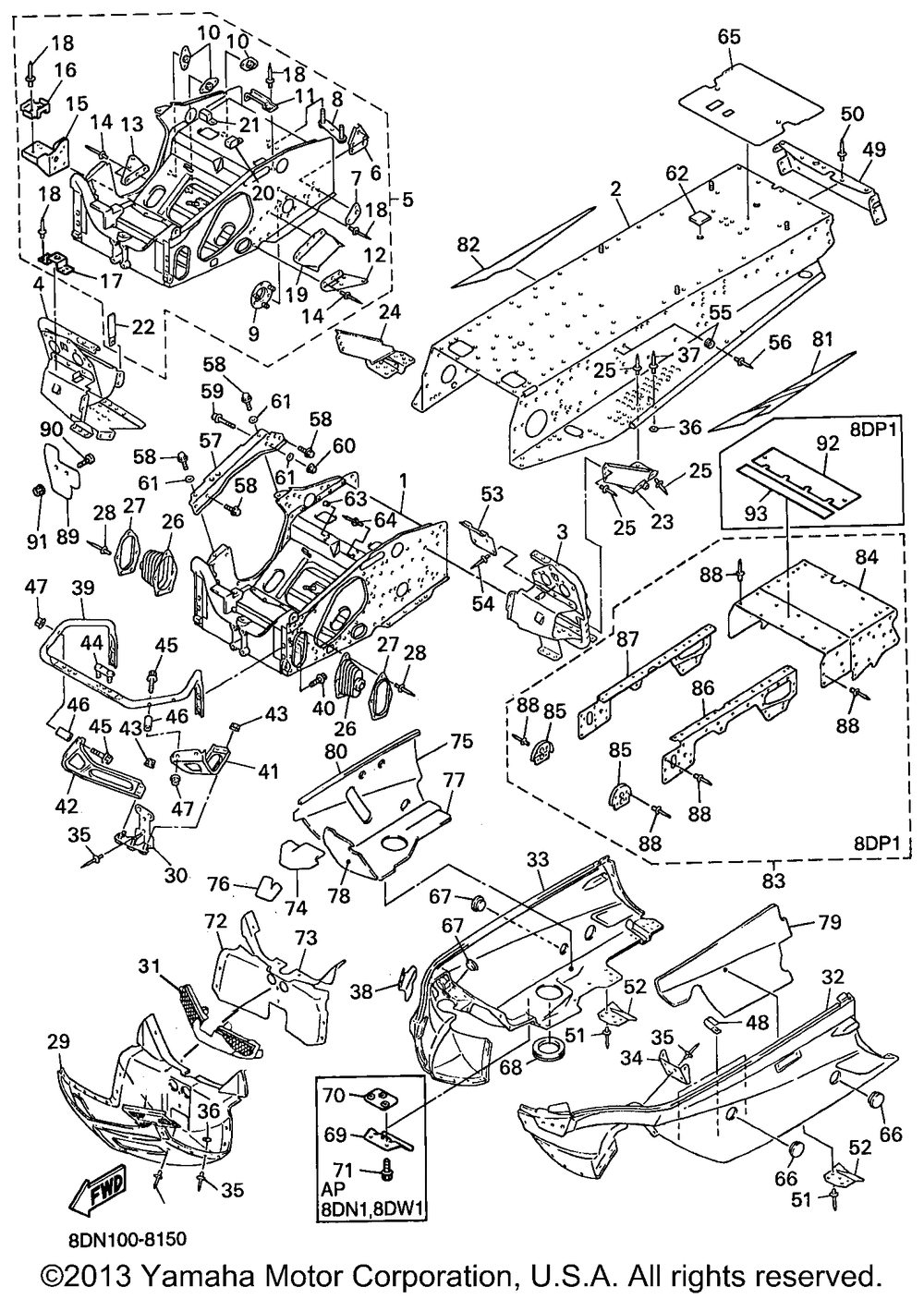

Yamaha SRX700 SRX700B/MSRX700PB/SRX700SB SRX700 SRX700B/MSRX700PB/SRX700SB FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP 1
2 REAR FRAME COMP. 1
3 FOOTREST COMP 1 1
4 FOOTREST COMP 2 1
5 FRAME CONNECTION K 1
6 BRACKET MAIN TRACK 2
7 BRKT MTRK SUSP2 2
8 BRKT 3 1
9 HSG.REINF SUBASSY3 (L.H) (USA) 1
10 BRKT CHAIN HSG 3
11 CLAMP. FUEL PIPE (USA) 2
12 PANEL SUBFRAME 6 (USA) 1
13 PANEL SUBFRAME 7 (USA) 1
14 RIVET BLIND (4.8X17 YELLOW) 4
15 STAY MUFFLER 1
16 BRACKET 6 1
17 STAY MUFFLER 1
18 RIVET BLIND 1
19 COVER 2 1
20 CLAMP 1
21 CLAMP 1
22 CLAMP 1
23 PIPE PIVOT 1 1
24 PIPE PIVOT 2 1
25 RIVET 16
26 COVER 1 (USA) 2
27 PLATE STRG.BRKL1 2
28 RIVET BLIND (5 per pack) 10
29 PANEL SUB FRAME 1 1
30 PLATE BACK UP (USA) 1
31 LOUVER LOWER 1
32 FRAME UNDER 1 1
33 FRAME UNDER 2 MSRX700PB 1
33 FRAME UNDER 2 1
34 BRACKET GUARD FIT (USA) 1
35 RIVET BLIND 37
36 WASHERPLATE 18
37 RIVETBLIND (4.7X16.4 BLACK) 14
38 BRACKET COOLER 1 1
39 BUMPER FRONT 2 (USA) 1
40 BOLTFLANGE(8AB) 4
41 BRACKET FRONT (USA) 1
42 BRACKET FRONT BUMPE (USA) 1
43 NUT SELF LOCKING 4
44 BRACKET 5 (USA) 2
45 BOLT FLANGE (USA) 4
46 COLLAR (USA) 4
47 Гайка с фланцем 4
48 CLAMP 3
49 REINFORCEMENT FR 1
52 PROTECTORFRAME 2
53 HOOK 1
54 RIVET BLIND 3
55 BUTTON 4
56 RIVET BLIND (81K) 4
57 REINEFORCEMENT FR 1
58 BOLT FLANGE 6
59 BOLT 1
60 NUTFLANGE (8AB) 1
61 WASHER 3
62 COVER MM700 1
63 PLUGSPEC'L SHAPE 2
64 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 3
65 SEAL 1
66 PLUGSPEC'L SHAPE 3
67 PLUGSPEC'L SHAPE 3
68 SPACER 1
69 PROTECTOR FRAME 3 AP 1
70 PATCH 10 AP 1
71 BOLT WASHER BASED 3
72 LININGSHROUD 2 1
73 LININGSHROUD 3 (USA) 1
74 LINING SHROUD 5 1
75 LINING SHROUD 7 1
76 LININGSHROUD 8 1
77 LININGSHROUD 9 1
78 LINING SHROUD 4 1
79 DAMPER NOISE 11 1
80 TAPE5 1
81 EMBLEM 1 1
81 EMBLEM 1 MSRX700PB 1
82 EMBLEM 2 1
82 EMBLEM 2 MSRX700PB 1
83 PANEL SUB-FRAME KIT MSRX700PB 1
84 panel sub frame 5 MSRX700PB 1
85 BRKT MAIN TRK SUS 2
86 PATCH 4 UR VT700 1
87 PATCH 5 UR VT700 1
89 COVER TOE HOOK 1
90 BOLT SOCKET 2
91 NUTFLANGE (4MV) 2
92 EMBLEM 1 MSRX700PB 1
93 LABELWARNING 2 (USA) 1
