Yamaha VMAX-4 800 VX800A VMAX-4 800 VX800A CARBURETOR

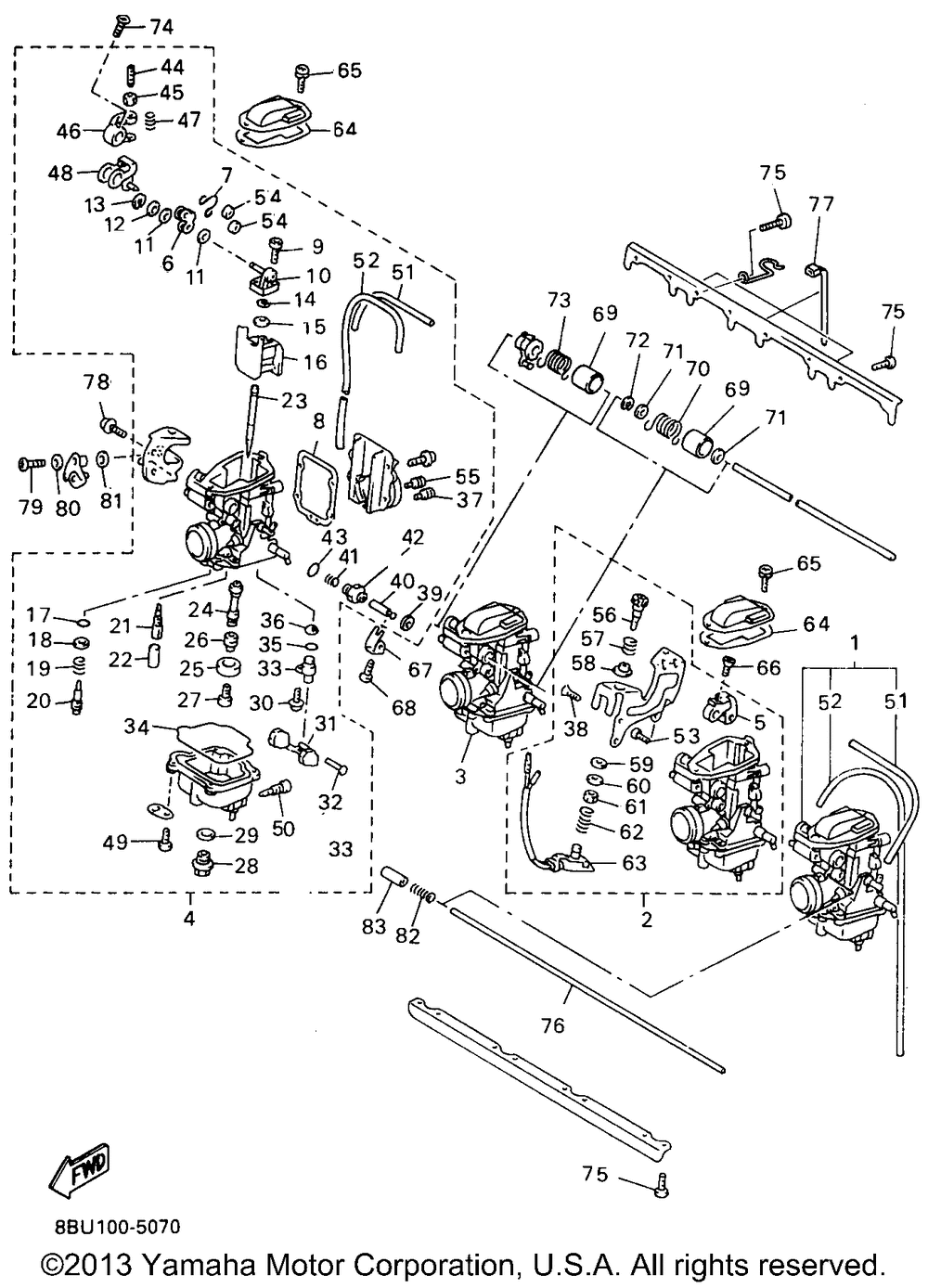

CARBURETOR
№ Наименование Примечание Кол-во
1 CARBURETOR ASSY 1 1
2 CARBURETOR ASSY 2 1
3 CARBURETOR ASSY 3 1
4 CARBURETOR ASSY 4 1
5 BRACKET 1
6 PLATE 1
7 CLIP 1
8 GASKET 1
9 BOLT (8CD) (91316-03012-00 ) 2
10 CONNECTOR 1
11 GASKET 2
12 GASKET 1
13 CLIP 1
14 CLIP 1
15 WASHERNEEDLE 1
16 VALVE THROTTLE 1
17 O-RING 1
18 WASHER 1
19 SPRING AIR ADJ 1
20 SCREW PILOT ADJUSTI 1
21 JET PILOT tahos_47.5 (tahos_47.5) AP 1
21 JETPILOT tahos_55 ( 55) AP 1
22 PIPE 1
23 NEEDLE 1
24 NOZZLE MAIN VT700C STD(tahos_23CYL.) 1
25 WASHER MAIN JET 1
26 RING 1
27 JET MAIN tahos_138.8 (tahos_138.8) AP 1
27 JETMAIN(tahos_141.3) (tahos_141.3) AP 1
27 JET MAIN tahos_143.8 (tahos_143.8) AP 1
27 JET MAIN tahos_148.8 (tahos_148.8) AP 1
27 JET MAIN tahos_133.8 (tahos_133.8) AP 1
27 JET MAIN tahos_131.3 (tahos_131.3) AP 1
27 JET MAIN tahos_136.3 (tahos_136.3) AP 1
27 MAIN JET tahos_146.3 (tahos_146.3) AP 1
28 PLUGSCREW 1
29 O-RING 1
30 SCREW STOP (5 per pack) 1
31 FLOAT 1
32 PINFLOAT 1
33 NEEDLE VALVE ASY 1
34 O-RING 1
35 O-RING 1
36 NETFILTER 1
37 PILOT JET AIRtahos_0.0 1
38 SCREWFLAT HEAD 1
39 COVER PLUNGER CAP 1
40 PLUNGERSTARTER 1
41 SPRING PLUNGER 1
42 CAP PLUNGER 1
43 O-RING 1
44 SCREW tahos_1 3 1
45 NUT 1
46 LEVER tahos_1 3 1
47 SPRING tahos_1 3 1
48 LEVER STARTER tahos_1 3 1
49 SCREW PAN HEAD 4
50 PLUGDRAIN 1
51 HOSE (USA) 1
52 HOSE 1
53 SCREWPAN HEAD 1
54 RING 2
55 PILOT JETAIR tahos_1.0 (1.0) 1
56 SCREWTHROTTLE (USA) 1
57 SPRING 1
58 COLLAR (USA) 1
59 WASHERPLUG SCREW 1
60 WASHER 1
61 NUT 1
62 SPRINGTHRTL STOP 1
63 SWITCH CARBURETOR (USA) 1
64 GASKET 4
65 SCREW PAN HEAD 8
66 SCREWFLAT UR (tahos_1) REAR 1
67 LEVER COMP. 1 4
68 SCREW 4
69 COLLAR 2
70 SPRING 1
71 WASHER 2
72 CLIP 1
73 SPRING 1
74 SCREWPAN HEAD 3
75 SCREWPANHEAD 16
76 SHAFT STARTER LEV 1
77 CLIPPIPE 3
78 SCREWPAN HEAD(3SX 1
79 PLUGSCREW 1
81 WASHER 1
82 SPRING PLUNGER 2
83 CAP 1
