Yamaha VMAX 500 VX500W VMAX 500 VX500W CARBURETOR

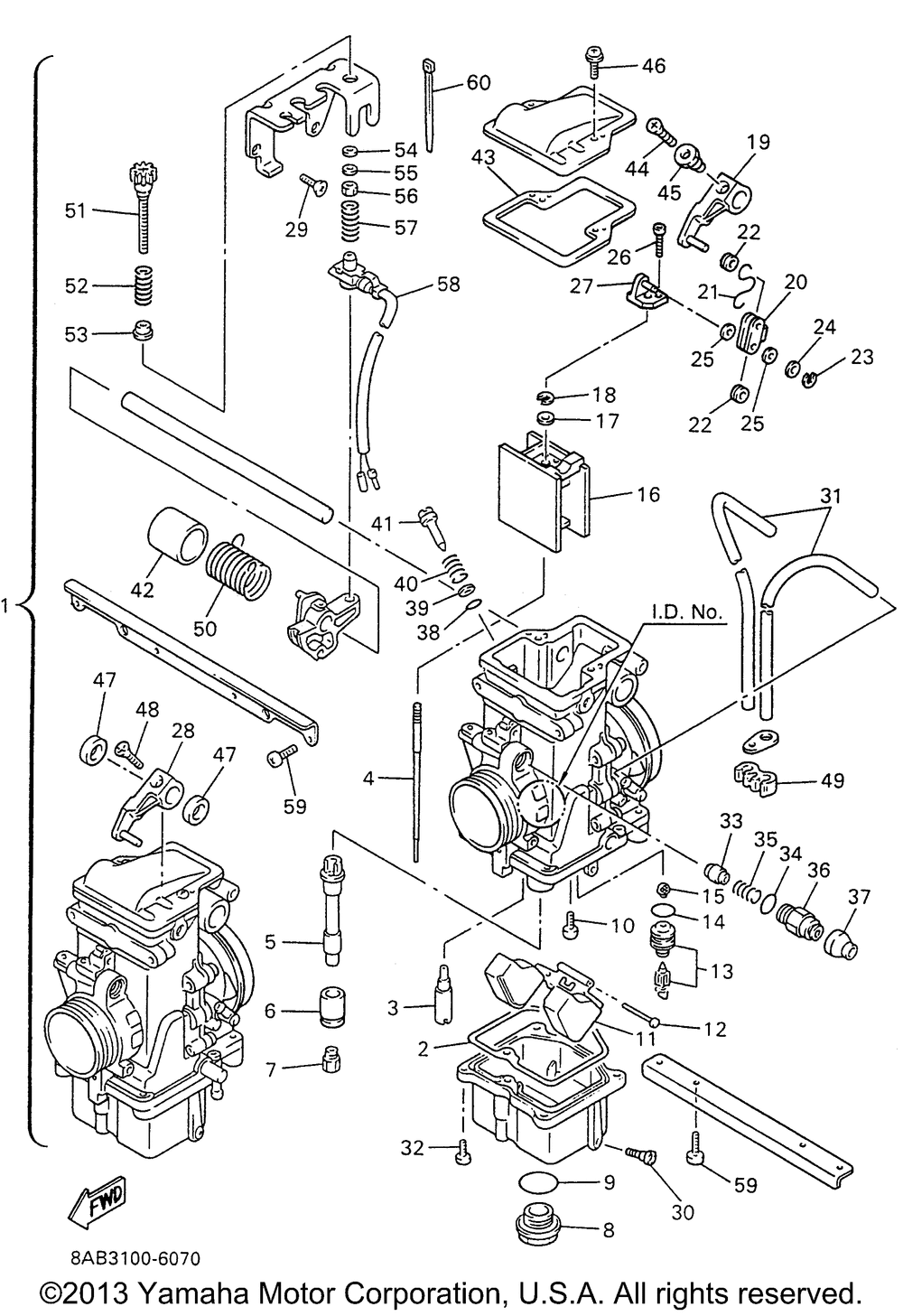

CARBURETOR
№ Наименование Примечание Кол-во
1 CARBURETOR ASSY 1
2 O-RING (USA) 2
3 JETPILOT tahos_50 ( 50) AP 2
3 JET PILOT tahos_45 ( 45) STD 2
4 NEEDLE 2
5 NOZZLEMAIN (USA) 2
6 RING 2
7 JETMAIN(tahos_137.5) (tahos_137.5) UR FRONT 2
7 MAIN JET tahos_146.3 (tahos_146.3) AP 2
7 JET MAIN tahos_148.8 (tahos_148.8) AP 2
7 JET MAIN tahos_151.3 (tahos_151.3) AP 2
7 JET MAIN tahos_143.8 (tahos_143.8) AP 2
7 JET MAIN tahos_153.8 (tahos_153.8) 2
7 JET MAIN tahos_156.3 (tahos_156.3) STD 2
7 JETMAIN tahos_140 (tahos_140) 2
8 PLUGSCREW 2
9 O-RING 2
10 SCREW STOP (5 per pack) 2
11 FLOAT (USA) 2
12 PINFLOAT 2
13 NEEDLE VALVE ASSY (USA) 2
14 O-RING 2
15 NETFILTER 2
16 VALVETHROTTLE 1 2
17 WASHER (T=0.8MM) UR STD8AB-14227-00-00. WASHER (T=0.4MM) 2UR AP 2
18 CLIP 2
19 LEVERSTARTER 1
20 PLATE (USA) 2
21 CLIP (USA) 2
22 RING 4
23 CLIP 2
24 GASKET 2
25 GASKET 4
26 BOLT (8CD) (91316-03012-00 ) 2
27 CONNECTOR (USA) 2
28 LEVERSTARTER 1
29 SCREWFLAT 1
30 PLUGDRAIN 2
31 HOSE 4
32 SCREW PAN HEAD 8
33 PLUNGERSTARTER 2
34 O-RING 2
35 SPRINGPLUNGER 2
36 HOLDER 2
37 COVERPLUNGER CAP 2
38 O-RING 2
39 WASHER 2
40 SPRINGAIR ADJ 2
41 SCREWAIR ADJ 2
42 COLLAR (USA) 1
43 GASKET (USA) 2
44 SCREWFLAT HEAD 1
45 RING (USA) 1
46 SCREW PAN HEAD W/W 4
47 COLLAR 2
48 SCREWFLAT HEAD 1
49 CLIP 2
50 SPRING VX600C 1
51 SCREWTHROTTLE 1
52 SPRING 1
53 COLLAR 1
54 WASHERPLUG SCREW 1
55 WASHER 1
56 NUT 1
57 SPRINGTHRTL STOP 1
58 SWITCH CARBURETOR (USA) 1
59 SCREWPAN HEAD (5 per pack) 8
60 CLIPPIPE 3
