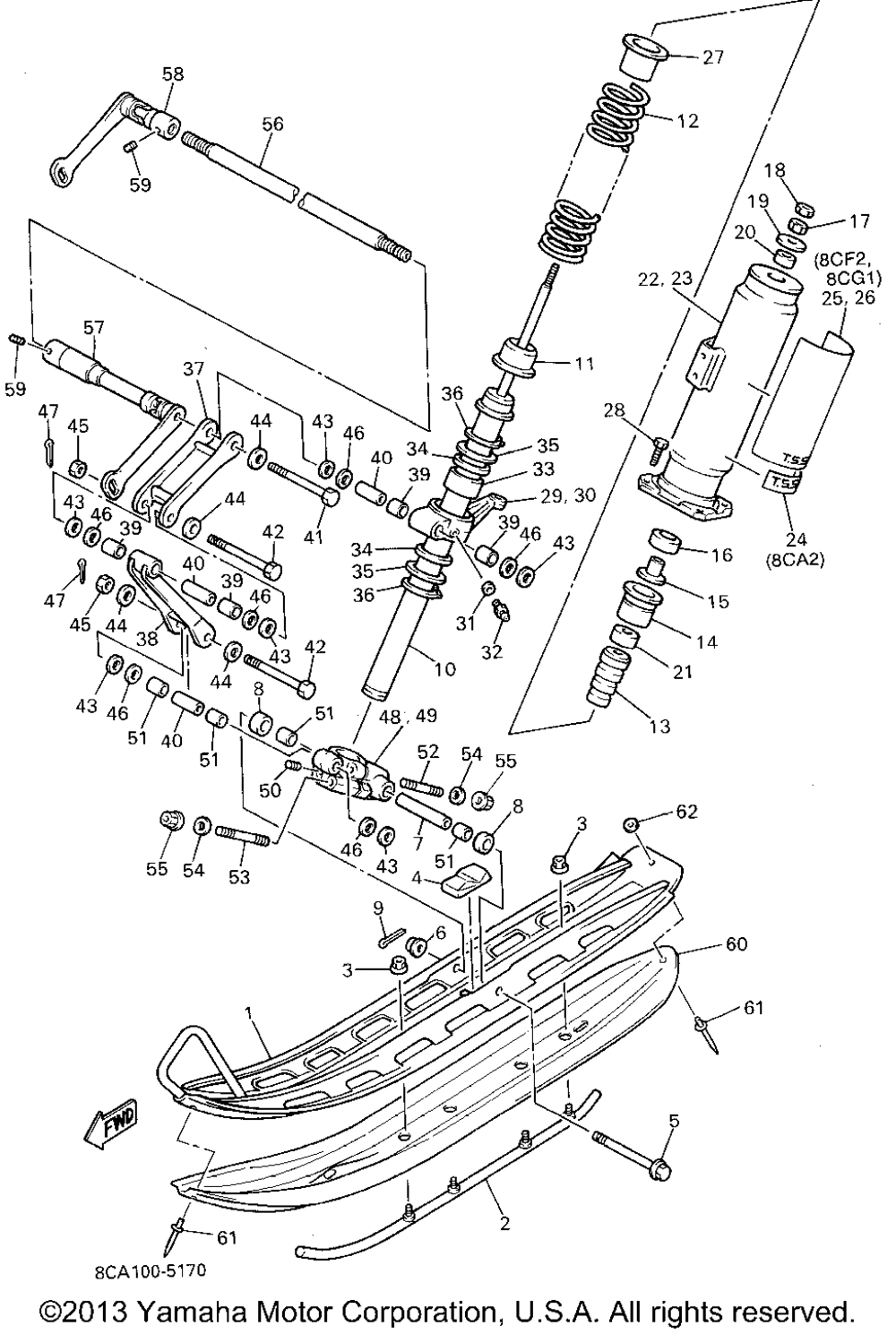

Yamaha VMAX 600 VX600V/VX600EV/VX600STV/VX600DXV VMAX 600 VX600V/VX600EV/VX600STV/VX600DXV SKI
SKI
№ Наименование Примечание Кол-во
1 SKI 1 2
2 RUNNER 1 (8CM-23731-00-00) UR 2
3 NUT SELF LOCKING 8
4 STOPPER 1 2
5 BOLTWASHER BASED 2
6 NUTSELF-LOCKING 2
7 COLLAR 2
8 COLLAR 4
9 PINCOTTER 2
10 DAMPER SUB-ASY UR 2
11 SEATSPRING 2 2
12 SPRING COMPRESSN 2
12 SPRING COMPRESSION UR 2
12 SPRINGCOMPRESSION UR STD 2
13 BUMPSTOP 2
14 PLATE BACK UP 2
15 COLLAR 2
16 WASHER 2
17 NUTHEXAGON 2
18 NUT (6L2) 2
19 WASHERPLATE 2
20 COLLAR 2
21 COLLAR 2
22 HOLDERABSORBER UR FOR BLACK 1
22 HOLDERABSORBER UR FOR RED 1
23 HOLDERABSORBER 2 UR FOR BLACK 1
23 HOLDERABSORBER 2 UR FOR RED 1
24 EMBLEM 15 2
24 EMBLEM 15 2
25 EMBLEM 15 1
26 EMBLEM 15 1
27 PROTECTOR UR 2
27 PROTECTOR (TSS) UR 2
28 BOLT HEXAGON 8
29 ARMOUTSIDE 1 (LH) 1
30 ARMOUTSIDE 2 (R H) 1
31 WASHERPLATE 2
32 NIPPLEGREASE 2
33 BUSHBIMETAL FORM 2
34 OIL SEALSDO-TYPE 4
35 WASHERPLATE (T=2.0) UR UN 4
35 WASHERPLATE (T=1.0) UR UN 4
36 CIRCLIPS-TYPE 4
37 ARMFRONT 1 2
38 ARMFRONT 2 2
39 ВТУЛКА (BUSH, BIMETAL FORMED (8L0)) (10216170/050919/0161719, ЯПОНИЯ) 8
40 COLLAR 6
41 BOLT 2
42 BOLTWITH HOLE 4
43 WASHERPLATE 12
44 WASHERPLATE 8
45 NUTSELF-LOCKING 4
46 WASHERSPEC'L SHAP (5 per pack) 12
48 BRACKET1 1
49 BRACKET 2 1
50 BOLTSET 2
52 BOLTSTUD 3 2
53 BOLTSTUD 3 4 2
54 WASHER 4
55 NUTLOCK (USA) 4
56 BARSTABLZR FRONT 1
57 JOINT STABILIZER 1
58 JOINT STABILIZER2 1
60 RUNNER 2 2
61 RIVET BLIND 4
62 WASHER PLATE (90201-04325-00 ) 2
