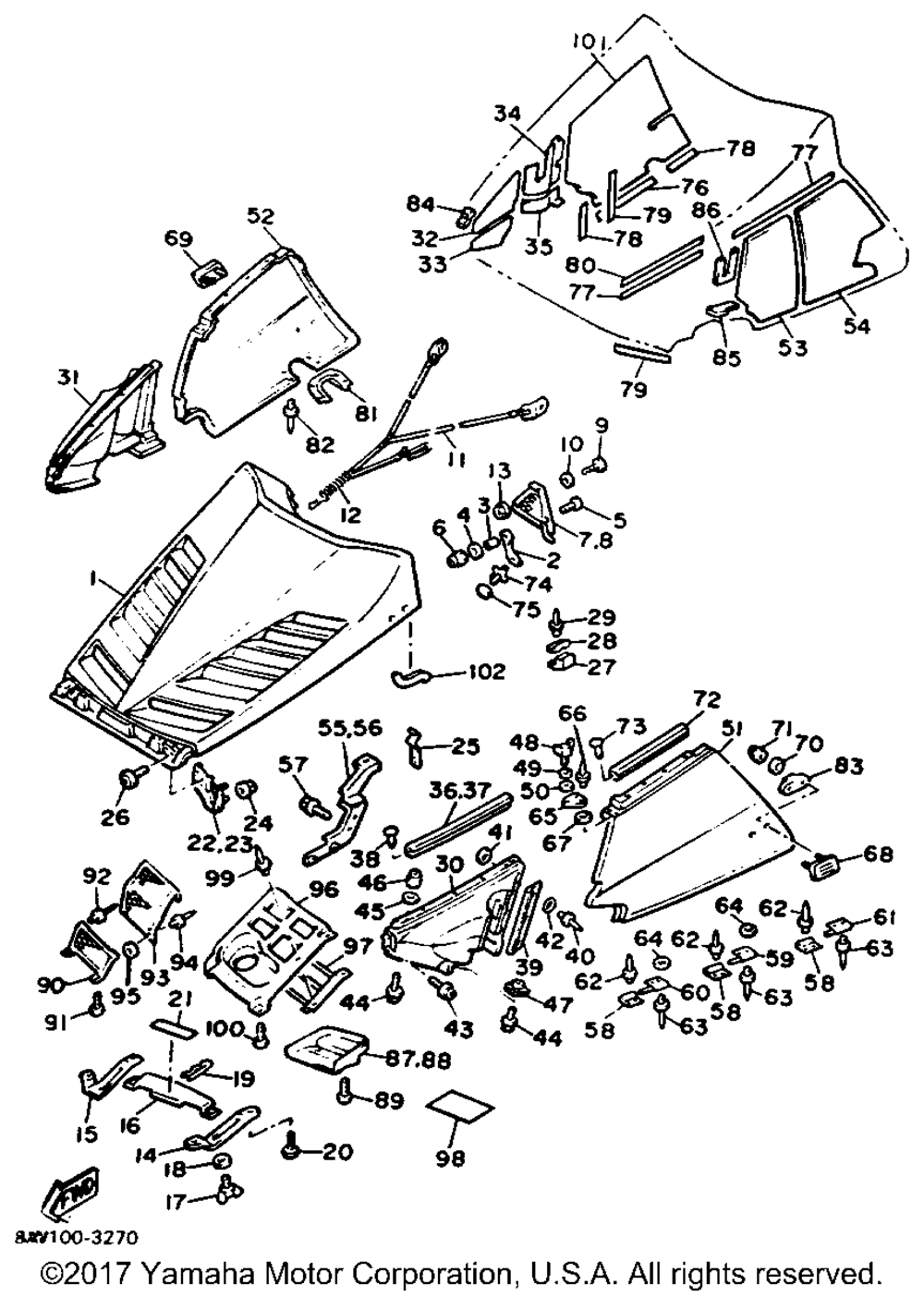

Yamaha EXCITER II LE (ELEC START) EX570ET EXCITER II LE (ELEC START) EX570ET SHROUD
SHROUD
№ Наименование Примечание Кол-во
1 SHROUD ASY YAMAHA BLACK 1
2 BODYLATCH 1 2
3 COLLAR 2
4 WASHERPLATE 2
5 BOLTSOCKET 2
6 NUT FLANGE 2
7 PROTECTOR 5 1
8 PROTECTOR 6 1
9 BOLTSOCKET 2
10 WASHERPLATE (5 per pack) 4
11 STOPPERSHROUD 1
12 CLAMPROD (USA) 1
14 STAY 1 1
15 STAY 2 1
16 LOUVER 1 1
17 BOLTWING 2
18 WASHER (5 per pack) 2
19 CLIP 2
20 SCREW TRUSS 4
21 LABELWARNING 2 UR 1
22 HINGE ASY 1
23 HINGE ASY 2 1
25 BRACKETTL BX FTNG 1
26 SCREWWITH WASHER 4
27 STOPPER 2
28 WASHER SPECIAL 2
29 RIVETBLIND 4
30 HOOD 1 1
31 HOOD 2 1
32 LININGSHROUD 2 1
33 LINING SHROUD 3 1
34 LININGSHROUD 4 1
35 LININGSHROUD 5 1
36 BUSH RUBBER 1 1
37 BUSHRUBBER 1 1
38 RIVETSPEC'L SHAPE (5 per pack) 10
39 TRIM 1 2
40 RIVETBLIND 6
41 WASHERPLATE 6
42 WASHERPLATE 6
43 SCREWWITH WASHER (5 per pack) 4
44 BOLT WITH WASHER 6
45 WASHER (6TA) 2
46 NUTFLANGE 2
47 NUT 2
48 BOLTWING 2
49 WASHER PLATE 2
50 WASHERPLATE 2
51 HOOD 3 UR FOR RR 1
52 HOOD 4 1
53 DAMPERNOISE 14 1
54 DAMPERNOISE 15 1
55 BRACKET 3 1
56 BRACKET4 1
57 BOLT FLANGE 4
58 BRACKET 1 6
59 BRACKET 2 2
60 BRACKET 2 2
61 BRACKET 3 2
62 RIVETBLIND (4.8X12.3) 12
63 RIVETBLIND UN 12
64 WASHER PLATE 8
65 STAY 3 2
66 RIVETBLIND 4
68 PROTECTOR 1 1
69 PROTECTOR 2 1
70 WASHERPLATE (5 per pack) 4
71 NUT FLANGE (4GB) 4
72 BUSH RUBBER 2 2
74 HOLDERLATCH 2
75 PLATE 2
76 TAPE 1 1
77 TAPE 2 2
78 TAPE 3 2
79 TAPE 3 2
80 TAPE 1 1
81 PATCH 10 1
82 RIVETBLIND (5 per pack) 4
83 DAMPER 1 2
84 TAPE 4 2
85 TAPE5 1
86 DAMPERNOISE 18 1
87 PLATE 1 1
88 PLATE 2 1
90 SHIELD 1 1
92 RIVET BLIND 2
93 PROTECTOR 7 1
94 RIVETBLIND (4.8X15.1 BLACK) 4
95 WASHERPLATE (5 per pack) 2
96 DUCT 1
97 STAY 3 1
98 ELEMENTAIR CLNR 1
101 LININGSHROUD 6 1
102 TRIM UPPER 2
