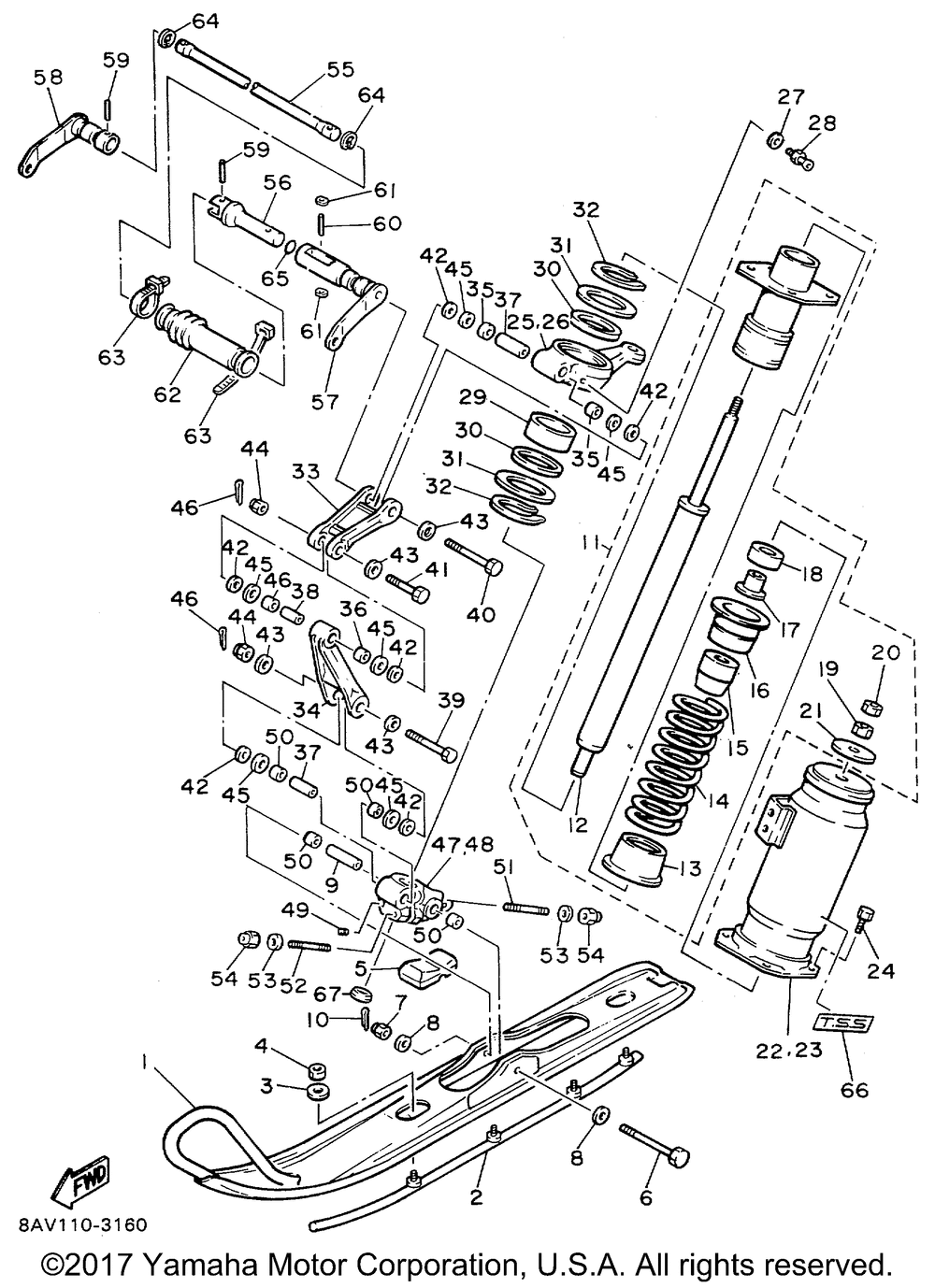

Yamaha EXCITER II LE (ELEC START) EX570ET EXCITER II LE (ELEC START) EX570ET SKI
SKI
№ Наименование Примечание Кол-во
1 SKI 1 (88F-23710-00-00) 2
2 RUNNER 1 SKI 1
3 WASHER (5 per pack) 8
4 NUTU 8
5 STOPPER 1 2
6 BOLTWITH HOLE 2
7 NUTNYLON 2
8 WASHERPLATE 4
9 COLLAR 2
10 PINCOTTER 2
11 ABSORBER ASY 1 2
12 DAMPER SUB ASY 1
13 SEATSPRING 2 1
14 SPRINGCOMPRESSION 1
15 BUMPSTOP 1
16 PLATE BACK UP 1
17 COLLAR 1
18 WASHER 1
19 NUTHEXAGON 1
20 NUT (6L2) 1
21 WASHERPLATE 1
22 HOLDERABSORBER (LH) 1
23 HOLDERABSORBER 2 (RH) 1
24 BOLT HEXAGON 8
25 ARMOUTSIDE 1 (LH) 1
26 ARMOUTSIDE 2 (R H) 1
27 WASHERPLATE 2
28 NIPPLEGREASE 2
29 BUSHBIMETAL FORM 2
30 OIL SEALSDO-TYPE 4
31 WASHERPLATE (T=1.0) UR UN 4
31 WASHERPLATE (T=2.0) UR UN 4
32 CIRCLIPS-TYPE 4
33 ARMFRONT 1 2
34 ARMFRONT 2 2
35 ВТУЛКА (BUSH, BIMETAL FORMED (8L0)) (10216170/050919/0161719, ЯПОНИЯ) 4
36 Втулка (BUSH, BIMETAL FORMED (8L0)) (10005030/220119/0001962, ЯПОНИЯ) 4
37 COLLAR 4
38 COLLAR 2
39 BOLTWITH HOLE 2
40 BOLT 2
41 BOLTWITH HOLE 2
42 WASHERPLATE 12
43 WASHERPLATE 8
45 WASHERSPEC'L SHAP (5 per pack) 12
47 BRACKET1 1
48 BRACKET 2 1
49 BOLTSET 2
51 BOLTSTUD 3 2
52 BOLTSTUD 3 2
53 WASHER (5 per pack) 4
54 NUTLOCK 4
55 BARSTABLIZR FRT AP 1
56 LINKSTABLZR FRONT AP 1
57 JOINTSTABILIZER 1 1
58 JOINTSTABILIZER 2 1
59 PIN DOWEL AP (5 per pack) 2
60 PINDOWEL AP (5 per pack) 1
61 SLIDER AP 2
62 COVERSTABLZR FRT AP 1
63 Хомут 2
64 CIRCLIPS-TYPE 2
65 O-RING (82M) AP 1
66 EMBLEM 15 2
66 EMBLEM 15 2
67 CAP 1 2
