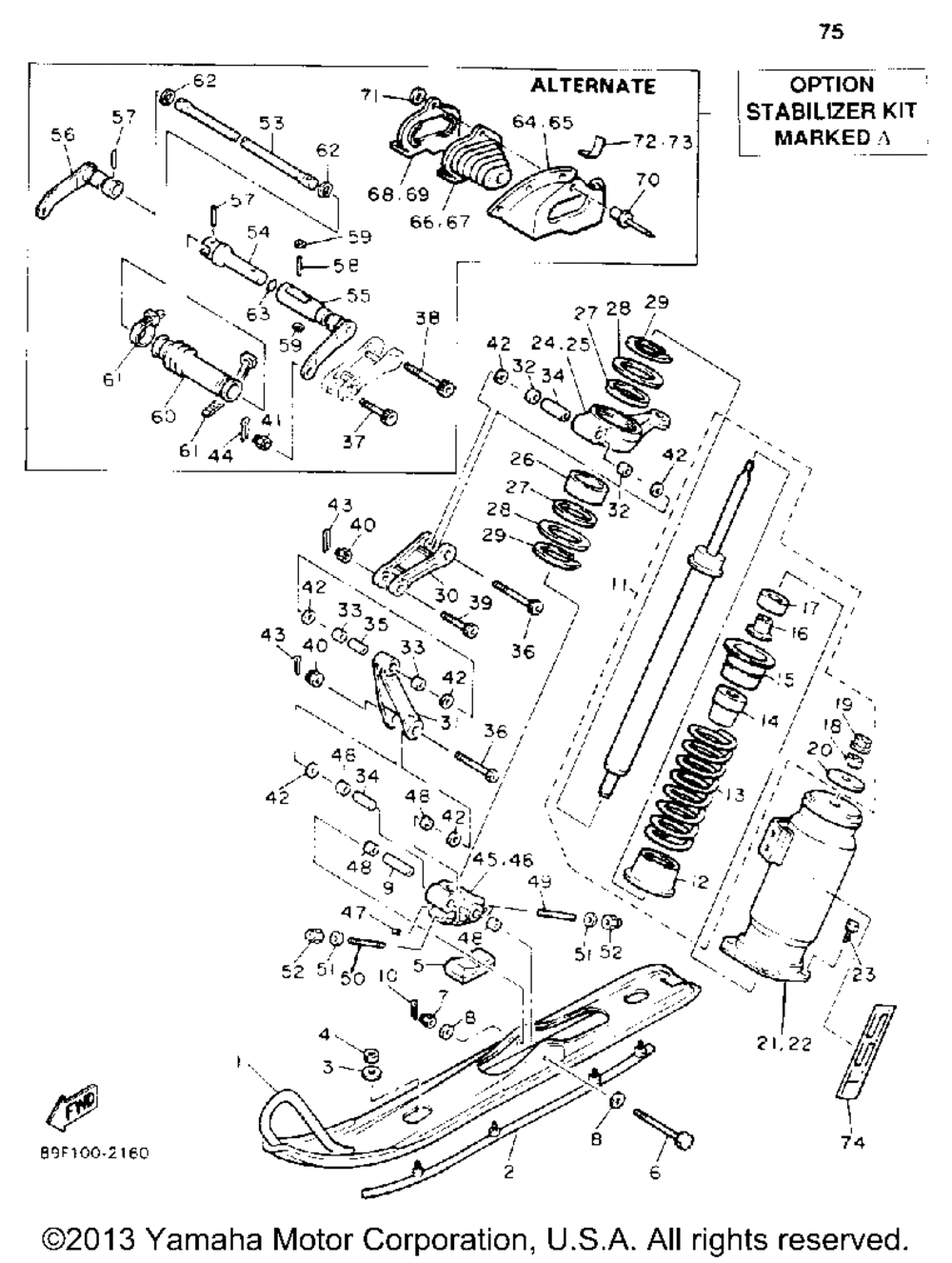

Yamaha PHAZER II LE (ELEC START) PZ480ET PHAZER II LE (ELEC START) PZ480ET SKI
SKI
№ Наименование Примечание Кол-во
1 SKI 1 (88F-23710-00-00) 2
2 SKI RUNNER1 (8M6-23731-01-00) 2
3 WASHER (5 per pack) 8
4 NUTU 8
5 STOPPER 1 2
6 BOLTWITH HOLE 2
7 NUTNYLON 2
8 WASHER (6TA) 4
9 COLLAR 2
10 PINCOTTER 2
11 ABSORBER ASY 1 (USA) 2
12 SEATSPRING 2 1
13 SPRINGCOMPRESSION (USA) 1
14 BUMPSTOP (USA) 1
15 PLATE BACK UP 1
16 COLLAR 1
17 WASHER 1
18 NUTHEXAGON 1
19 NUT (6L2) 1
20 WASHERPLATE 1
21 HOLDERABSORBER (L.H) 1
21 HOLDERABSORBER (LH) 1
22 HOLDERABSORBER 2 (RH) 1
22 HOLDERABSORBER 2 (R.H) 1
23 BOLT HEXAGON 8
24 ARMOUTSIDE 1 (USA) 1
25 ARMOUTSIDE 2 (USA) 1
26 BUSHBIMETAL FORM 2
27 OIL SEALSDO-TYPE 4
28 WASHERPLATE (T=1.0) UR UN 4
28 WASHERPLATE (T=2.0) UR UN 4
29 CIRCLIPS-TYPE 4
30 ARMFRONT 1 2
31 ARMFRONT 2 2
32 ВТУЛКА (BUSH, BIMETAL FORMED (8L0)) (10216170/050919/0161719, ЯПОНИЯ) 4
33 Втулка (BUSH, BIMETAL FORMED (8L0)) (10005030/220119/0001962, ЯПОНИЯ) 4
34 COLLAR 4
35 COLLAR 2
36 BOLTWITH HOLE 4
37 BOLTHEX SOCKET HD AP 2
38 BOLTHEX SKT HEAD AP 2
39 BOLTHEX SKT HEAD 2
42 WASHERPLATE (5 per pack) 12
45 BRACKET1 1
46 BRACKET 2 1
47 BOLTSET 2
49 BOLTSTUD 3 2
50 BOLTSTUD 3 2
51 WASHER (5 per pack) 4
52 NUTLOCK 4
53 BARSTABLIZR FRT AP 1
54 LINKSTABLZR FRONT AP 1
55 JOINT STABILIZER AP 1
56 JOINT STABILIZER AP 1
57 PIN DOWEL AP (5 per pack) 2
58 PINDOWEL AP (5 per pack) 1
59 SLIDER AP 2
60 COVERSTABLZR FRT AP 1
61 Хомут 2
62 CIRCLIPS-TYPE 2
63 O-RING (82M) AP 1
64 PLTESTRG BRKT 1 AP 1
65 PLTESTRG BRKT 1 AP 1
66 COVER 1 (L.H) AP 1
67 COVER 2 (R.H) AP 1
68 PLATESTRG BRKT 1 1
69 PLATESTRG BRKT 2 1
70 RIVETBLIND 12
71 WASHER PLATE 12
72 TAPE 1 AP 1
73 TAPE 2 AP 1
74 EMBLEM 15 2
74 EMBLEM 15 2
75 STABILIZER BAR KIT (REF. tahos_51~74) AP 1
