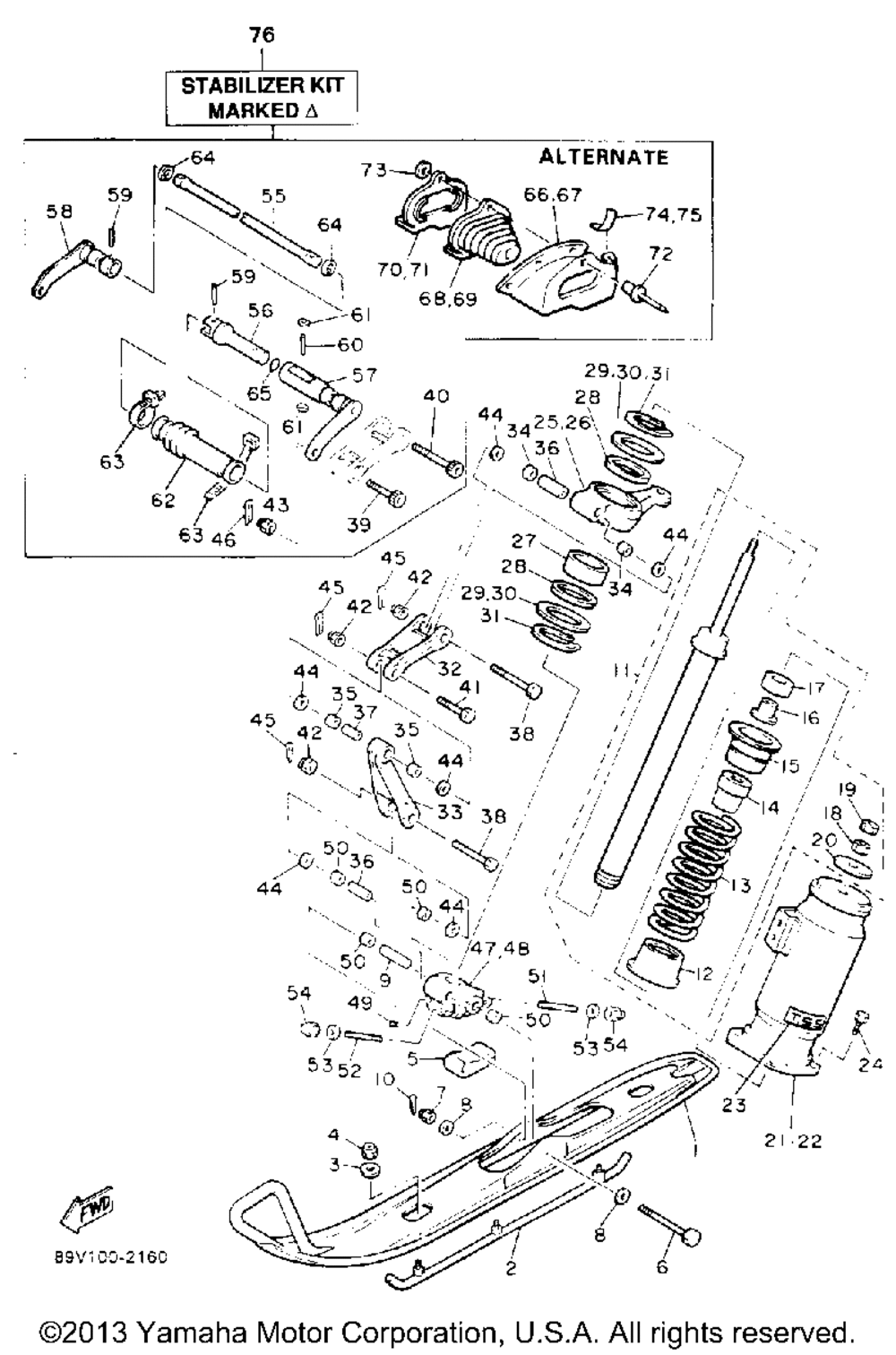

Yamaha VENTURE XL VT480S VENTURE XL VT480S SKI
SKI
№ Наименование Примечание Кол-во
1 SKI 1 (USA) 1
2 SKI RUNNER 1 (88T-23731-00-00) 1
3 WASHER (5 per pack) 3
4 NUTU 3
5 STOPPER 1 2
6 BOLTWITH HOLE 2
7 NUTNYLON 2
8 WASHER (6TA) 4
9 COLLAR 2
10 PINCOTTER 2
11 ABSORBER ASY 1 (USA) 2
12 SEATSPRING 2 1
13 SPRINGCOMPRESSION (USA) 1
14 BUMPSTOP (USA) 1
15 PLATE BACK UP 1
16 COLLAR 1
17 WASHER 1
18 NUTHEXAGON 1
19 NUT (6L2) 1
20 WASHERPLATE 1
21 HOLDERABSORBER 1
22 HOLDERABSORBER 2 1
23 EMBLEM 15 2
24 BOLT HEXAGON 8
25 ARMOUTSIDE 1 (USA) 1
26 ARMOUTSIDE 2 (USA) 1
27 BUSHBIMETAL FORM 2
28 OIL SEALSDO-TYPE 4
29 WASHERPLATE (T=1.0) UR UN 4
30 WASHERPLATE (T=2.0) UR UN 4
31 CIRCLIPS-TYPE 4
32 ARMFRONT 1 2
33 ARMFRONT 2 2
34 ВТУЛКА (BUSH, BIMETAL FORMED (8L0)) (10216170/050919/0161719, ЯПОНИЯ) 4
35 Втулка (BUSH, BIMETAL FORMED (8L0)) (10005030/220119/0001962, ЯПОНИЯ) 4
36 COLLAR 4
37 COLLAR 2
38 BOLTWITH HOLE 4
39 BOLTHEX SOCKET HD AP 2
40 BOLTHEX SKT HEAD AP 2
41 BOLTHEX SKT HEAD 2
44 WASHERPLATE (5 per pack) 12
47 BRACKET1 1
48 BRACKET 2 1
49 BOLTSET 2
51 BOLTSTUD 3 2
52 BOLTSTUD 3 2
53 WASHER (5 per pack) 4
54 NUTLOCK 4
55 BARSTABLIZR FRT AP 1
56 LINKSTABLZR FRONT AP 1
57 JOINT STABILIZER AP 1
58 JOINT STABILIZER AP 1
59 PIN DOWEL AP (5 per pack) 2
60 PINDOWEL AP (5 per pack) 1
61 SLIDER AP 2
62 COVERSTABLZR FRT AP 1
63 Хомут 2
64 CIRCLIPS-TYPE 2
65 O-RING (82M) AP 1
66 PLTESTRG BRKT 1 AP 1
67 PLTESTRG BRKT 1 AP 1
68 COVER 1 (L.H) AP 1
69 COVER 2 (R.H) AP 1
70 PLATESTRG BRKT 1 1
71 PLATESTRG BRKT 2 1
72 RIVETBLIND 12
73 WASHER PLATE 12
74 TAPE 1 AP 1
75 TAPE 2 AP 1
76 STABILIZER BAR KIT (REF. tahos_51~74) AP 1
