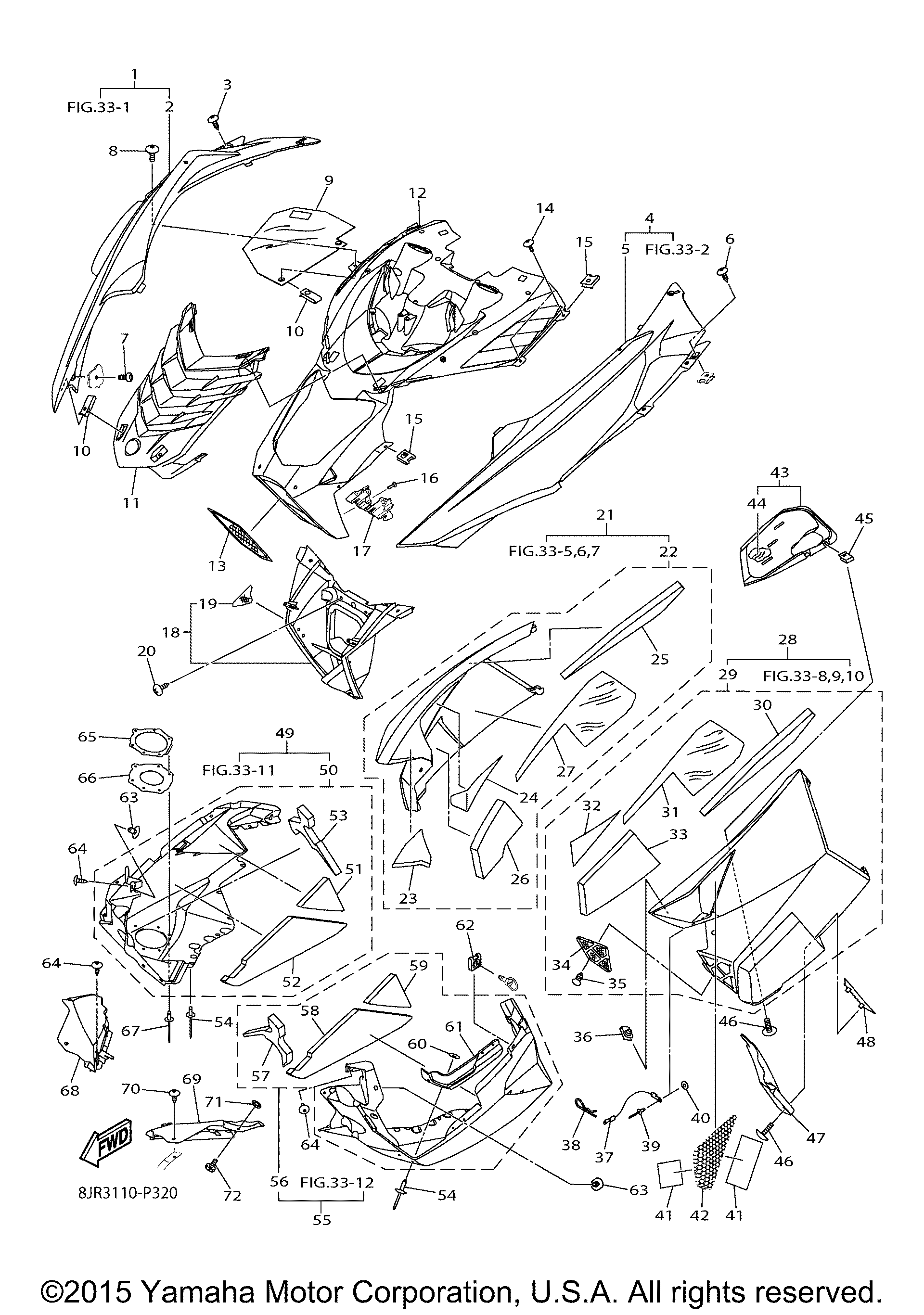

Yamaha SRVIPER L TX SE (SR10LSFR/SR10LSFL) SRVIPER L TX SE (SR10LSFR/SR10LSFL) SHROUD
SHROUD
№ Наименование Примечание Кол-во
1 HOOD ASSY 4 UR FOR DPBSE 1
1 HOOD ASSY 4 UR FOR VRC1 0
2 HOOD 2 UR FOR BWC1 1
2 HOOD 4 0
3 SCREW 10-12X3/4 (5 per pack) 3
4 HOOD ASSY 3 UR FOR DPBSE 1
4 HOOD ASSY 3 UR FOR VRC1 0
5 HOOD 1 UR FOR BWC1 1
5 HOOD 3 0
7 SCREW TAPPING 2
8 SCREW 10-12X1.00 (5 per pack) 2
9 SHIELD HEAT 1
10 NUT CLIP 10 (6 per pack) 4
11 PANEL CONSOLE 1 1
12 SHROUD 1
13 GRILL FRONT 1
14 SCREWSELF TAP-TSTRH (10 per pack) 2
15 NUT CLIP 10 (2 per pack) 4
16 SCREW 13 (6 per pack) 2
17 BRACKET 1 1
18 DUCT INTAKE 1
19 TAPE REFLECTOR 2
20 SCREWSELF TAP-TXSTR (5 per pack) 4
21 SIDE PANEL COMP.(R (R.H) UR FOR VRC1 0
21 SIDE PANEL COMP.(R (R.H) UR FOR DPBSE 1
22 SHELL SIDE PANEL ASS UR FOR DPBSE 1
22 SHELL SIDE PANEL A 0
23 DAMPER NOISE 17 1
24 PROTECTOR 1 1
25 DAMPER NOISE 19 1
26 DAMPER NOISE 18 1
27 PROTECTOR 2 1
28 SIDE PANEL COMP.(L (L.H) UR FOR VRC1 0
28 SIDE PANEL COMP.(L (L.H) UR FOR DPBSE 2
29 SHELL SIDE PANEL A 0
29 SHELL SIDE PANEL ASS UR FOR DPBSE 1
30 DAMPER NOISE 13 1
31 DAMPER NOISE 14 1
32 DAMPER NOISE 15 1
33 DAMPER NOISE 16 1
34 SCREEN 1
35 RIVET 1 (5 per pack) 8
36 NUT CLIP M5 (4 per pack) 1
37 WIRE 2
38 CLIP 5 (5 per pack) 2
39 RIVET 6 (20 per pack) 2
40 WASHER 8X0.375X0. (20 per pack) 2
43 DUCT 1
44 PROTECTOR 3 1
47 DEFLECTOR 1 1
48 DEFLECTOR 2 1
49 HOOD 2 UR FOR DPBSE VRC1 1
50 HOOD 4 1
51 PROTECTOR 4 1
52 PROTECTOR 5 1
53 PROTECTOR 6 1
54 RIVET 14 (10 per pack) 18
54 RIVET 19 (10 per pack) 3
55 HOOD 1 1
56 . .HOOD 3 1
57 PROTECTOR 1 1
58 PROTECTOR 2 1
59 PROTECTOR 3 1
60 WASHERFLAT .194X.50 (4 per pack) 3
61 REINFORCEMENT 1 1
62 NUT CLIP 1/4 2
63 RIVET 4 (2 per pack) 2
65 PLATE 1 1
66 SEAL EXT. 1 1
67 RIVET 21 6
68 PATCH 2 1
69 PATCH 1 1
71 NUT 3/16 (4 per pack) 1
72 SCREW THUMB M5X0.8X (4 per pack) 1
