Yamaha SRVIPER MTX 162 LE (SR10M62LFO) SRVIPER MTX 162 LE (SR10M62LFO) FRAME 2

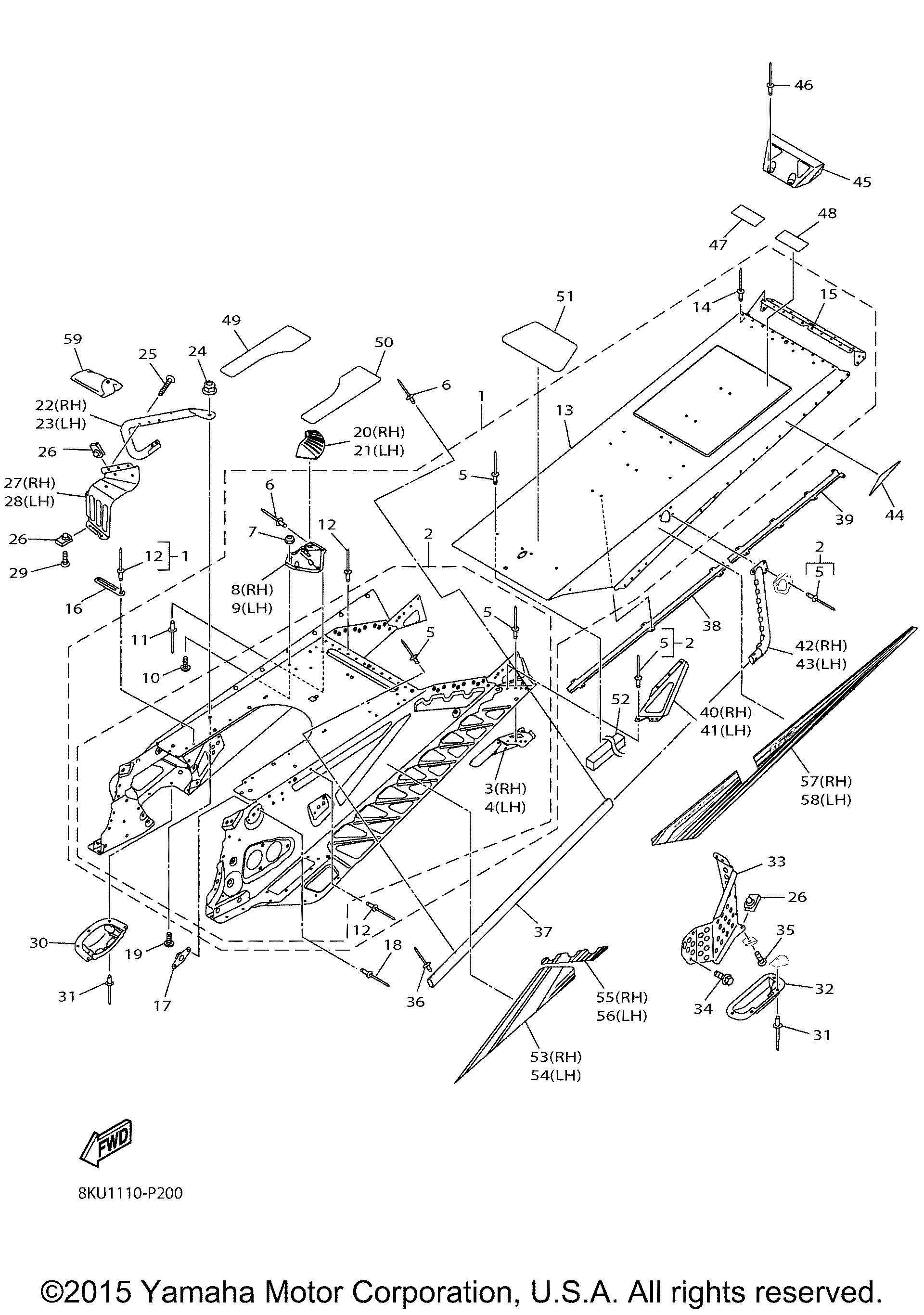

FRAME 2
№ Наименование Примечание Кол-во
1 REAR FRAME COMP. 1
2 PANELFRAME 1
3 BRACKET RR.TRACK SU 1
4 BRACKET RR.TRACK SU 1
5 RIVET 11 UR UN (10 per pack) 73
6 RIVET 20 (5 per pack) 14
7 NUT HEX. LOCKING (8 per pack) 8
8 BRKT. MEMBER 2 1
9 BRACKET MEMBER 1 1
10 SCREW 5 (6 per pack) 8
11 RIVET 3/16 (10 per pack) 2
12 RIVET 17 UR (25 per pack) 55
13 PANEL SUB FRAME 1 1
14 RIVET 18 UN (20 per pack) 16
15 REINEFORCEMENT FR 1
16 CLAMP 20 UN (2 per pack) 1
17 BRACKET 1
18 RIVET 12 (10 per pack) 2
19 SCREW M8X1.25X20 2
20 SUPT. FUEL TANK 2 1
21 SUPT. FUEL TANK 1 1
22 REINFORCEMENT FRA 1
23 REINFORCEMENT FRA 1
24 NUTHEX FLG-NYL LOCK 2
25 SCREW M5X0.8X35 (4 per pack) 4
26 NUT CLIP M5 (4 per pack) 9
27 REINFORCEMENT SUB 1
28 REINFORCEMENT SUB 1
29 SCREW M5X1.0X16 (2 per pack) 4
30 PROTECTOR CHAIN 1
31 RIVET 14 (10 per pack) 9
32 PROTECTOR DISK BR 1
33 PROTECTOR DISK BR 1
34 BOLT FLG. M6X1.0X (2 per pack) 2
35 SCREW M5X0.8X20 (4 per pack) 1
36 RIVET 3/16 UN (6 per pack) 2
37 REINFORCEMENT FOO 2
38 PROTCWIRE HARNESS 1
39 EXTENSION WIRE HA 1
40 GUSSET 1
41 GUSSET 1
42 GUSSET 1
43 GUSSET 1
44 LABEL 1 2
45 BRACKET TAILLIGHT 1
46 RIVET 15 (10 per pack) 2
47 LABEL WARNING 2 (ENGLISH) 1
48 LABEL WARNING 2 (FRENCH) 1
49 PROTECTOR FRAME 3 1
50 PROTECTOR FRAME 1
51 PROTECTOR FUEL TA 1
52 PROTECTOR FRAME 2
53 DECAL FRAME 1 1
54 DECAL FRAME 2 1
55 DECAL FRAME 3 1
56 DECAL FRAME 4 1
57 DECAL FRAME 5 1
58 DECAL FRAME 6 1
59 TOOL KIT 1
