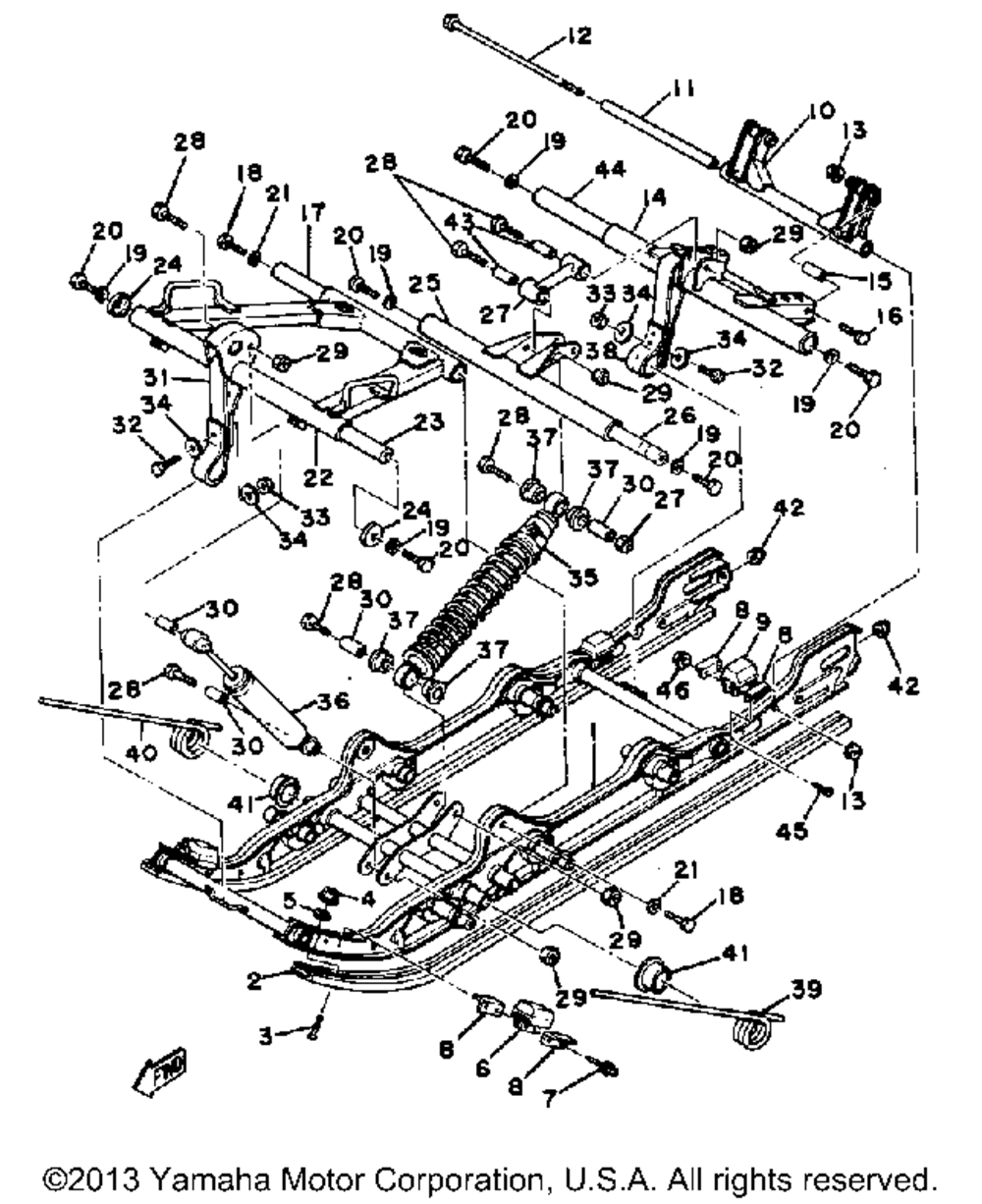

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME SLIDING | 1 | |
| 2 | RUNNERSLIDING 1 | 2 | |
| 3 | SCREWFLAT HEAD | 2 | |
| 4 | NUTLOCK | 2 | |
| 5 | WASHER | 2 | |
| 6 | DAMPER 2 | 2 | |
| 7 | RIVETBLIND | 4 | |
| 8 | PLATEDAMPER | 8 | |
| 9 | DAMPER 1 | 2 | |
| 11 | COLLAR (USA) | 1 | |
| 12 | BOLTHEXAGON (97101-08245) | 1 | |
| 14 | ARMPIVOT 2 | 1 | |
| 15 | COLLAR | 2 | |
| 16 | BOLT | 2 | |
| 17 | SHAFT 3 (USA) | 1 | |
| 18 | BOLT (8J7) (8J7) (97303-10030-00) | 2 | |
| 19 | WASHER TTH | 6 | |
| 21 | WASHERSPRING (5 per pack) | 2 | |
| 22 | ARMPIVOT 1 | 1 | |
| 23 | SHAFT 1 | 1 | |
| 24 | SPACER | 2 | |
| 25 | BRACKET 5 | 1 | |
| 26 | SHAFT 2 | 1 | |
| 27 | BRACKET 6 | 1 | |
| 31 | STOPPER 1 | 1 | |
| 32 | BOLT(3RV) | 2 | |
| 33 | NUTFLANGE | 2 | |
| 34 | WASHERPLATE (5 per pack) | 4 | |
| 35 | SHOCK ABSORBER | 1 | |
| 36 | SHOCK ABSORBER 2 | 1 | |
| 37 | COLLAR | 4 | |
| 39 | SPRINGTORSION | 1 | |
| 40 | SPRINGTORSION | 1 | |
| 41 | COLLAR | 2 | |
| 42 | NUTNYLON (95702-10300-00) | 2 | |
| 43 | COLLAR | 2 | |
| 44 | SHAFT 2 | 1 | |
| 45 | SCREW PAN HEAD | 4 | |
| 46 | NUT FLANGE (4GB) | 4 |
