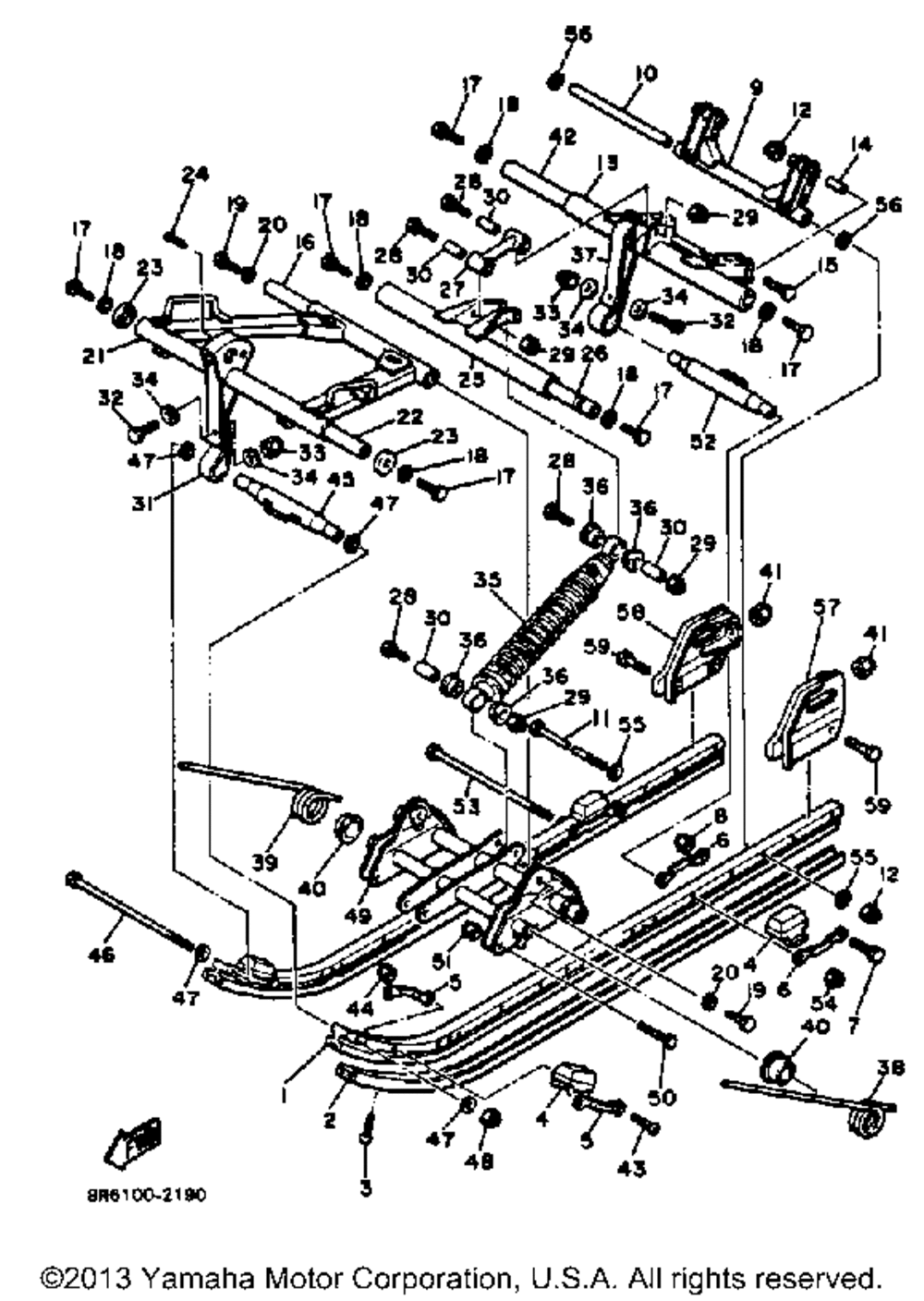

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAMESLIDING 1 | 2 | |
| 2 | RUNNERSLIDING 1 | 2 | |
| 3 | )SCREW CROSSRECESS | 2 | |
| 4 | DAMPER 1 | 4 | |
| 5 | PLATEDAMPER | 4 | |
| 6 | PLATEDAMPER | 4 | |
| 7 | BOLT (661) | 2 | |
| 8 | NUTLOCK | 2 | |
| 9 | BRACKET 3 | 1 | |
| 10 | COLLAR | 1 | |
| 11 | BOLT | 1 | |
| 13 | ARMPIVOT 2 | 1 | |
| 14 | COLLAR | 2 | |
| 15 | BOLT | 2 | |
| 16 | SHAFT 3 | 1 | |
| 17 | BOLT (8J7) (8J7) (97303-10030-00) | 6 | |
| 18 | WASHER TTH | 6 | |
| 20 | WASHERSPRING (5 per pack) | 2 | |
| 21 | ARMPIVOT 1 | 1 | |
| 22 | SHAFT 1 | 1 | |
| 23 | SPACER | 2 | |
| 25 | BRACKET 5 | 1 | |
| 26 | SHAFT 2 | 1 | |
| 27 | BRACKET 6 | 1 | |
| 31 | STOPPER 1 | 1 | |
| 31 | STOPPER 1 | 1 | |
| 32 | BOLT(3RV) | 2 | |
| 33 | NUTFLANGE | 2 | |
| 34 | WASHERPLATE (5 per pack) | 4 | |
| 35 | SHOCK ABSORBER | 1 | |
| 36 | COLLAR | 4 | |
| 38 | SPRINGTORSION | 1 | |
| 39 | SPRINGTORSION | 1 | |
| 40 | COLLAR | 2 | |
| 40 | COLLAR | 2 | |
| 41 | NUTNYLON (95702-10300-00) | 2 | |
| 42 | SHAFT 1 | 1 | |
| 43 | SCREW PAN HEAD | 4 | |
| 44 | NUT FLANGE (4GB) | 4 | |
| 45 | BRACKET 1 | 1 | |
| 47 | WASHER (5 per pack) | 4 | |
| 50 | BOLT | 6 | |
| 52 | COLLAR 1 | 1 | |
| 56 | WASHERPLATE | 2 | |
| 57 | FRAMESLIDING 2 | 1 | |
| 58 | FRAMESLIDING 3 | 1 | |
| 59 | BOLTWITH WASHER | 4 |
