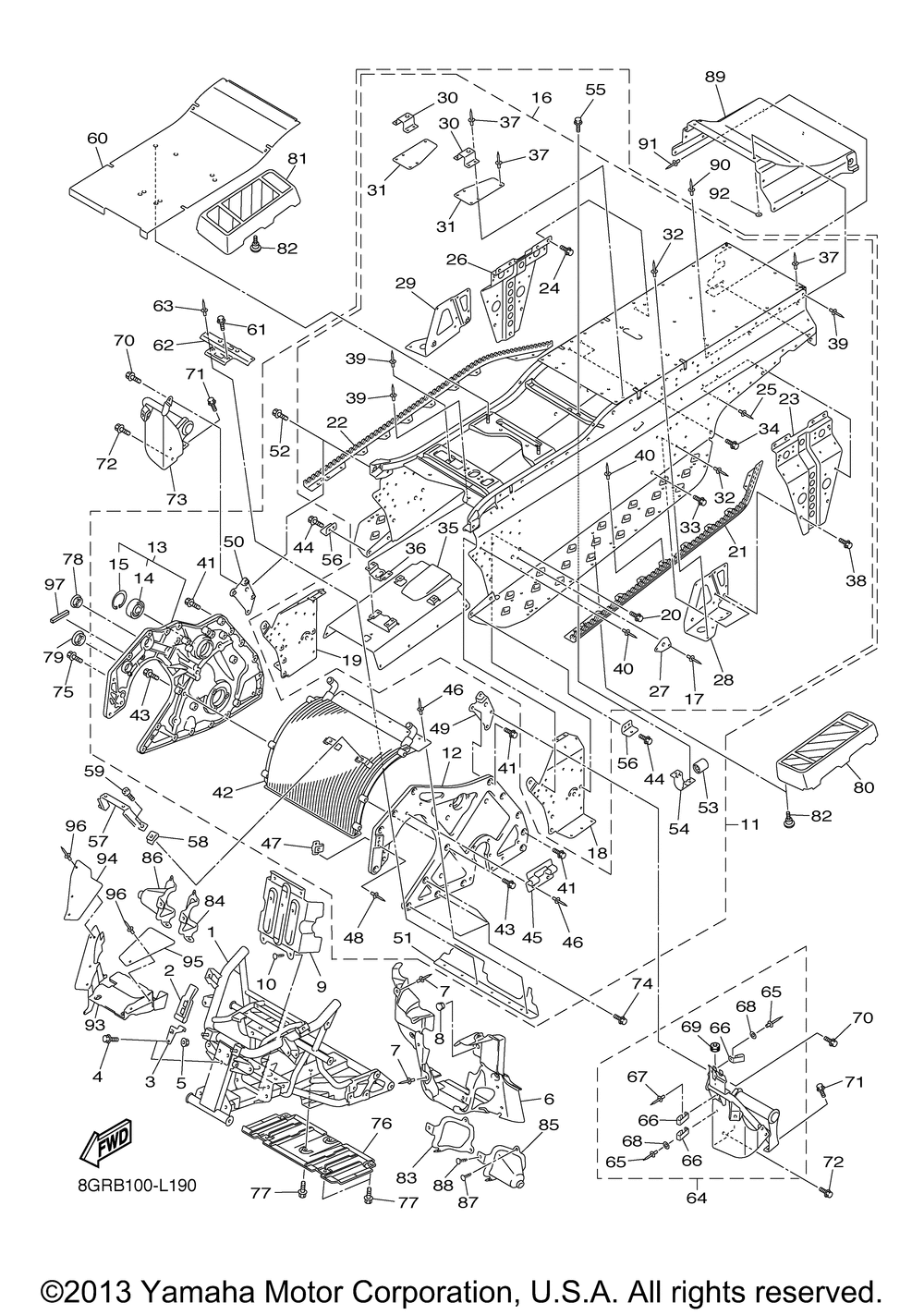

Yamaha VENTURE MULTI PURPOSE PZ50MPEL VENTURE MULTI PURPOSE PZ50MPEL FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BAND 1
3 BRACKET 4 1
4 BOLT BUTTON HEAD 1
5 NUTFLANGE (SILVER) 1
6 PANEL SUB FRAME 1 1
7 RIVETBLIND (4.8X19 BLACK) (5 per pack) 5
8 PLUGSPEC'L SHAPE 1
9 PROTECTOR FRAME A 1
10 RIVET 4
11 REAR FRAME COMP. 1
12 REINF. PANELL FRAME 1
13 HOUSING REINF SUB-A (R.H) 1
14 BEARING 1
15 CIRCLIP 1
16 REAR FRAME COMP. 1
17 RIVET BLIND (4.7X16.4 YELLOW) 4
18 BRACKET MAIN TRACK 1
19 BRACKET MAIN TRACK 1
20 BOLT FLANGE 2
21 REINFORCEMENT FOOTR 1
22 REINFORCEMENT FOOTR 1
23 BRACKET RR.TRACK SU 1
24 BOLTFLANGE(8AB) 8
26 BRACKET RR.TRACK SU 1
27 BRACKET MAIN TRACK 2
28 PATCH 7 1
29 PATCH 8 1
30 BRACKET SEAT 2
31 PLATE 2
33 BOLT FLANGE 2
34 BOLTFLANGE 4
35 SHIELD HEAT 1
36 BRACKET SILENCER 1 1
39 RIVET BLIND (4.8X12.1 YELLOW) 35
40 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 68
41 BOLT FLANGE 10
42 HEAT EXCHANGER ASSY 1
44 BOLT FLANGE 2
45 HOOK 1
47 PLATE SPRING 1
48 RIVET BLIND (3.2X13.8) 2
49 PATCH 3 1
50 PATCH 4 1
51 PLATE 1
52 BOLTFLANGE (3HP) 2
53 DAMPER MUFFLER 2
54 BRACKET DAMPER 2
55 BOLT BUTTON HEAD 4
56 PATCH 7 2
57 STAY 1 1
58 NUT SPRING (4ES) 2
59 BOLT (4MY) 2
60 PANEL SUB FRAME 5 1
61 SCREW (5 per pack) 2
62 STAY 2 1
64 FOOTREST COMP. 1 1
65 RIVET BLIND (4.8X12 YELLOW) 2
66 CLAMP (51Y) 3
67 RIVETBLIND (4.8X15.2 SILVER) 1
68 WASHER PLATE 2
69 GROMMET FOR CALIFORNIA 1
71 BOLT FLANGE 4
72 BOLT FLANGE 2
73 FOOTREST COMP. 2 1
75 BOLTFLANGE (JN5) 2
76 PROTECTOR 1
77 BOLT 6
78 GROMMET 1
79 GROMMET 1
80 FOOTREST REAR 1 AP 1
81 FOOTREST REAR 2 AP 1
82 SCREW TAPPING (5 per pack) 10
83 PLATE STRG BRACKET 1
84 PLATE STRG BRACKET 1
85 COVER 1 1
86 COVER 3 1
88 RIVET 2
89 PROTECTOR 7 1
91 RIVETBLIND (4.7X16.4 BLACK) 3
92 WASHERPLATE 11
93 PROTECTOR FRAME 1
94 SEAL 4 1
95 SEAL 5 1
96 RIVETSPEC'L SHAPE (5 per pack) 5
97 DAMPER 1 1
