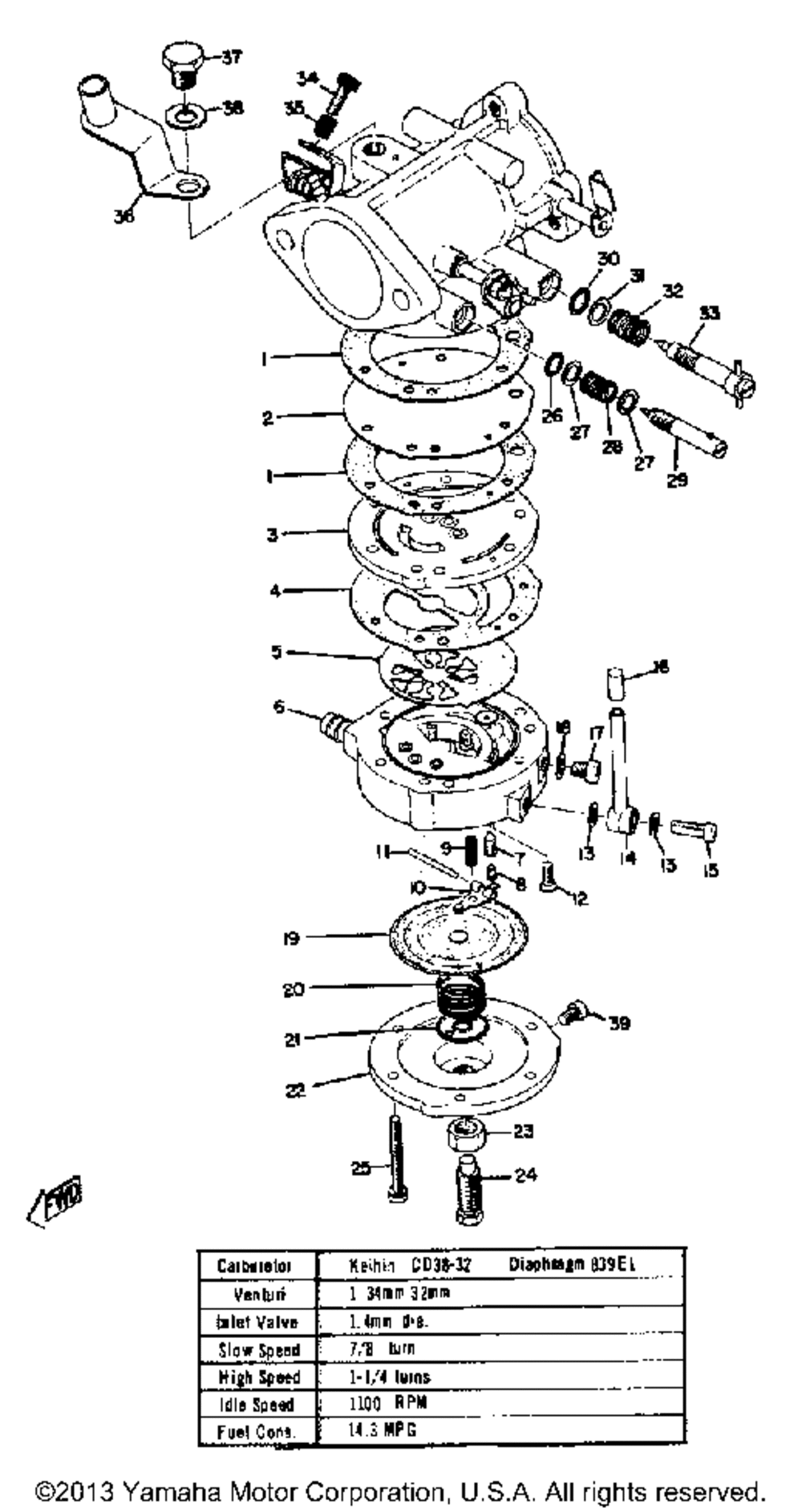

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GASKET | 2 | |
| 2 | DIAPHRAGMPUMP | 1 | |
| 4 | GASKET | 1 | |
| 5 | VALVECHECK | 1 | |
| 7 | VALVENEEDLE | 1 | |
| 8 | PINFLOAT | 1 | |
| 9 | SPRING | 1 | |
| 12 | . .SCREW COUNTERSUNK | 1 | |
| 13 | WASHER | 2 | |
| 14 | PIPEAIRVENT | 1 | |
| 15 | SCREW | 1 | |
| 16 | CAPBLIND | 1 | |
| 18 | WASHER | 1 | |
| 19 | DIAPHRAGM | 1 | |
| 23 | NUT | 1 | |
| 24 | SCREWSTOP | 1 | |
| 26 | O-RING | 1 | |
| 27 | WASHER | 2 | |
| 30 | O-RING | 1 | |
| 31 | WASHER | 1 | |
| 33 | SCREWADJUST | 1 | |
| 36 | BRACKETTHROTTLE | 1 | |
| 37 | BOLT (5 per pack) | 1 | |
| 38 | WASHERSPRING | 1 | |
| 39 | SCREWPAN HEAD (98502-04006) | 1 |
