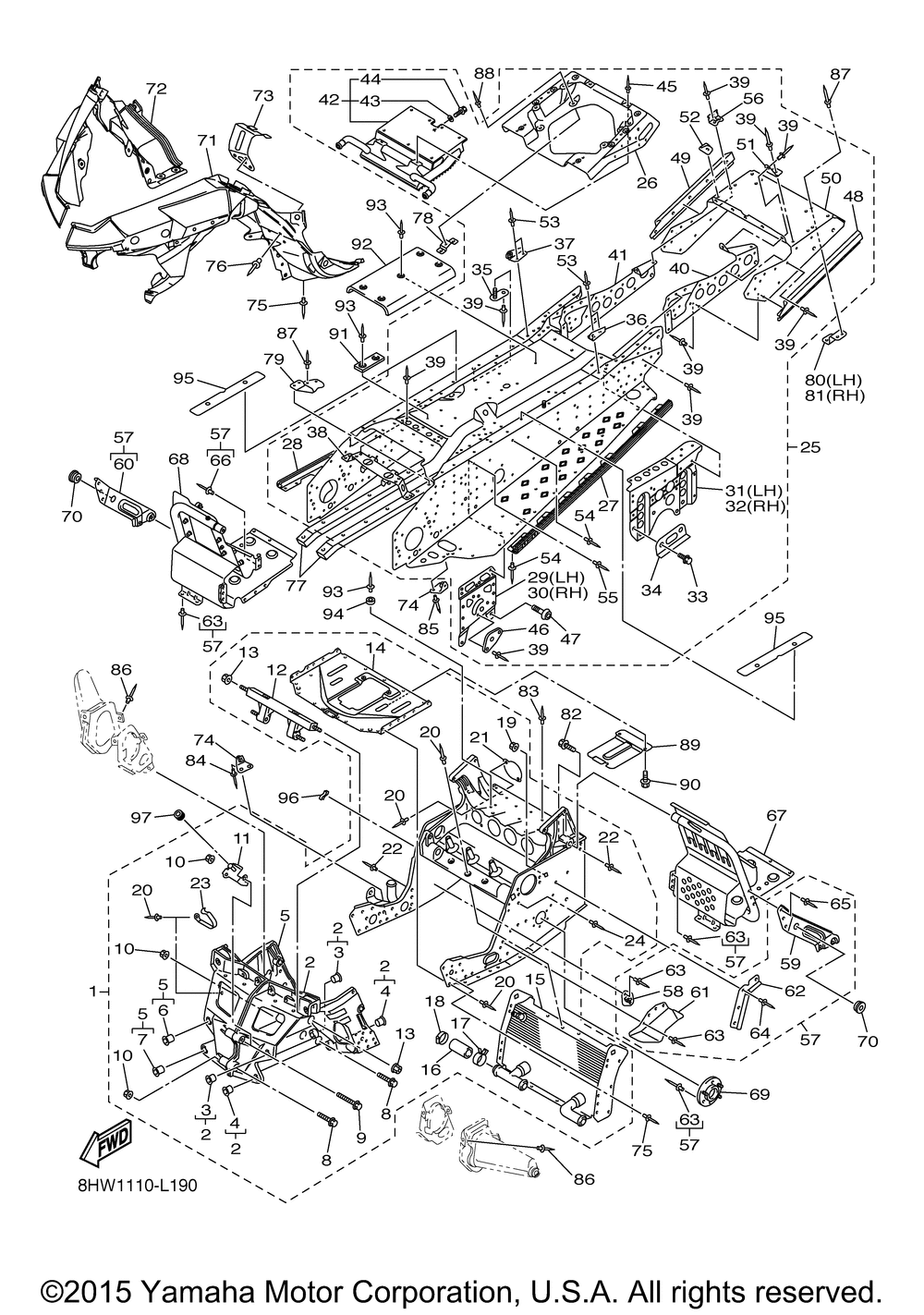

Yamaha RS VECTOR LTX RS90PLTDL/RS90PLTDB RS VECTOR LTX RS90PLTDL/RS90PLTDB FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 BUSH SOLID 2
4 BUSH SOLID 2
5 BULKHEAD 2 1
8 BOLTFLANGE 3
9 BOLTFLANGE 1
10 NUT SELF LOCKING 4
11 BRACKET 2 1
12 BRACKET STEERING 1 1
13 NUTSELF-LOCKING 4
14 PROTECTOR 1
15 HEAT EXCHANGER ASSY 1
16 HOSE 7 1
17 CLIPSCISSOR 1
18 HOSE CLAMP ASSY 1
20 RIVET BLIND (4.7X16.4 YELLOW) 43
21 PLATE COVER 1
22 RIVET BLIND (4.8X17 YELLOW) 12
23 CLAMP 1
24 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 16
25 REAR FRAME COMP. 1
26 REINEFORCEMENT FRAM 1
27 REINFORCEMENT FOOTR 1
28 REINFORCEMENT FOOTR 1
29 BRACKET MAIN TRACK 1
30 BRACKET MAIN TRACK 1
31 BRACKET RR.TRACK SU 1
32 BRACKET RR.TRACK SU 1
33 BOLT FLANGE 4
34 PATCH 8 2
35 BRACKET FUEL TANK 2
36 BRACKET 1 1
37 BRACKET 2 1
38 PROTECTOR MUFFLER 1
40 PATCH 3 1
41 PATCH 4 1
42 HEAT EXCHANGER ASSY 1
43 WASHERSEAL 1
44 BOLT FLANGE 1
45 RIVET BLIND (5 per pack) 2
46 BRACKET MAIN TRACK 2
47 BOLT BUTTON HEAD 2
48 MEMBER SIDE 1 1
49 MEMBER SIDE 2 1
50 PANEL SUB FRAME 5 1
51 PATCH 8 1
52 PATCH 9 1
53 RIVET BLIND (5 per pack) 8
54 RIVET BLIND (4.8X12.1 YELLOW) 24
56 BRACKET REFLECTOR 1 2
57 FRAME CONNECTION KIT 1
58 BRACKET CHAIN HOUSI 2
59 BRACKET 5 1
60 BRACKET 6 1
61 COVER 2 1
62 CLAMP WIREHARNESS 1
64 RIVET BLIND (4.8X18.6 BLACK) 4
66 RIVET BLIND 4
67 FOOTREST COMP. 1 1
68 FOOTREST COMP. 2 1
69 HOUSING REINF SUB-A (L.H) 1
70 GROMMET 2
71 FRAME UNDER 1 1
72 FRAME UNDER 2 1
73 BRACKET GUARD FITTI 1
74 BRACKET 3 6
76 RIVET BLIND (4.7X19.5 BLACK) 3
77 PROTECTOR FRAME 2
78 BRACKET 7 2
79 BRACKET 7 4
80 BRACKET 3 1
81 BRACKET 4 1
82 BOLTFLANGE(8AB) 2
83 RIVET BLIND 12
84 RIVETBLIND (4.8X15.2 SILVER) 8
89 PROTECTOR FRAME FR 1
90 BOLT BUTTON HEAD 2
91 SPACER 4
92 SHIELD HEAT 1
93 RIVETBLIND (4.8X12.3) 14
94 STOPPER 1
95 DAMPER 1 2
96 TAPE 4 1
97 GROMMET (5 per pack) 1
