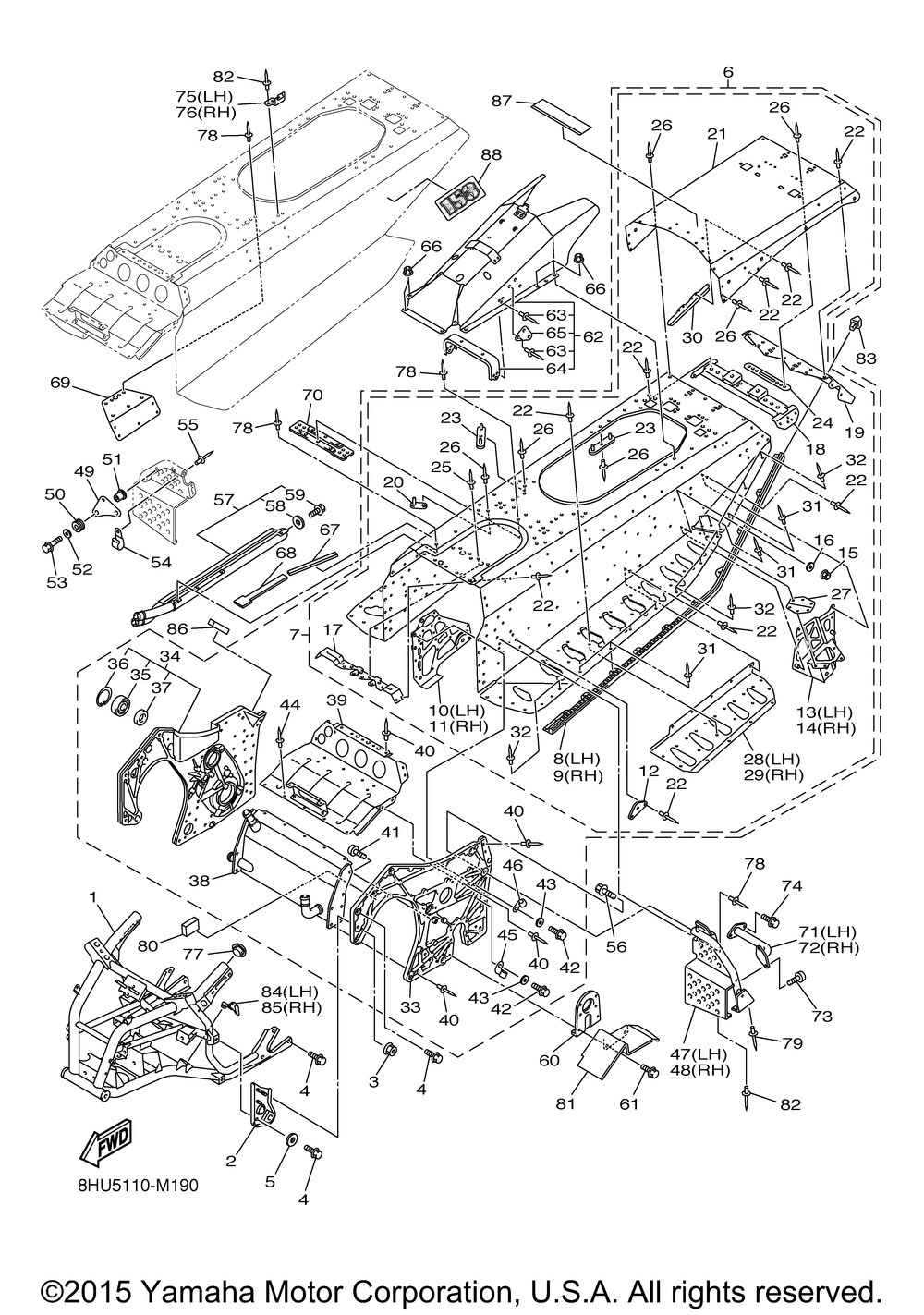

Yamaha FX NYTRO MTX 153 FX10M53SDB/FX10M53SDL FX NYTRO MTX 153 FX10M53SDB/FX10M53SDL FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BRACKET ENGINE 1
3 NUTSELF-LOCKING 3
4 BOLTFLANGE (JN5) 12
5 WASHERPLATE 1
6 REAR FRAME COMP. 1
7 REAR FRAME COMP. 1
8 REINFORCEMENT FOOTR 1
9 REINFORCEMENT FOOTR 1
10 BRACKET MAIN TRACK 1
11 BRACKET MAIN TRACK 1
12 BRACKET MAIN TRACK 2
13 BRACKET RR.TRACK SU 1
14 BRACKET RR.TRACK SU 1
15 NUTCROWN 4
16 WASHER PLATE 4
17 PROTECTOR MUFFLER 1
18 BRACKET 7 1
19 REINEFORCEMENT FRAM 1
20 BRACKET FUEL TANK 2
21 PANEL SUB FRAME 6 1
22 RIVET BLIND (4.7X16.4 YELLOW) 1
23 BRACKET 8 4
24 NUT 1
25 RIVET BLIND (4.8X12 YELLOW) 6
26 RIVET BLIND (4.8X12.1 YELLOW) 59
27 PATCH 1 2
28 PATCH 3 1
29 PATCH 4 1
30 PROTECTOR 2
31 RIVET BLIND (4.8X17 YELLOW) 14
32 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 18
33 REINF. HOUSING 1 1
34 HOUSING REINF SUB-A (R.H) 1
35 BEARING 1
36 CIRCLIP 54G 1
37 OIL SEAL 1
38 HEAT EXCHANGER ASSY 1
39 PANEL SUB FRAME 4 1
41 BOLT BUTTON HEAD 2
42 BOLT 8
43 WASHERPLATE 8
45 CLAMP 1
46 CLAMP 1
47 FOOTREST COMP. 1 1
48 FOOTREST COMP. 2 1
49 STAY BUZZER 1
50 GROMMET 2
51 COLLAR 2
52 WASHERPLATE 2
53 BOLTFLANGE 2
54 CLAMP 1
56 BOLTFLANGE 2
57 HEAT EXCHANGER ASSY AP 1
58 WASHERSEAL 1
59 BOLT(3JP) 1
60 HOUSING REINF SUB-A (L.H) 1
61 BOLT FLANGE 2
62 PANEL SUB FRAME 5 1
64 STAY MUFFER 1
65 BRACKET SEAT FITTIN 2
66 NUT CROWN 8
67 SEAL GUARD 2
68 SEAL GUARD 2
69 PATCH 7 2
70 PATCH 8 1
71 BAR FOOTREST 1 1
72 BAR FOOTREST 2 1
73 BOLT BUTTON HEAD 4
74 BOLT FLANGE 4
75 BRACKET REAR FENDER 1
76 BRACKET REAR FENDER 1
77 CAP 2
79 RIVET BLIND 4
80 DAMPER 1
81 PROTECTOR FRAME 1
83 PLUG 2
84 PLUG BLIND 1
85 PLUG BLIND 1
86 DAMPER PLATE 1
87 LABEL WARNING 2 1
88 GRAPHIC 1 2
