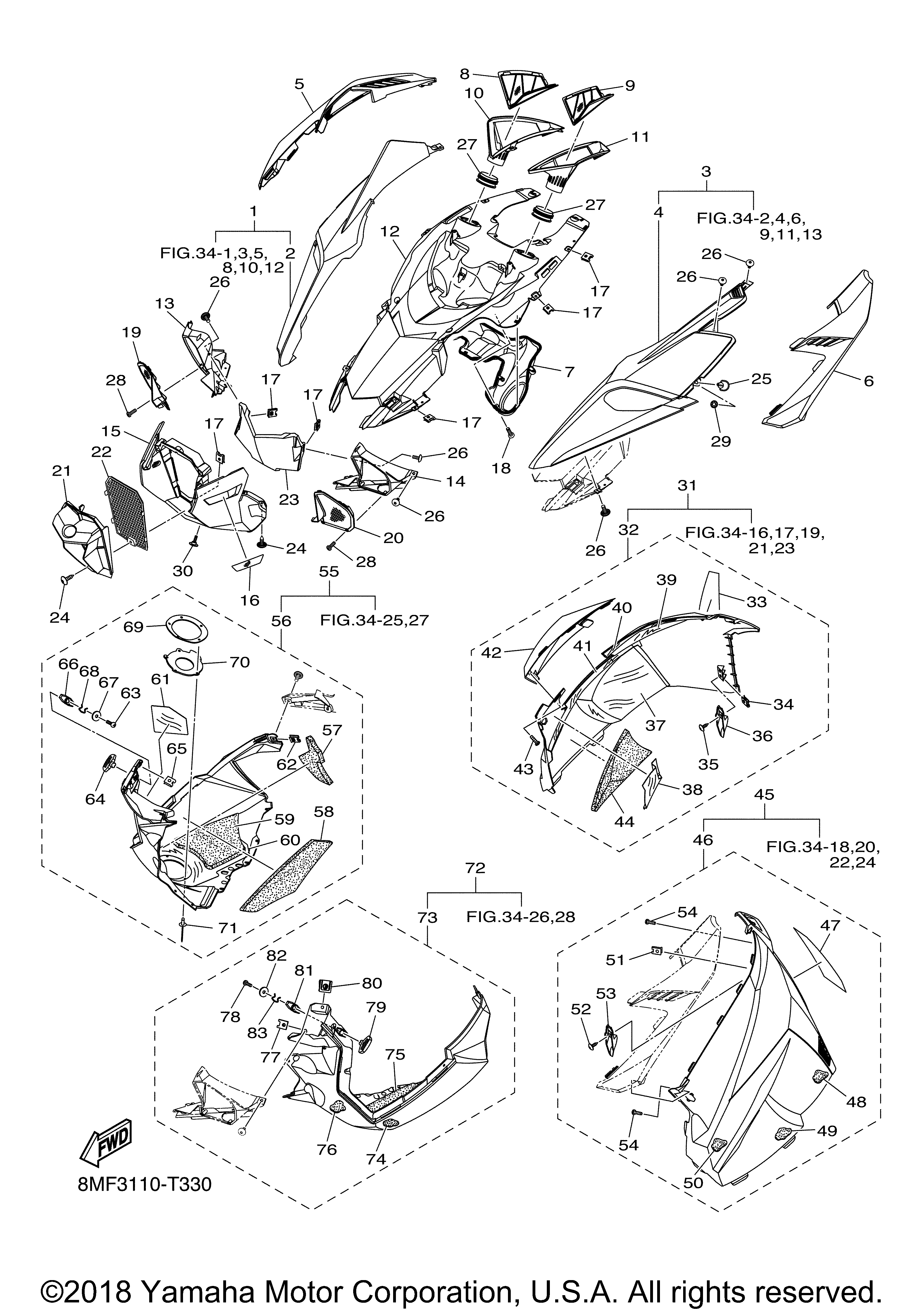

Yamaha SIDEWINDER B TX LE 1 (SW1NBL53JW) SIDEWINDER B TX LE 1 (SW1NBL53JW) SHROUD
SHROUD
№ Наименование Примечание Кол-во
1 HOOD ASSY 4 1
2 HOOD 2 UR FOR VRC1 1
3 HOOD ASSY 3 1
4 HOOD 1 UR FOR VRC1 1
5 SHROUD UR FOR VRC1 1
6 SHROUD 2 UR FOR VRC1 1
7 INTAKE LOWER 1
8 SCREEN INTAKE DUC 1
9 SCREEN INTAKE DUC 1
10 DUCT INTAKE 2 1
11 DUCT INTAKE 1 1
12 INTAKE UPPER 1
13 VENT FRONT 2 1
14 VENT FRONT 1 1
15 DUCT INTAKE FRON 1
16 TAPE REFLECTOR 2
17 NUT CLIP 10 (2 per pack) 9
18 SCREW 13 (6 per pack) 9
19 BEZEL VENT 2 1
20 BEZEL VENT 1 1
21 GRILLE 1
22 GUIDE 1 1
23 SHUT INTAKE 1
24 SCREW 10-12X3/4 3
25 PIN 2 2
26 SCREW TAPPING 1/4 10
27 SEAL INTAKE 2
28 SCREW 4 4
29 NUT 1 2
30 SCREW 5 1
31 SIDE PANEL COMP. (R.H) 1
32 SHELL SIDE PANEL A UR FOR DPBSE 1
33 LABEL WARNING 1 1
36 HOOK 2 1
37 PROTECTOR 2 1
38 . . ..PROTECTOR 1 1
39 . . ..PROTECTOR 3 1
40 PROTECTOR 4 1
41 PROTECTOR 5 1
42 VENT SIDE 1 1
44 DAMPER NOISE 18 1
45 SIDE PANEL COMP. (L.H) 1
46 SHELL SIDE PANEL A UR FOR DPBSE 1
47 . . ..LABEL WARNING 1 1
48 DAMPER NOISE 19 1
49 DAMPER NOISE 17 1
50 DAMPER NOISE 17 1
53 HOOK 1 1
55 HOOD 2 1
56 HOOD 4 UR FOR VRC1 1
57 DAMPER NOISE 16 1
58 DAMPER NOISE 15 1
59 DAMPER NOISE 14 1
60 . . ..PROTECTOR 6 1
61 . . ..PROTECTOR 7 1
64 KNOB 1
65 NUT CLIP 1/4 1
66 PLATE BACK UP 1 1
67 WASHER 1
68 CLIP 6 1
69 PLATE 1 1
70 SEAL EXT. 1 1
71 RIVET 14 (10 per pack) 1
72 HOOD 1 1
73 HOOD 3 UR FOR VRC1 1
74 DAMPER NOISE 11 1
75 DAMPER NOISE 12 1
76 DAMPER NOISE 13 1
