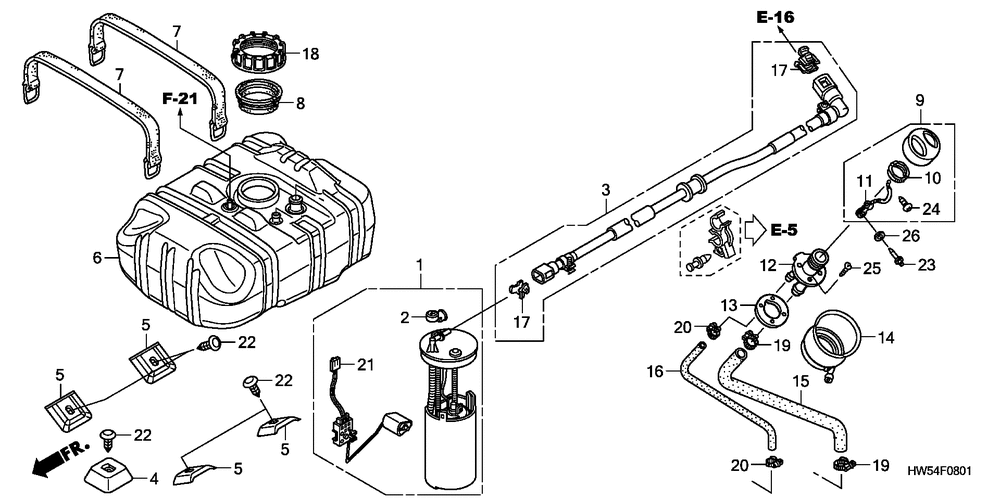

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 001 | PUMP ASSY. FUEL | 0 | |
| 002 | DAMPER CONNECTOR | 1 | |
| 003 | HOSE COMPFUEL FEED | 1 | |
| 004 | RUBBER | 1 | |
| 005 | RUBBER | 4 | |
| 006 | TANK FUEL | 1 | |
| 007 | BAND A RUBBER | 2 | |
| 008 | GASKET | 1 | |
| 009 | CAP ASSY. FUEL TANK | 1 | |
| 010 | GASKET FUEL CAP | 1 | |
| 011 | CHAIN | 1 | |
| 012 | NECK FUEL FILLER | 1 | |
| 013 | SEAL FUEL FILLER | 1 | |
| 014 | PARTITION | 1 | |
| 015 | TUBE FILLER NECK | 1 | |
| 016 | TUBE TANK BREATHER | 1 | |
| 017 | RETAINER | 2 | |
| 018 | NUT | 1 | |
| 019 | CLAMP (25-51MM) | 2 | |
| 020 | CLAMP (13-27MM) | 2 | |
| 021 | SENDER UNIT FUEL | 1 | |
| 022 | CLIP TREE TYPE | 5 | |
| 023 | RIVET (4X10.4) | 1 | |
| 024 | SCREW TAP (4X12) | 1 | |
| 025 | SCREW TAP (5X16) | 4 | |
| 026 | WASHER, PLAIN (4MM) | 1 |
