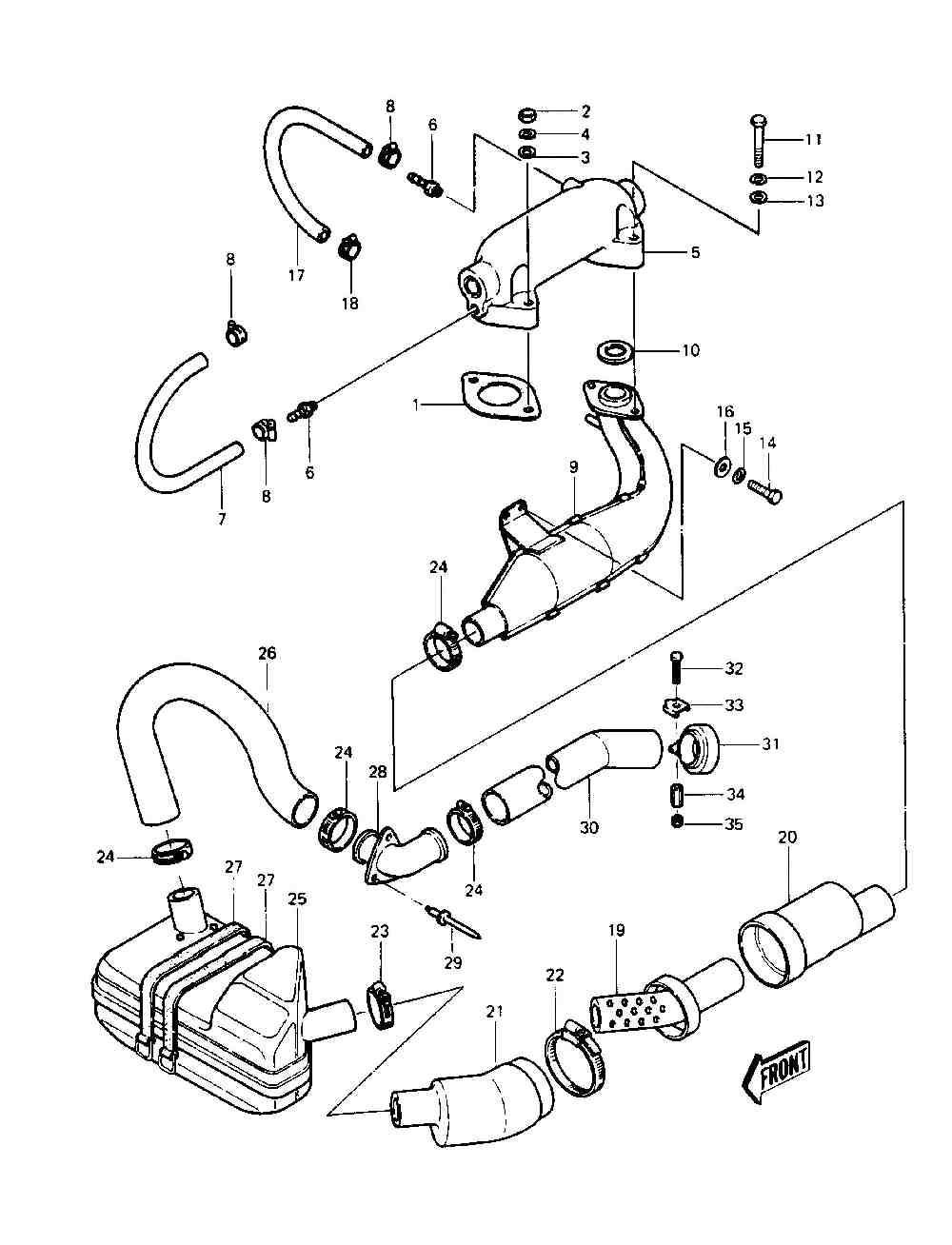

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GASKETEXHAUST | 1 | |
| 2 | NUT8 M/M | 2 | |
| 5 | PIPE-EXHAUST | 1 | |
| 6 | FITTINGHOSE | 2 | |
| 7 | TUBE | 1 | |
| 9 | EXPANSION CHAMBER | 1 | |
| 10 | GASKETEXHAUST | 1 | |
| 11 | BOLT8X45 | 2 | |
| 12 | WASHER SPRING 8MM | 2 | |
| 13 | WASHER | 2 | |
| 14 | BOLT8X20 | 2 | |
| 16 | WASHER | 2 | |
| 17 | HOSE | 1 | |
| 18 | CLAMP | 1 | |
| 19 | PIPE-RESNTR. CONNECTR | 1 | |
| 20 | TUBE | 1 | |
| 21 | TUBE | 1 | |
| 22 | CLAMP | 1 | |
| 23 | CLAMP | 1 | |
| 25 | MUFFLER-COMPWATERBOX | 1 | |
| 26 | HOSE | 1 | |
| 27 | BAND | 2 | |
| 28 | PIPETAIL | 1 | |
| 29 | RIVET | 3 | |
| 30 | HOSETAIL | 1 | |
| 31 | CLAMP | 1 | |
| 32 | SCREW6X45 | 1 | |
| 33 | WASHER | 1 | |
| 34 | NUT6M/M | 1 | |
| 35 | NUT6M/M | 1 |
