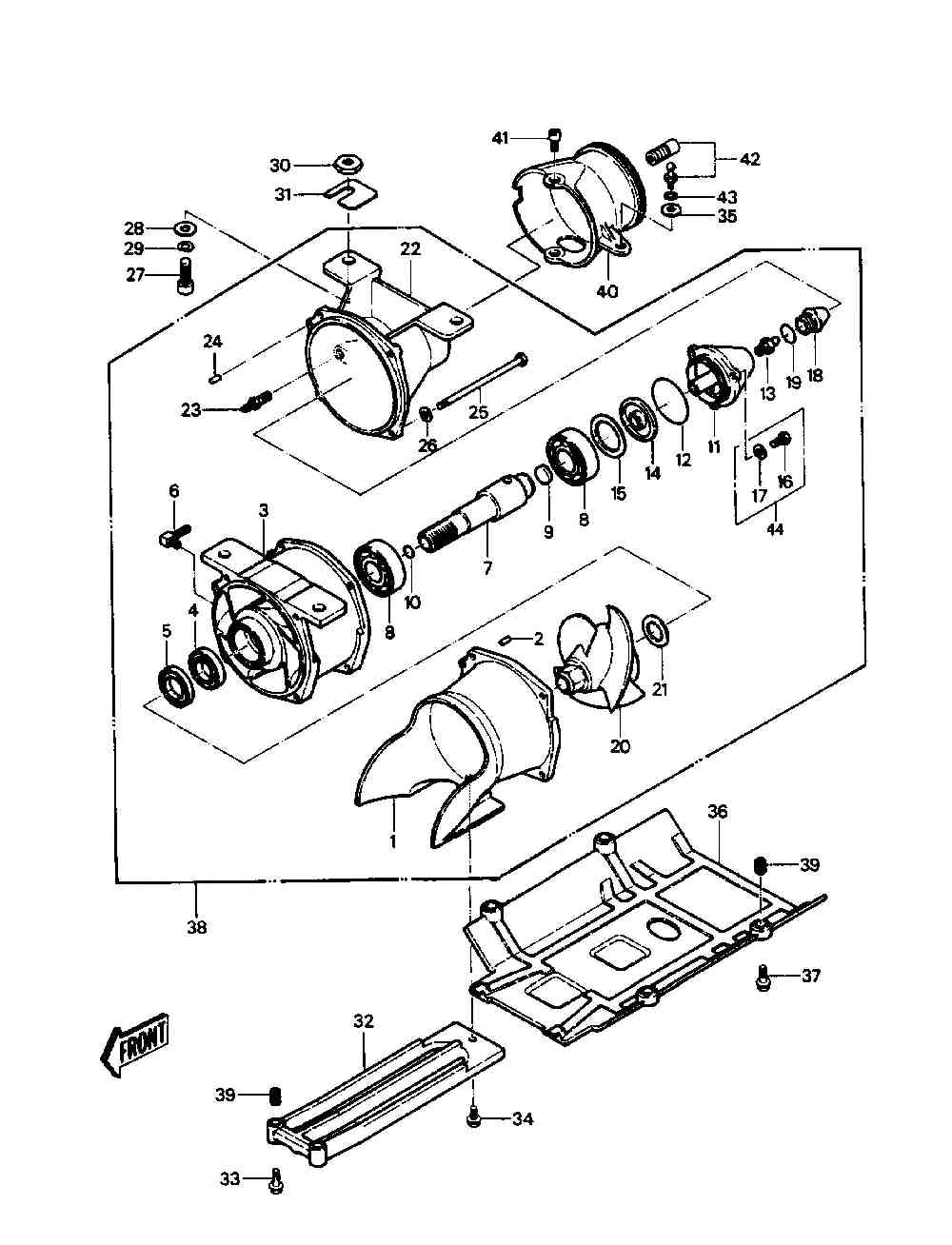

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CASE-PUMP | 1 | |
| 3 | VANE-GUIDE | 1 | |
| 4 | SEAL-OIL | 1 | |
| 5 | SEAL-OIL | 1 | |
| 6 | ELBOW | 1 | |
| 7 | SHAFTIMPELLER | 1 | |
| 8 | BALL BEARINGtahos_6206 | 2 | |
| 9 | PLUGSEAL CAP | 1 | |
| 10 | RING-O16.7MM | 1 | |
| 11 | CAPJET PUMP | 1 | |
| 12 | RING-O59.6MM | 1 | |
| 13 | NIPPLEGREASE | 1 | |
| 14 | PLUG | 1 | |
| 15 | SHIM 0.15T | 0 | |
| 15A | SHIM 0.3T | 0 | |
| 16 | BOLT 6X20 | 3 | |
| 17 | WASHER | 3 | |
| 18 | CAP-GREASE FITTING | 1 | |
| 19 | "0" RING20MM | 1 | |
| 20A | IMPELLER | 1 | |
| 21 | SHIM24.5X38X1.0 | 0 | |
| 21A | SHIM24.5X38X2.0 | 0 | |
| 21B | SHIM24.5X38X1.5 | 0 | |
| 22 | NOZZLE-PUMP | 1 | |
| 23 | FITTINGHOSE | 1 | |
| 24 | PINDOWEL | 1 | |
| 25 | BOLT6X125 | 4 | |
| 27 | BOLT-SOCKET | 4 | |
| 28 | WASHER | 4 | |
| 29 | WASHER-SPRING10MM | 4 | |
| 30 | NUT10M/M | 4 | |
| 31 | SHIMT=0.3 | 0 | |
| 31A | SHIM.T=0.5 | 0 | |
| 31B | SHIMT=1.0 | 0 | |
| 31C | SHIMT=1.5MM | 0 | |
| 32 | GRATE | 1 | |
| 33 | BOLT-WP6X25 | 2 | |
| 34 | BOLT6X16 | 1 | |
| 35 | WASHER | 1 | |
| 36 | COVER-JET PUMP | 1 | |
| 38 | PUMP-ASSY-JET | 1 | |
| 39 | NUT-INSERT6MM | 6 | |
| 40A | NOZZLE-STRG | 1 | |
| 41 | BOLTSOCKET6X11 | 2 | |
| 42 | JOINT-BALL | 1 | |
| 43 | WASHER-SPRING6MM | 1 |
