SEA-DOO GTX GTX 01- Engine - Model without Suspension

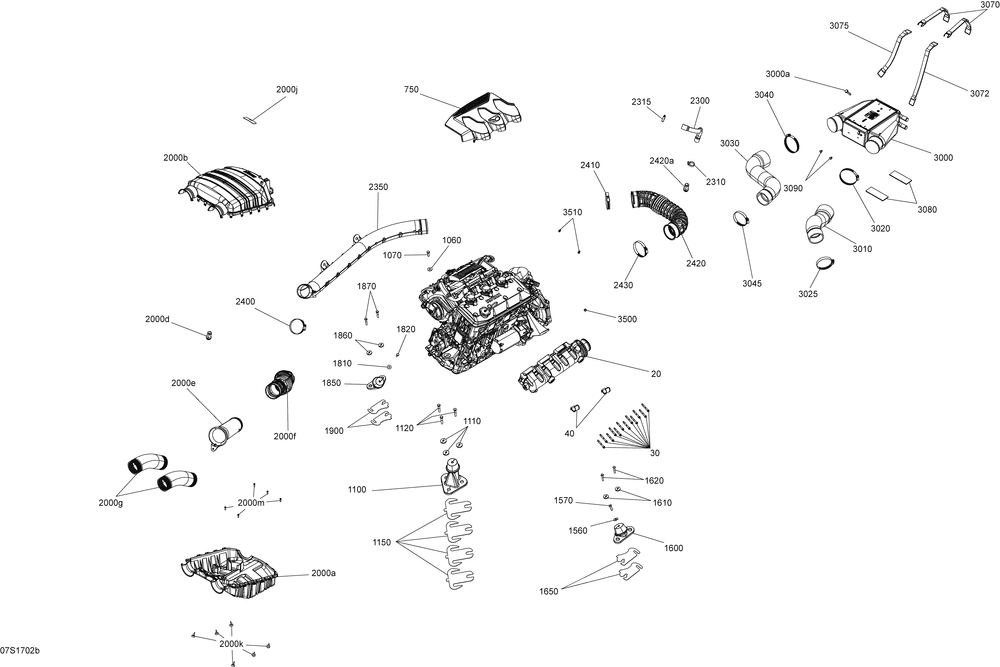

01- Engine - Model without Suspension
№ Наименование Примечание Кол-во
20 ENGINE EXHAUST MANIFOLD 1
30 FLANGED TORX SCREW M6 X 45 12
40 RETAINER 2
750 COVER ASS Y 1
1060 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 1
1070 HEX. SCREW M8 X 25 SCOTCH GRIP (10.000 per pack) 1
1100 RUBBER MOUNT 1
1110 RONDELLE CONIQ.*WASHER-CONE (2.000 per pack) 3
1120 HEXAGONAL HEAD CAP SCREW M8 X 45 3
1150 SHIM 1.3 MM 4
1600 RUBBER MOUNT 1
1650 SHIM 1.3 MM 2
2000a SILENCIEUX ADM.*AIRBOX BASE Model GTI / GTS & Package STD 1
2000a SILENCIEUX ADM.*AIRBOX BASE 1
2000b AIRBOX COVER Model GTI / GTS & Package STD 1
2000b AIRBOX COVER 1
2000d Breather 1
2000e TUBE. *INTAKE TUBE 1
2000f HOSE CONNECTOR 1
2000f HOSE CONNECTOR 1
2000g AIR SILENCER HOSE Package STD 2
2000j NOTICE DECAL AIR SILENCER Package STD 1
2000k Rubber Stopper 6
2000m Flanged Torx Screw K40 X 16 5
2300 FORMED HOSE Package STD 1
2300 FORMED HOSE 1
2310 Tridon Gear Clamp 1
2350 HOSE INTAKE 1
2400 TRIDON GEAR CLAMP Model with GTR 1
2420>2420a HOSE INTAKE REAR 1
3000>3000a REFROIDISSEUR *INTERCOOLER Incl Zinc Anode 271001942 1
3000>3000a REFROIDISSEUR *INTERCOOLER Incl Zinc Anode 271001942 1
3000a ANODE ZINC *ANODE ZINC Model GTR 1
3010 BOYAU ENTREE *INLET HOSE 1
3010 INLET HOSE Model GTR 1
3020 TRIDON GEAR CLAMP 1
3030 BOYAU SORTIE *OUTLET HOSE 1
3030 OUTLET HOSE Model GTR 1
3070 FUEL TANK STRAP 2
3072 SANGLE RES.ESS.*STRAP-FUEL TANK 1
3072 SANGLE RES.ESS.*STRAP-FUEL TANK 1
3075 FUEL TANK STRAP 1
3080 TAMPON CAOUT. *PAD-RUBBER 1
3090 DART BLACK (5.000 per pack) 2
3500 Tie-Rap 142 mm 1
