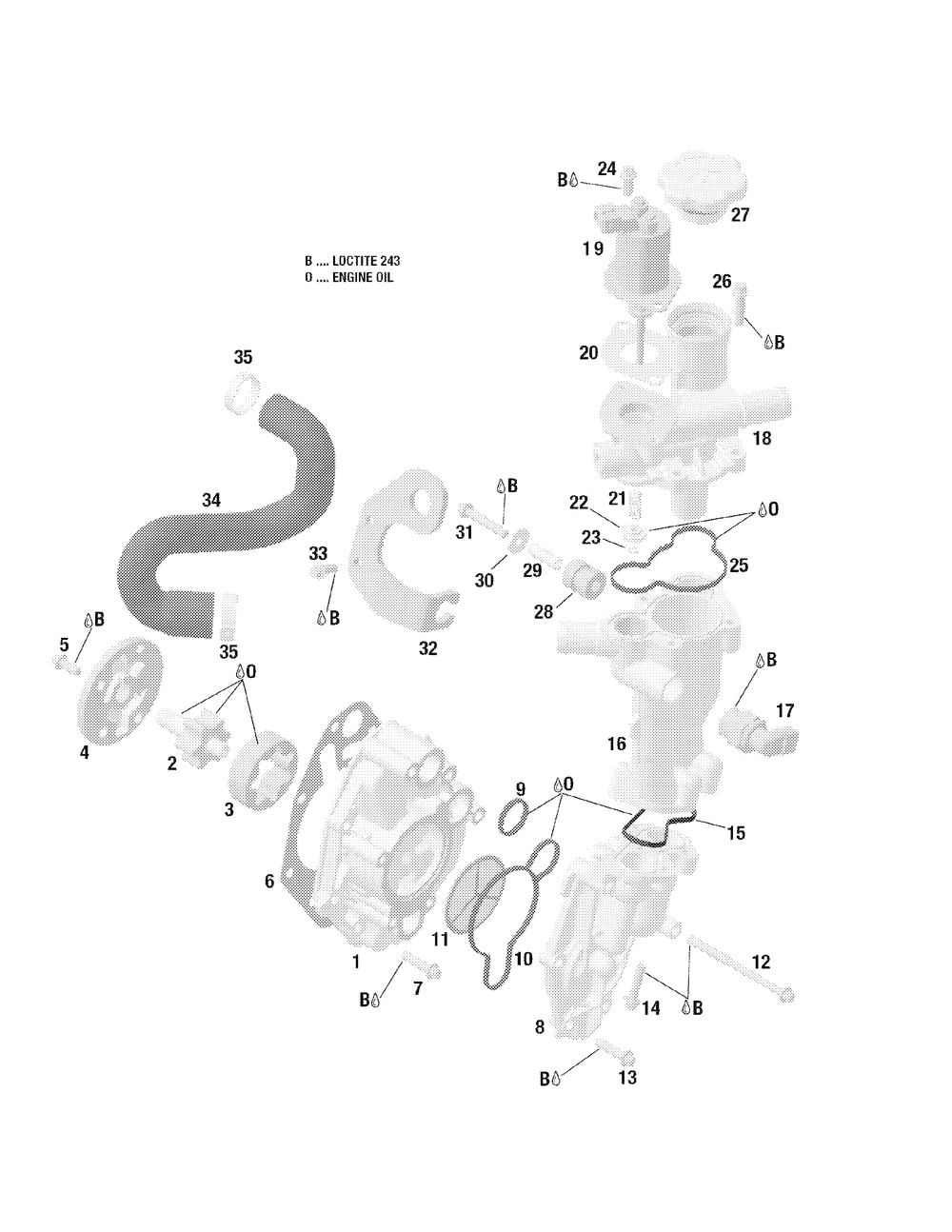

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| LOCTITE 243 10 ML | 0 | ||
| OETIKER CLAMP | 1 | ||
| 1 | OIL PUMP HOUSING | 1 | |
| 2 | PUMP SHAFT ASS Y | 1 | |
| 3 | OIL PUMP ROTOR 16 MM | 1 | |
| 4 | OIL PUMP COVER | 1 | |
| 5 | FLANGED TORX SCREW M6 X 16 (5.000 per pack) | 4 | |
| 6 | JOINT ETANCHE *GASKET | 1 | |
| 7 | FLANGED TORX SCREW M6 X 25 (5.000 per pack) | 5 | |
| 8 | OIL SIEVE COVER | 1 | |
| 9 | SEAL RING | 1 | |
| 10 | JOINT ETANCHE *GASKET | 1 | |
| 11 | OIL SIEVE | 1 | |
| 12 | FLANGED TORX SCREW M6 X 85 | 3 | |
| 15 | JOINT ETANCHE *GASKET | 1 | |
| 16 | OIL SEPARATOR HOUSING | 1 | |
| 17 | INTERR.PRESSION*OIL TK PRES SW | 1 | |
| 18 | OIL SEPARATOR COVER | 1 | |
| 19 | SOLENOID SHUT-OFF | 1 | |
| 20 | JOINT ETANCHE *GASKET | 1 | |
| 21 | COMPRESSION SPRING | 1 | |
| 22 | VALVE DISC | 1 | |
| 23 | RETAINING RING | 1 | |
| 25 | JOINT ETANCHE *GASKET | 1 | |
| 27 | PLUG COVER YELLOW | 1 | |
| 28 | RUBBER BRACKET | 1 | |
| 29 | SPACER | 1 | |
| 30 | FLAT WASHER M6 | 1 | |
| 31 | FLANGED TORX SCREW M6 X 35 (5.000 per pack) | 1 | |
| 32 | FRONT TRANSPORT BRACKET | 1 | |
| 34 | BOYAU FORME *FORM HOSE | 1 | |
| 35 | GEAR CLAMP (2.000 per pack) | 1 |
