SEA-DOO GSX Limited, 5629/5845 GSX Limited, 5629/5845 05- Propulsion System

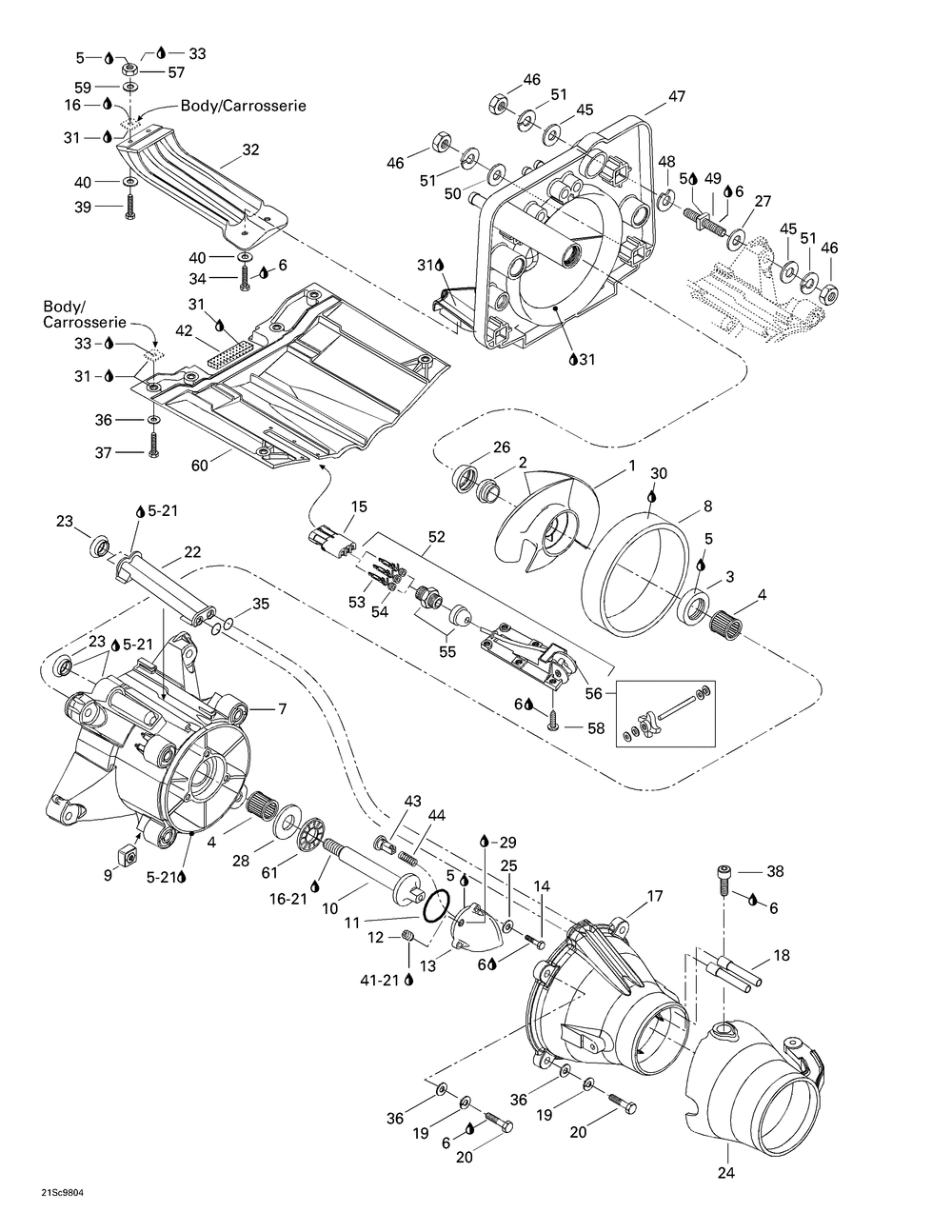

05- Propulsion System
№ Наименование Примечание Кол-во
HELICE STLSS.AS*IMPELLER-ASSY. 0
1 VENTURI BLACK 1
2 IMPELLER BOOT (2.000 per pack) 1
3 OIL SEAL 1
4 NEEDLE BEARING 2
5 LOCTITE 518 50 ML 0
6 LOCTITE 243 10 ML 0
7 NEOPRENE SEAL Includes 7 - 9. 1
8 BAGUE D USURE *WEAR RING 1
9 SQUARE NUT M8 (5.000 per pack) 4
10 ARBRE HELICE *SHAFT-IMPELLER 1
11 O-RING (10.000 per pack) 1
12 PIPE PLUG SOCKET HEAD 1/8-27 NPT (5.000 per pack) 1
13 COUVERCLE TURB.*COVER-IMPELLER 1
14 SCREW-SOCKET HD.DIN.912A2 (25.000 per pack) 3
15 FEMALE TERMINAL HOUSING 3 CIRCUITS (5.000 per pack) 1
16 LOCTITE 271 10 ML 0
17 VENTURI NOIR *VENTURI Includes 17 - 18. 1
18 SIPHON TUBE (10.000 per pack) 2
19 WASHER-LOCK HELICAL DIN.127B-A2 (10.000 per pack) 4
20 HEX. SCREW M8 X 45 (5.000 per pack) 4
21 (ORM-D) LOCTITE PRIMER N 128 G 0
22 WATER OUTLET 1
23 WATERTIGHT SEAL 3
24 NOZZLE BLACK 1
25 FLAT WASHER M5 STAINLESS (10.000 per pack) 3
26 IMPELLER RING (10.000 per pack) 1
27 WASHER-FLAT 4
28 THRUST WASHER (5.000 per pack) 1
29 HUILE DE POMPE *OIL-PUMP (12.000 per pack) 0
31 INSTANT GASKET 40479 (ORM-D) 0
32 PUMP GRATE 1
33 SILICONE SEALANT 51388 300 ML 0
34 HEX. SCREW M6 X 16 (5.000 per pack) 2
35 O-RING (10.000 per pack) 2
36 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 10
37 HEX. SCREW M8 X 30 (5.000 per pack) 6
38 Socket Head Screw M8 X 10, Scotch Grip 2
39 HEX. SCREW M6 X 35 (10.000 per pack) 2
40 FLAT WASHER M6 STAINLESS (25.000 per pack) 4
41 LOCTITE PIPE SEALANT 250 ML 0
42 Neoprene Seal Meter 0
43 POUSSOIR *PUSHER 1
44 RESSORT *SPRING (4.000 per pack) 1
45 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 6
46 HEX. NUT M10 (5.000 per pack) 8
47 SUPPORT POMPE *SUPPORT-PUMP 1
48 SHIM 0.3 MM (5.000 per pack) 0
49 SQUARE STUD 4
50 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
51 HELICOIDAL LOCK WASHER M10 (5.000 per pack) 8
52 WIRE SEAL Includes 63 - 67. (10.000 per pack) 1
53 Male Terminal 3
54 Wire Seal 3
55 ELECTRIC CONNECTION GTI RFI LE 1
56 PADDLE WHEEL KIT GTI RFI LE 1
57 HEX. ELASTIC STOP NUT M6 (5.000 per pack) 2
58 PHILLIPS SCREW M5 X 10 (5.000 per pack) 6
59 FLAT WASHER M6 STAINLESS (10.000 per pack) 2
60 RIDING PLATE BLACK 1
61 PALIER A BUTEE *THRUST-BEARING 1
