SEA-DOO GTX S 155 GTX S 155 10- Electrical System _09S1404

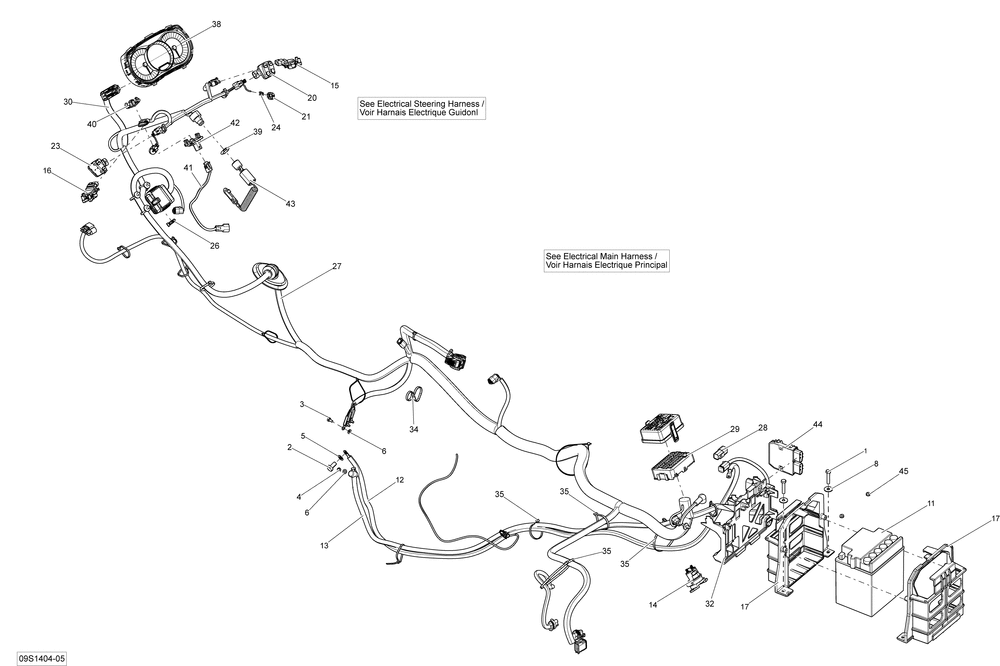

10- Electrical System _09S1404
№ Наименование Примечание Кол-во
1 HEX. SCREW M8 X 40 (5.000 per pack) 2
2 HEX. SCREW M10 X 20 SCOTCH GRIP (5.000 per pack) 1
3 HEX. SCREW M6 X 12 SCOTCH GRIP (25.000 per pack) 3
4 Elastic Stop Nut M6, Brass 3
5 Flat Washer 10 mm Stainless 1
6 Flat Washer M6, Stainless 4
8 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 2
11 BATTERIE YB30CLB*BATTERY AMP(DRY) Includes 18 to 19 1
12 BATTERY GROUND CABLE 1
13 STARTER CABLE 1
14 Starter Relay 1
15 RH THROTTLE SENSOR 1
16 LH THROTTLE SENSOR 1
17 SUPP. BATT. *BATT. SUPPORT 2
20 SWITCH 1
21 SWITCH START/STOP 2
23 SWITCH 1
24 Housing JAE 2 Circuits 1
26 Clip (double dart) 1
27 MAIN WIRING HARNESS Includes 101 To 2057 1
28 DIAGNOSTIC CONNECTOR 1
30 WIRING HARNESS ASS Y Includes 1 to 2055 1
32 SUPPORT 1
34 TIE RAP 300MM (5.000 per pack) 1
35 Tie-Rap 350 mm 0
35 TIE RAP 533 MM (20.000 per pack) 0
35 Tie-Rap 180 mm 0
38 CADRAN INFO *LCD GAUGE 1
39 Safety Nut (DESS Switch) 1
40 O.T.A.S ACTUATOR 1
41 O.T.A.S. SENSOR ASS Y 1
42 O.T.A.S. SENSOR 1
43 SAFETY LANYARD LEARNING KEY 1
44 VOLTAGE REGULATOR 1
45 Battery Bolt Kit 1
