SEA-DOO GTI 90 GTI 90 09- Hull GTI - 900 HO ACE

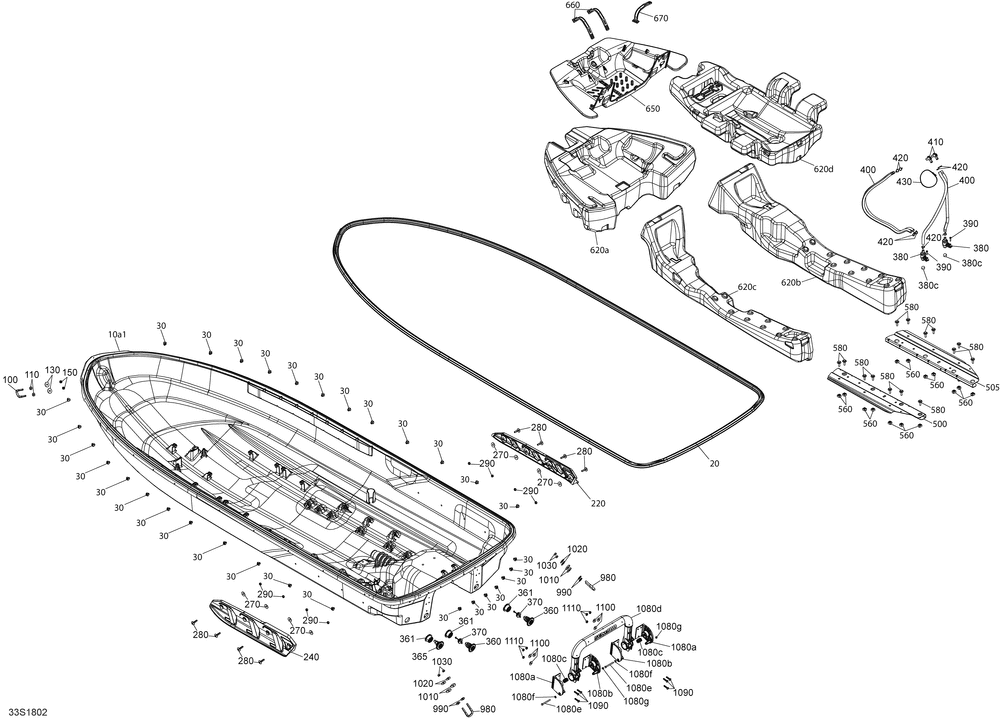

09- Hull GTI - 900 HO ACE
№ Наименование Примечание Кол-во
10 HULL Includes 10 to 10a1 1
10a INSERT HULL KIT 1
10a1 TORX SCREW M6 X 20 10
20 SEAL 1
30 LOGEMENT *INSERT 31
100 U-CLAMP 1
110 FLAT WASHER (5.000 per pack) 2
130 FLAT WASHER 8 MM STAINLESS (5.000 per pack) 2
150 Hex. Elastic Nut M8, Brass 2
220 RIGHT SPONSON 1
240 LEFT SPONSON 1
280 TORX SCREW M8 X 35 8
360 DRAIN ASS Y 2
361 DOUILLE *BUSHING 3
365 DRAIN NECK ASS Y 1
370 PLUG ASS Y 2
380 BAILER PICK-UP ASS Y 2
380c FLOATING BALL 1
390 HEX SCREW 10 14 X 7/8" (5.000 per pack) 2
400 POLYURETHANE HOSE (1000.00 per pack) 4
410 FITTING ELBOW 90 2
420 Tie-Rap 94 mm 8
430 Tie-Rap 350 mm 1
500 LH HULL STIFFENER 1
505 RH HULL STIFFENER 1
560 Elastic Nut Housing M8 14
580 HEX SEMS SCREW M8 X 30 14
620a LOWER FRONT FOAM 1
620b RIGHT FOAM 1
620c LEFT FOAM 1
620d FUEL TANK FOAM 1
650 TRUNK SHIELD 1
660 SANGLE *STRAP 2
990 FLAT WASHER 4
1080a A SECTION SUPPORT 2
1080b B SECTION SUPPORT 2
1080c SPRING 2
1080d OVERMOLDED BAR 1
1080e HEX. SCREW M6 X 65 Produced Before February 01 2010 (10.000 per pack) 2
1080f Flat Washer M6, Stainless 2
1080g Hex. Elastic Stop Nut M6 2
1090 SCREW-TORX TRUSS CONE HD.M6X30 SE 6
1100 Flat Washer M6, Stainless 6
1110 Elastic Stop Nut M6, Brass 6
