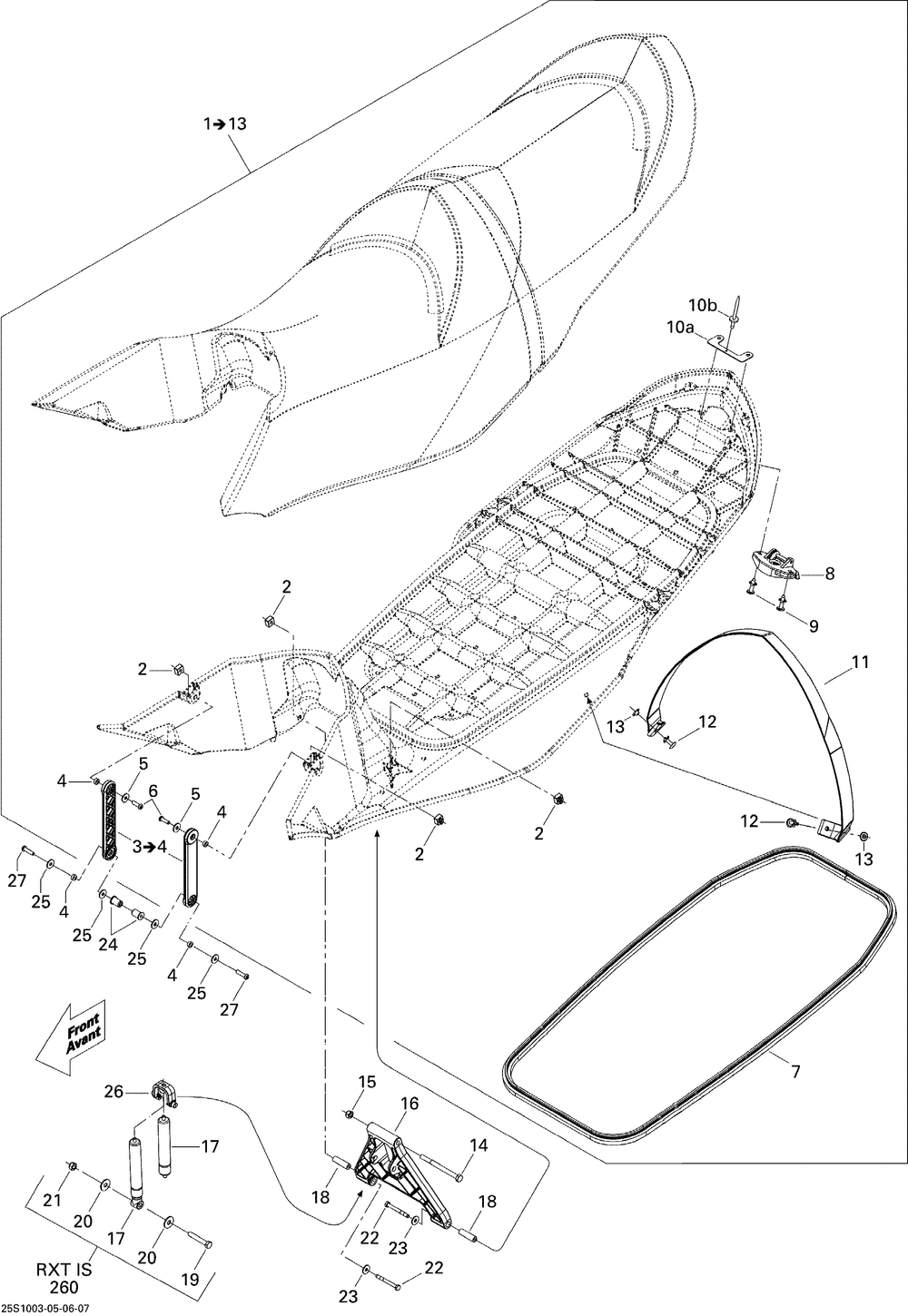

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SEAT ASS Y Includes 1 to 13 | 1 | |
| 2 | Nut Housing Ass'y | 4 | |
| 3 | LATERAL ARM | 2 | |
| 5 | Flat Washer M6, Stainless | 2 | |
| 6 | SOCKET SCREW M6 X 20 (10.000 per pack) | 2 | |
| 7 | JOINT ETANCHE *SEAL (3.000 per pack) | 0 | |
| 8 | LATCH ASS Y | 1 | |
| 9 | RIVET-BLIND1/4 *RIVETBLIND 1/4 | 2 | |
| 10b | POP RIVET 1/8 (25.000 per pack) | 1 | |
| 11 | SEAT STRAP | 1 | |
| 12 | RIVET TRI-FAST *RIVET-TRI-FAST (10.000 per pack) | 2 | |
| 13 | GROMMET | 2 | |
| 14 | HEX. SCREW M8 X 100 (4.000 per pack) | 1 | |
| 15 | Hex. Elastic Nut M8, Brass | 1 | |
| 16 | CENTER ARM | 1 | |
| 17 | AMORTISSEUR *SHOCK | 1 | |
| 18 | SPACER | 2 | |
| 19 | HEX. SCREW M8 X 50 (5.000 per pack) | 1 | |
| 20 | FLAT WASHER 8 MM STAINLESS (10.000 per pack) | 2 | |
| 22 | HEX. SCREW M6 X 55 SCOTCH GRIP | 2 | |
| 24 | EXPANSION NUT M6 X 1 (10.000 per pack) | 2 | |
| 26 | EMBOUT CYLINDRE*END FITTING | 1 | |
| 27 | SOCKET HEAD SCREW M6 X 25 SCOTCH GRIP (10.000 per pack) | 2 |
