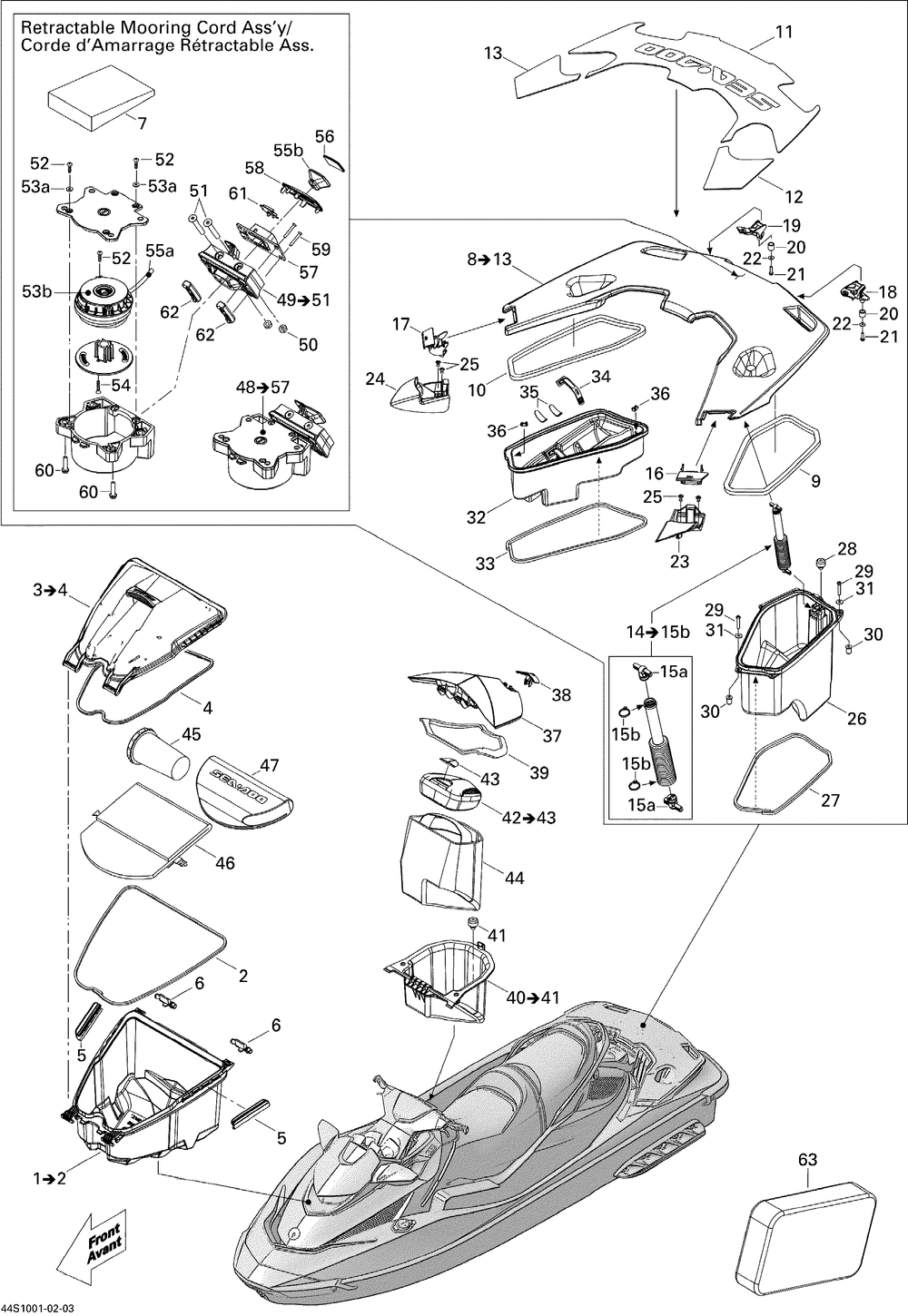

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | STORAGE BIN ASS Y Includes 1 to 2 | 1 | |
| 2 | Gasket | 0 | |
| 3 | STORAGE BIN COVER ASS Y | 1 | |
| 4 | NEOPRENE SEAL | 1 | |
| 5 | CLIP | 2 | |
| 6 | LATCH | 2 | |
| 8 | REAR PLATFORM ASS Y | 1 | |
| 9 | JOINT ETANCHE *GASKET | 0 | |
| 11 | REAR PLATFORM CARPET | 1 | |
| 12 | LH PLATFORM CARPET | 1 | |
| 13 | RH PLATFORM CARPET | 1 | |
| 14 | SHOCK ASS Y | 1 | |
| 15a | SHOCK END PIECE | 2 | |
| 15b | Tie-Rap 94 mm | 2 | |
| 16 | LH LATCH | 1 | |
| 17 | RH LATCH | 1 | |
| 18 | LH PIVOT SUPPORT | 1 | |
| 19 | RH PIVOT SUPPORT | 1 | |
| 20 | SPACER | 2 | |
| 21 | HEX. FLANGED SCREW M6.81 X 25 PLASTITE (5.000 per pack) | 2 | |
| 22 | Flat Washer M6, Stainless | 2 | |
| 23 | LH LATCH BASE BLACK | 1 | |
| 24 | RH LATCH BASE BLACK | 1 | |
| 25 | POP RIVET 3/16" (5.000 per pack) | 4 | |
| 26 | LH TRAY | 1 | |
| 27 | JOINT ETANCHE *GASKET (3.000 per pack) | 0 | |
| 28 | Rubber Bumper | 1 | |
| 29 | SOCKET HEAD SCREW M6 X 35 (5.000 per pack) | 4 | |
| 30 | EXPANSION NUT M6 X 1 (10.000 per pack) | 4 | |
| 32 | RH REAR TRAY | 1 | |
| 34 | SANGLE *STRAP | 1 | |
| 35 | TRAY PAD | 2 | |
| 36 | Tuflok Plastic Rivet | 2 | |
| 37 | GLOVE DOOR SCARLET RED | 1 | |
| 38 | LATCH BLACK | 1 | |
| 39 | JOINT ETANCHE *GASKET | 1 | |
| 40 | GLOVE BOX ASS Y | 1 | |
| 58 | REAR REWIND CAP | 1 |
