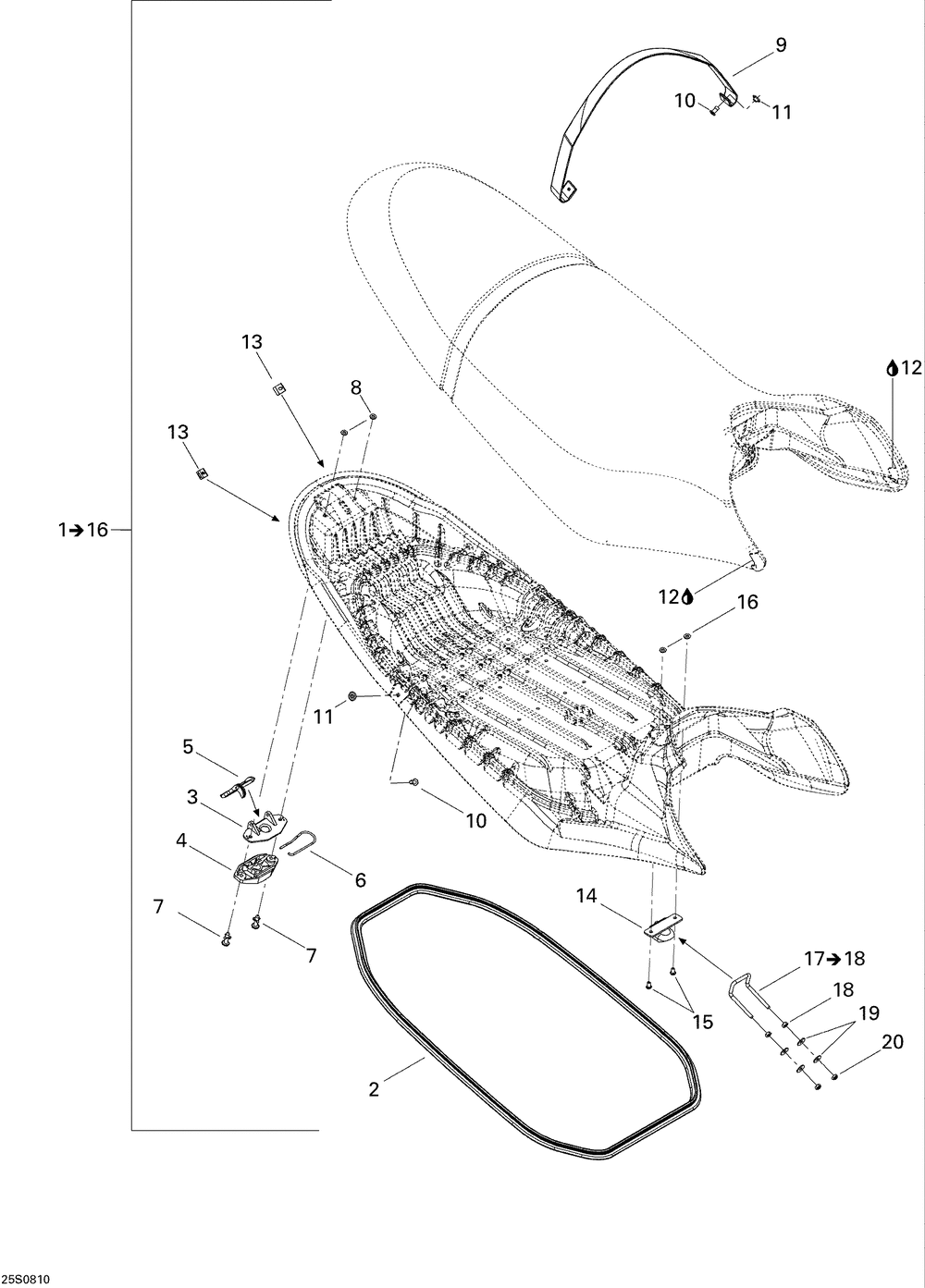

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SEAT ASS Y Includes 1 to 13 | 1 | |
| 2 | JOINT ETANCHE *SEAL (3.000 per pack) | 0 | |
| 3 | LATCH COVER | 1 | |
| 4 | LATCH ASS Y | 1 | |
| 5 | LATCH ASS Y | 1 | |
| 6 | LATCH SPRING (3.000 per pack) | 1 | |
| 7 | RIVET-BLIND1/4 *RIVETBLIND 1/4 | 2 | |
| 8 | Flat Washer M6, Stainless | 2 | |
| 9 | SEAT STRAP | 1 | |
| 10 | POP RIVET (10.000 per pack) | 2 | |
| 11 | GROMMET | 2 | |
| 12 | LOCTITE 414 29.5 CC | 0 | |
| 13 | QUARTER-TURN NUT | 2 | |
| 14 | SEAT HOOK | 1 | |
| 17 | U-CLAMP ROD (Includes 23 to 24 ) | 1 | |
| 18 | Hex. Nut M6 | 2 | |
| 19 | Flat Washer M6, Stainless | 4 | |
| 20 | Elastic Stop Nut M6, Brass | 2 |
