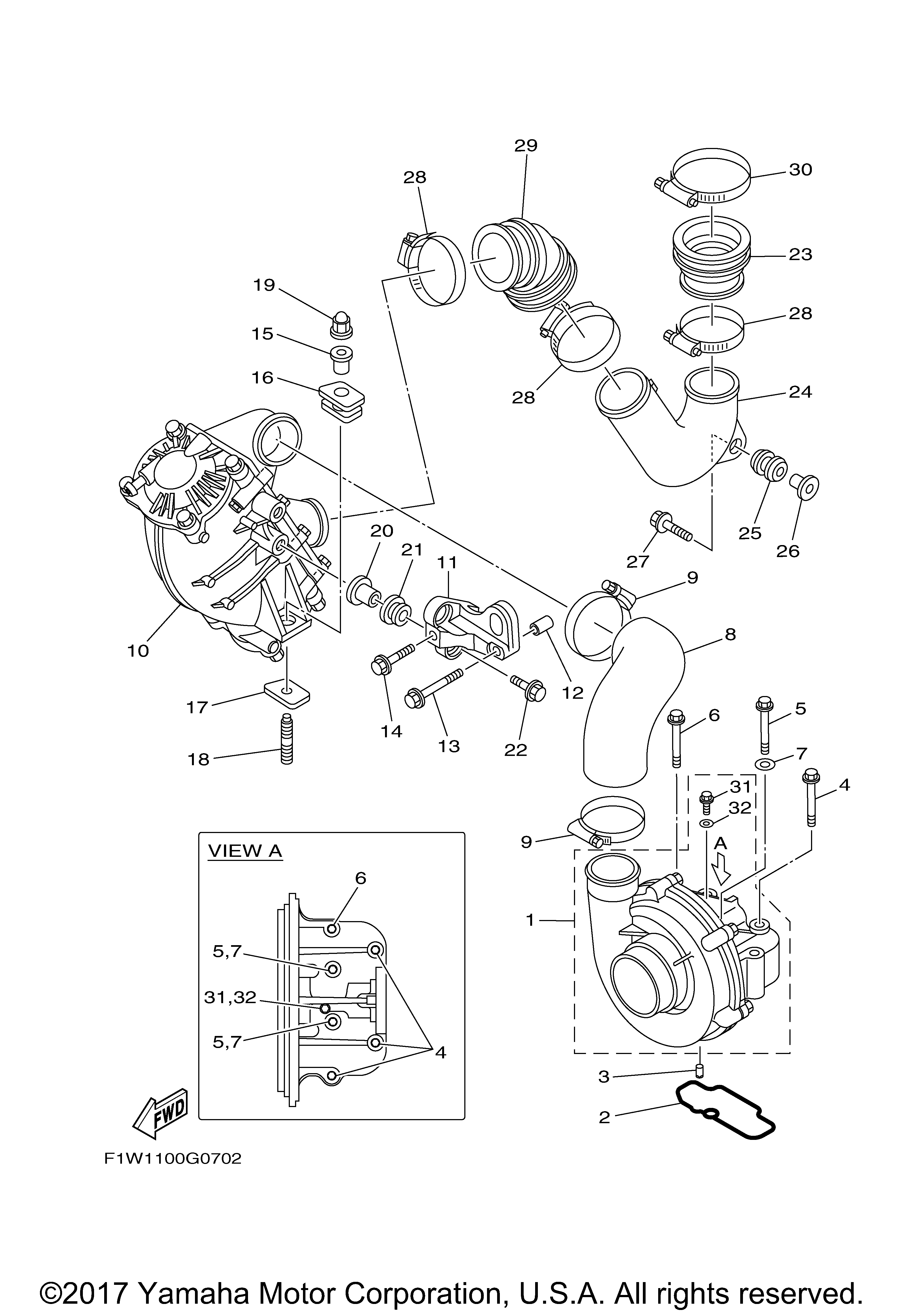

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SUPER CHARGER ASSY | 1 | |
| 2 | O-RING | 1 | |
| 3 | PINDOWEL (5 per pack) | 2 | |
| 4 | BOLTFLANGE | 3 | |
| 5 | BOLT FLANGE | 2 | |
| 6 | BOLT FLANGE | 1 | |
| 7 | WASHER PLATE | 2 | |
| 8 | PIPE | 1 | |
| 9 | HOSE CLAMP ASSY | 2 | |
| 10 | AIR COORER ASSY. | 1 | |
| 11 | BRACKET AIR COOLER | 1 | |
| 12 | PIN DOWEL | 2 | |
| 13 | BOLT WITH WASHER | 1 | |
| 14 | BOLT WITH WASHER | 1 | |
| 15 | COLLAR | 1 | |
| 16 | GROMMET | 1 | |
| 17 | PLATE | 1 | |
| 18 | BOLT STUD | 1 | |
| 19 | NUT CROWN | 1 | |
| 20 | COLLAR | 2 | |
| 21 | GROMMET | 2 | |
| 22 | BOLT WITH WASHER | 2 | |
| 23 | PIPE INTAKE | 1 | |
| 24 | PIPE BOOST | 1 | |
| 25 | GROMMET | 1 | |
| 26 | COLLAR | 1 | |
| 27 | BOLTWITH WASHER | 1 | |
| 28 | HOSE CLAMP ASSY | 3 | |
| 29 | PIPE | 1 | |
| 30 | HOSE CLAMP ASSY | 1 | |
| 31 | BOLT FLANGE | 1 | |
| 32 | GASKET | 1 |
