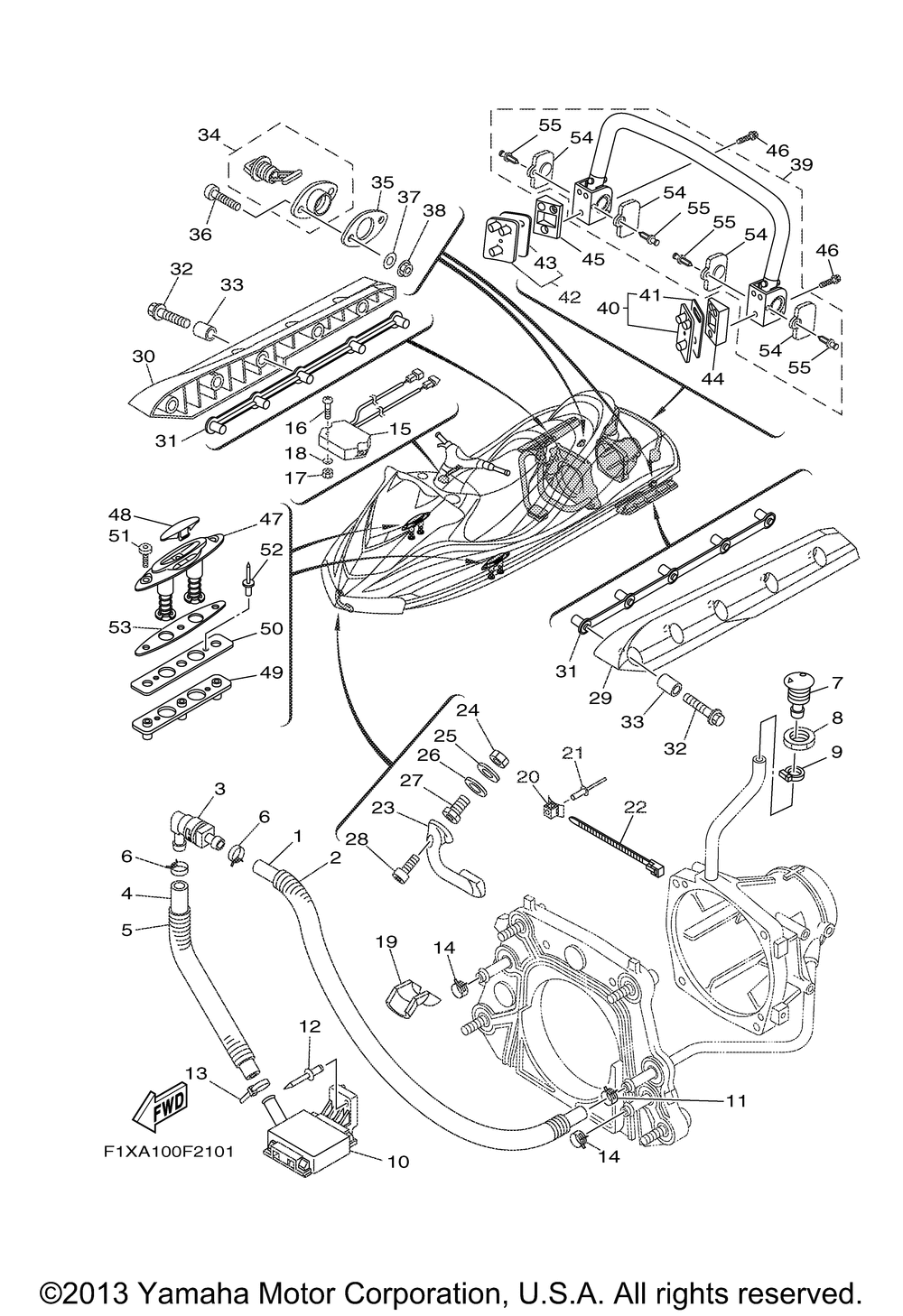

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE (L860) | 1 | |
| 2 | HOSE (L700) | 1 | |
| 3 | JOINT HOSE | 1 | |
| 4 | HOSE (L500) | 1 | |
| 5 | HOSE(63M) (L400) | 1 | |
| 6 | CLIP | 2 | |
| 7 | SPOUT | 1 | |
| 8 | NUT | 1 | |
| 9 | BAND HOSE (5 per pack) | 1 | |
| 10 | STRAINER BILGE | 1 | |
| 11 | CLIPSCISSOR | 1 | |
| 12 | RIVET BLIND (10 per pack) | 1 | |
| 13 | BAND HOSE 50 (5 per pack) | 2 | |
| 14 | CLIP | 2 | |
| 15 | SENSOR COMPASS | 1 | |
| 16 | SCREW PAN HEAD | 2 | |
| 17 | NUT FLANGE | 2 | |
| 18 | WASHER | 2 | |
| 19 | TRIM 1 | 1 | |
| 20 | CLAMP | 3 | |
| 21 | RIVETBLIND (5 per pack) | 3 | |
| 22 | CLAMP (5 per pack) | 3 | |
| 23 | BOWEYE 1 | 1 | |
| 24 | NUTHEX(COARSE) (COARS) | 2 | |
| 25 | WASHER | 2 | |
| 26 | WASHER | 2 | |
| 27 | NUT (BOLT/NUT) (BOLT/NUT) | 2 | |
| 28 | BOLT HEXAGON SOCKET | 2 | |
| 29 | STABILIZER LH (BLACK BLACK | 1 | |
| 30 | STABILIZER RH (BLACK BLACK | 1 | |
| 31 | BRACKETSTABILIZER | 2 | |
| 32 | BOLTWASHER BASED | 10 | |
| 33 | SPACER | 10 | |
| 34 | DRAIN PLUG ASSY | 2 | |
| 35 | PACKING DRAIN | 2 | |
| 39 | LADDER STEP ASSY | 1 | |
| 40 | BRACKET LADDER LH | 1 | |
| 41 | PACKING BRKT. 1 | 1 | |
| 42 | BRACKET LADDER RH | 1 | |
| 44 | BRACKET 1 | 1 | |
| 45 | BRACKET 2 | 1 | |
| 46 | BOLTWITH WASHER | 6 | |
| 47 | CLEAT ASSY. | 2 | |
| 48 | COVER | 2 | |
| 49 | BRACKET | 2 | |
| 50 | PACKING | 2 | |
| 51 | BOLTHEX. SOCKET BUTTON | 6 | |
| 52 | RIVET BLIND | 4 | |
| 53 | PACKING | 2 | |
| 54 | INNER COVER SIDE 1 | 4 | |
| 55 | PIN | 4 |
