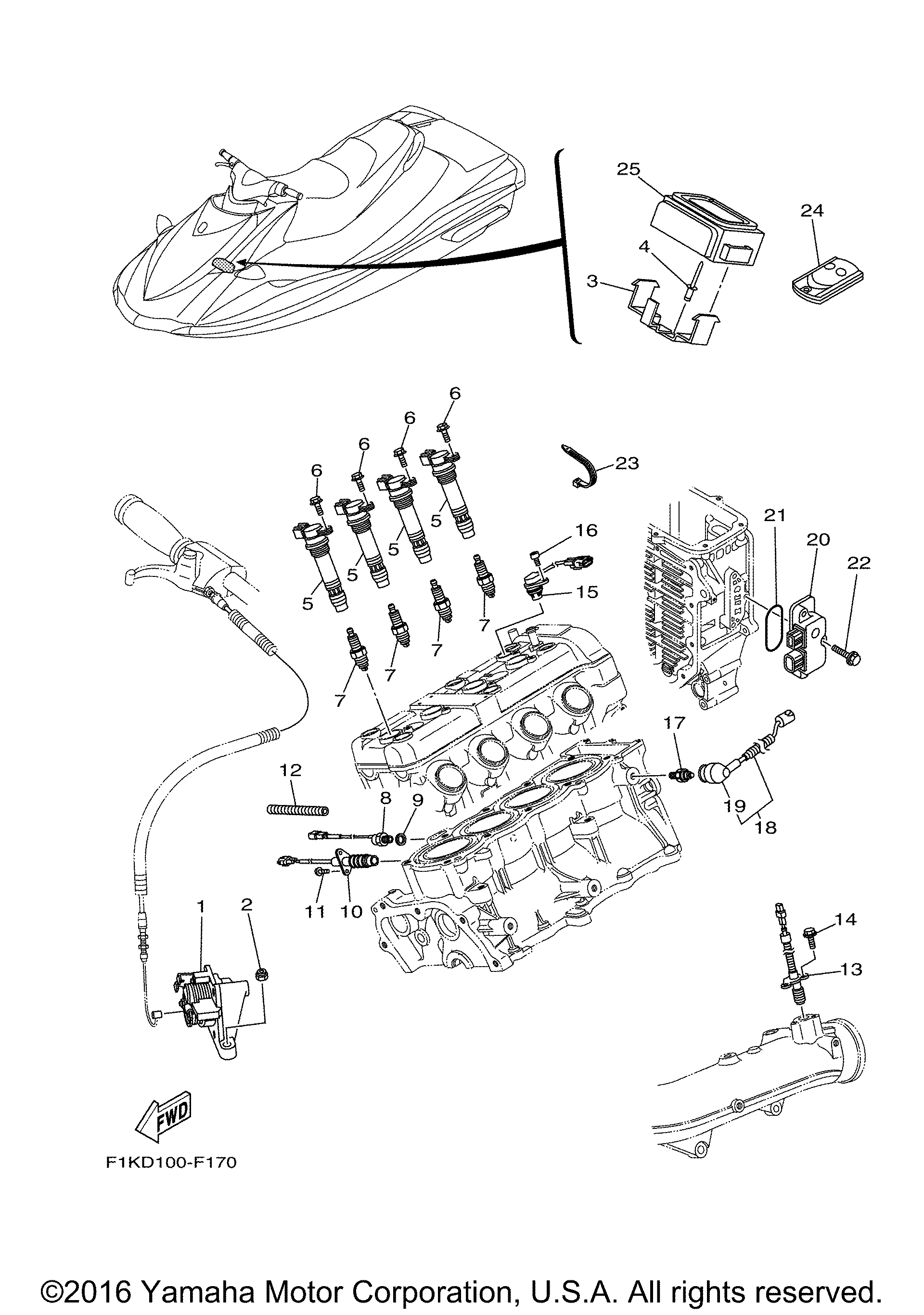

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ACCEL. POSITON SENSO | 1 | |
| 2 | NUT SELF-LOCKING | 2 | |
| 3 | BRACKET | 1 | |
| 4 | RIVET BLIND | 2 | |
| 5 | IGNITION COIL ASSY | 4 | |
| 6 | BOLT | 4 | |
| 7 | CR9EB NGK SPLUG 10 (NGK CR9EB) (10 per pack) | 4 | |
| 8 | THERMOSENSOR ASY | 1 | |
| 9 | WASHER (5 per pack) | 1 | |
| 10 | THERMO SWITCH ASSY | 1 | |
| 11 | BOLT W/WASHER | 2 | |
| 12 | TUBE (L180) | 1 | |
| 13 | THERMO SWITCH ASSY | 1 | |
| 15 | SENSOR CAM POSITION | 1 | |
| 16 | BOLT | 1 | |
| 17 | OIL PRESSURE SWITCH | 1 | |
| 18 | LEAD WIRE ASSY | 1 | |
| 19 | CAP | 1 | |
| 20 | EARTH PLATE COMP. | 1 | |
| 21 | O-RING | 1 | |
| 22 | BOLT WITH WASHER | 3 | |
| 23 | CLAMP (5 per pack) | 2 | |
| 24 | TRANSMITTER COMP | 1 | |
| 25 | RECIVER COMP | 1 |
