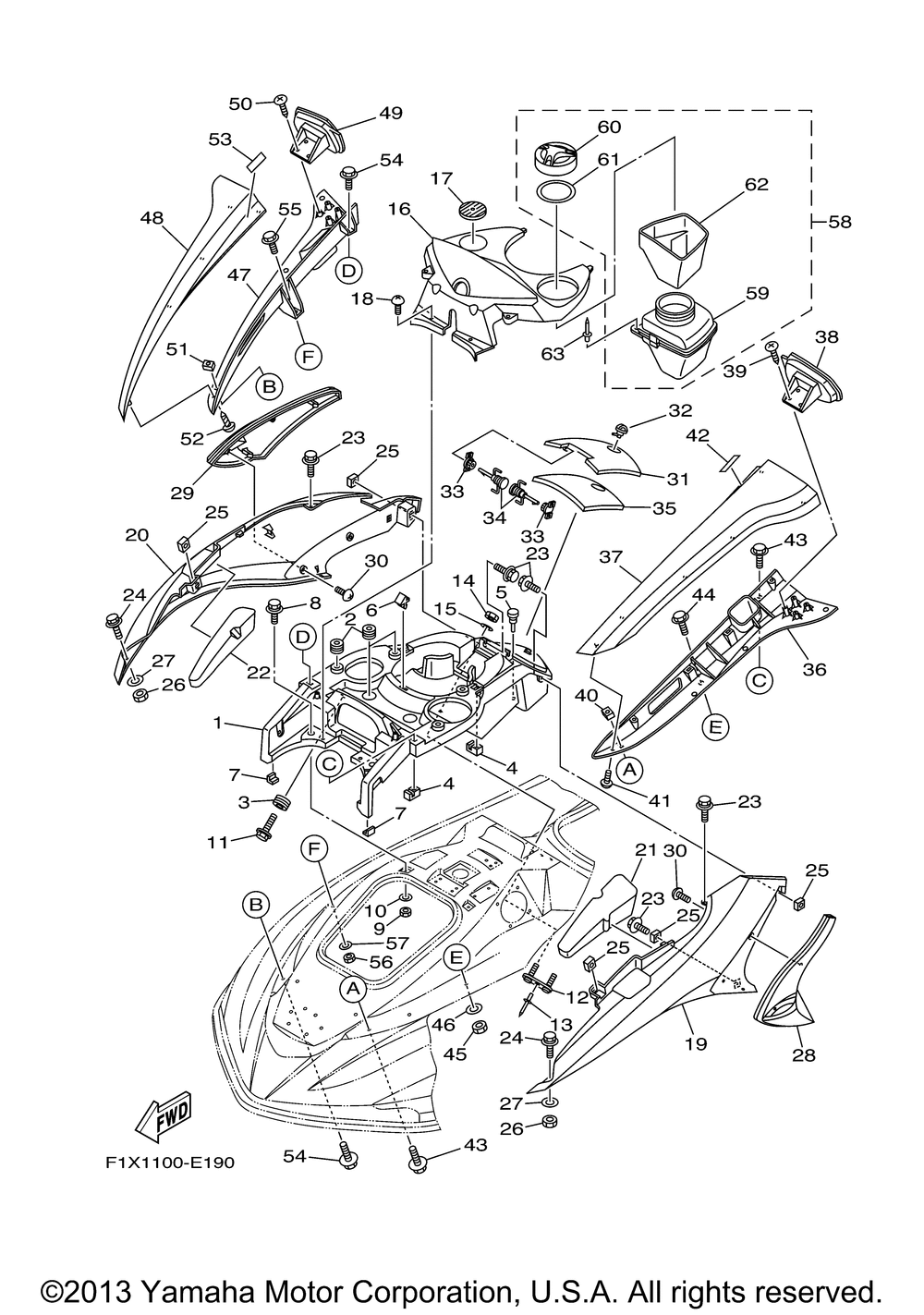

ENGINE HATCH 1

№	Наименование	Кол-во
1	CENTER COVER COMP.	1
2	DAMPER 1	6
3	GROMMET	4
4	NUT	4
5	PLUG	1
6	PACKING 4	1
7	TRIMHATCH 1	2
8	BOLT WITH WASHER	1
9	NUT FLANGE	2
10	WASHER (5 per pack)	2
11	BOLT WITH WASHER	4
12	BRACKET	1
13	RIVETBLIND (5 per pack)	1
16	COVER METER(LT. GRAY LNMP	1
16	COVER METER (BLACK) SMF	1
16	COVER METER DNMC	1
17	MAT	1
18	SCREW (GH1)	4
19	COVERSIDE 1(G.H.MET NYM4	1
19	COVERSIDE 1(LT GRAY LNMP	1
19	COVERSIDE 1(YELLOW YM3	1
19	COVERSIDE 1 (BLUE) DPBMT	1
20	COVERSIDE 2(G.H.MET NYM4	1
20	COVERSIDE 2(LT GRAY LNMP	1
20	COVERSIDE 2 (BLUE) DPBMT	1
20	COVERSIDE 2(YELLOW YM3	1
21	INNER COVER SIDE	1
22	INNER COVER SIDE	1
23	BOLTWITH WASHER	8
28	ORNAMENT SIDE LH	1
29	ORNAMENT SIDE RH	1
31	LID HATCH	1
32	LOCK	1
33	GEAR ASSY	2
34	PIN HINGE	2
35	PACKING CASE	1
36	CVR MIRROR LWR LH LT LNMP	1
36	CVR MIRROR LWR LH(CA UR DNMC FOR LNMP	1
36	CVR MIRROR LWR LH (B SMF	1
37	CVR MIRROR UPR LH(CA UR DNMC FOR LNMP	1
37	CVR MIRROR UPR LH(BL SMF	1
37	COVER MIRROR UPPE LNMP	1
38	MIRROR LH (BLACK)	1
38	MIRROR LH (GRAY)	1
42	PACKING 3	1
47	CVR MIRROR LWR RH(CA UR DNMC FOR LNMP	1
47	CVR MIRROR LWR RH(BL SMF	1
47	CVR MIRROR LWR RH LT LNMP	1
48	COVER MIRROR UPPE LNMP	1
48	CVR MIRROR UPR RH (B SMF	1
48	CVR MIRROR UPR RH(CA UR DNMC FOR LNMP	1
49	MIRROR RH (BLACK)	1
49	MIRROR RH (GRAY)	1
58	CASE ASSY 1	1
59	BODY CASE 1	1
60	CAPCASE	1
61	PACKING CASE	1
62	BODY CASE 1	1
63	RIVET 1	2
