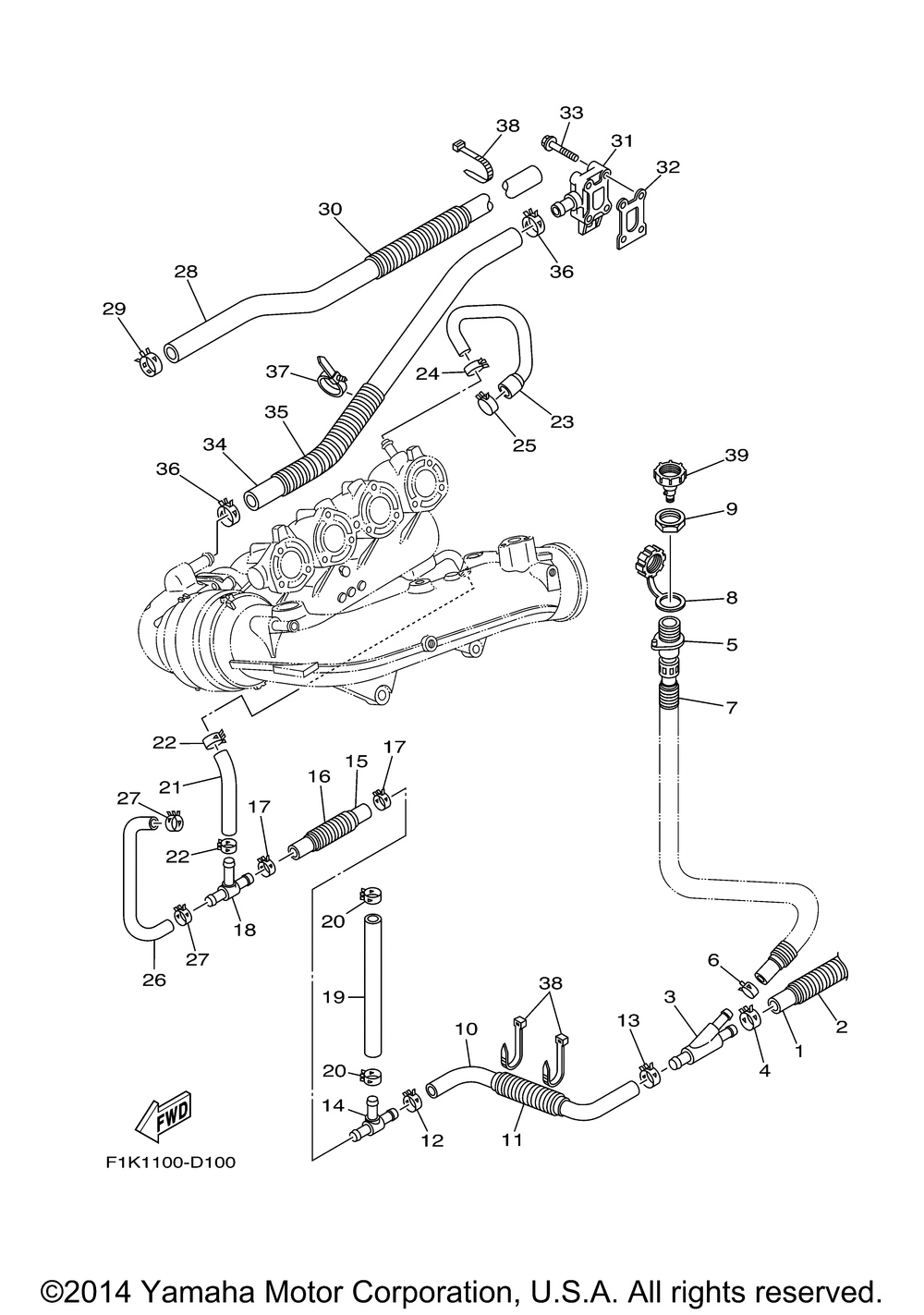

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE (L300) | 1 | |
| 2 | HOSE WITH SPRING (L200) | 1 | |
| 3 | JOINT HOSE 1 | 1 | |
| 4 | CLIP | 1 | |
| 5 | JOINT ASY | 1 | |
| 6 | CLIP | 1 | |
| 7 | HOSE (L230) | 1 | |
| 8 | CAP1 | 1 | |
| 9 | NUT | 1 | |
| 10 | HOSE 1 | 1 | |
| 14 | JOINT HOSE 3 | 1 | |
| 15 | HOSE 6 (L130) | 1 | |
| 16 | HOSE WITH SPRING (L100) | 1 | |
| 18 | JOINT HOSE 3 | 1 | |
| 19 | HOSE 5 (L180) | 1 | |
| 20 | CLIP | 2 | |
| 21 | HOSE (L108) | 1 | |
| 23 | HOSE 2 | 1 | |
| 26 | HOSE 4 | 1 | |
| 28 | HOSE (L1010) | 1 | |
| 29 | CLIP | 1 | |
| 30 | HOSE WITH SPRING (L200) | 1 | |
| 31 | JOINT | 1 | |
| 32 | GASKET | 1 | |
| 33 | BOLT FLANGE | 4 | |
| 34 | HOSE (L530) | 1 | |
| 37 | CLAMP | 1 | |
| 38 | CLAMP (5 per pack) | 3 | |
| 39 | CONDUCTION ASSY (US) | 1 |
