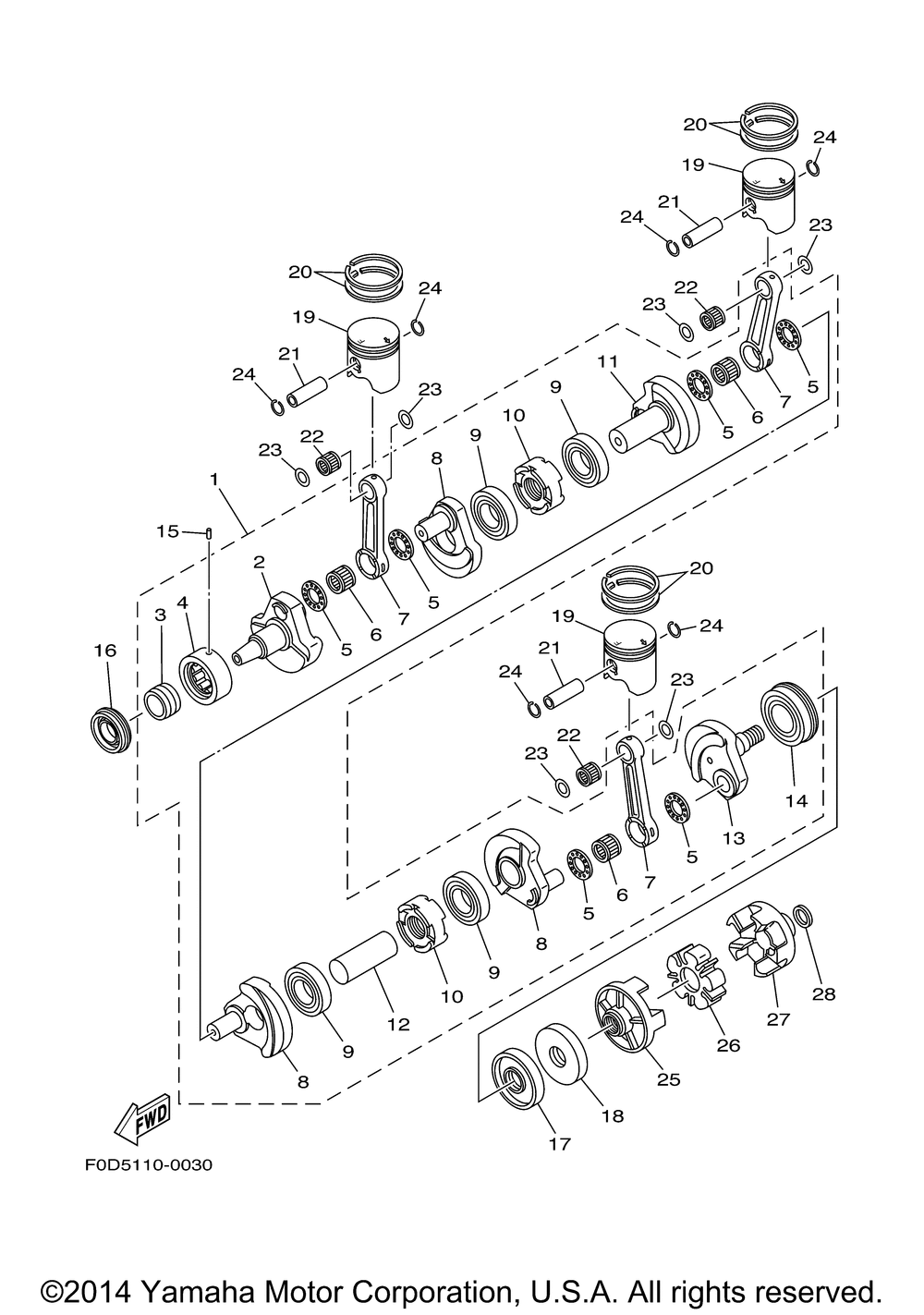

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKSHAFT ASSY | 1 | |
| 2 | CRANK 1 | 1 | |
| 3 | COLLAR | 1 | |
| 4 | BEARING | 1 | |
| 5 | WASHER CRANK PIN | 6 | |
| 6 | BEARING | 3 | |
| 7 | ROD CONNECTING | 3 | |
| 8 | CRANK 2 | 3 | |
| 9 | BEARING | 4 | |
| 10 | SEAL LABYRINTH 1 | 2 | |
| 11 | CRANK 5 | 1 | |
| 12 | CRANK 3 | 1 | |
| 13 | CRANK 4 | 1 | |
| 14 | BEARING | 1 | |
| 15 | PINDOWEL (5 per pack) | 1 | |
| 16 | OIL SEAL | 1 | |
| 17 | OIL SEAL | 1 | |
| 18 | OIL SEAL | 1 | |
| 19 | PISTON (STD) (STD) UR RED | 3 | |
| 19 | PISTON (STD) (STD) UR ORANGE | 3 | |
| 19 | PISTON (STD) (STD) UR GREEN | 3 | |
| 19 | PISTON (STD) (STD) UR PURPLE | 3 | |
| 20 | PISTON RING SET (STD (STD) | 3 | |
| 21 | PIN PISTON | 2 | |
| 22 | BEARING | 3 | |
| 23 | WASHER PLATE | 6 | |
| 24 | CLIP PISTON PIN (5 per pack) | 6 | |
| 25 | FLANGE COUPLING | 1 | |
| 26 | RUBBER SHAFT COUPL | 1 | |
| 27 | FLANGE COUPLING 1 | 1 | |
| 28 | WASHER PLATE | 1 |
