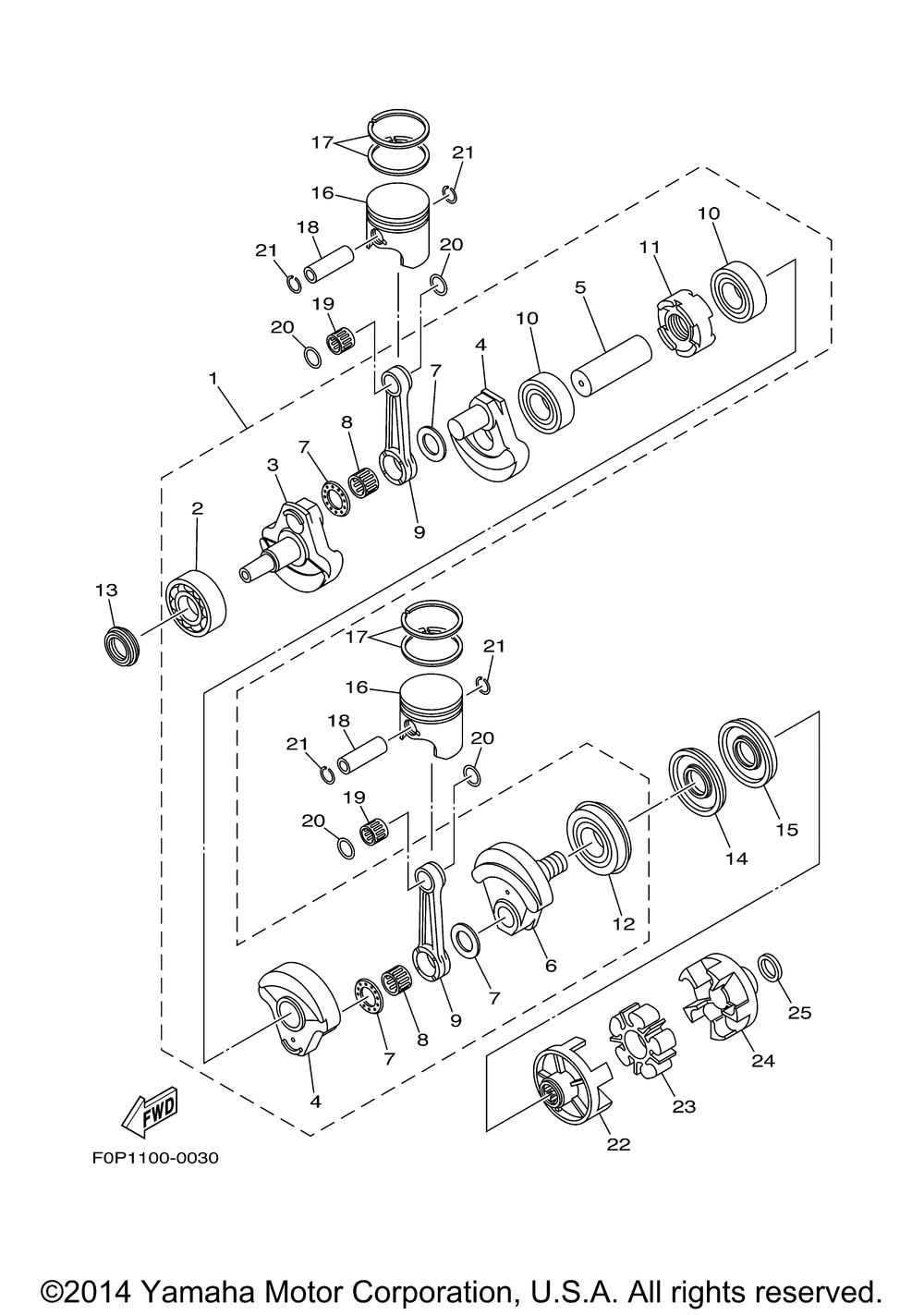

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKSHAFT ASSY | 1 | |
| 2 | BEARING | 1 | |
| 3 | CRANK 1 | 1 | |
| 4 | CRANK 2 | 2 | |
| 5 | CRANK 3 | 1 | |
| 6 | CRANK 4 | 1 | |
| 7 | WASHER CRANK PIN | 4 | |
| 8 | BEARING | 2 | |
| 9 | ROD CONNECTING | 2 | |
| 10 | BEARING | 2 | |
| 11 | SEAL LABYRINTH 1 | 1 | |
| 12 | BEARING | 1 | |
| 13 | OIL SEAL | 1 | |
| 14 | OIL SEAL | 1 | |
| 15 | OIL SEAL | 1 | |
| 16 | PISTON (STD) | 2 | |
| 16 | PISTON (STD) | 2 | |
| 16 | PISTON (STD) | 2 | |
| 16 | PISTON (STD) | 2 | |
| 17 | PISTON RING SET (STD (STD) | 4 | |
| 18 | PIN PISTON | 2 | |
| 19 | BEARING | 2 | |
| 20 | WASHER PLATE | 4 | |
| 21 | CLIP PISTON PIN (5 per pack) | 4 | |
| 22 | FLANGE COUPLING | 1 | |
| 23 | RUBBER SHAFT COUPL | 1 | |
| 24 | FLANGE COUPLING 1 | 1 | |
| 25 | WASHER PLATE | 1 |
