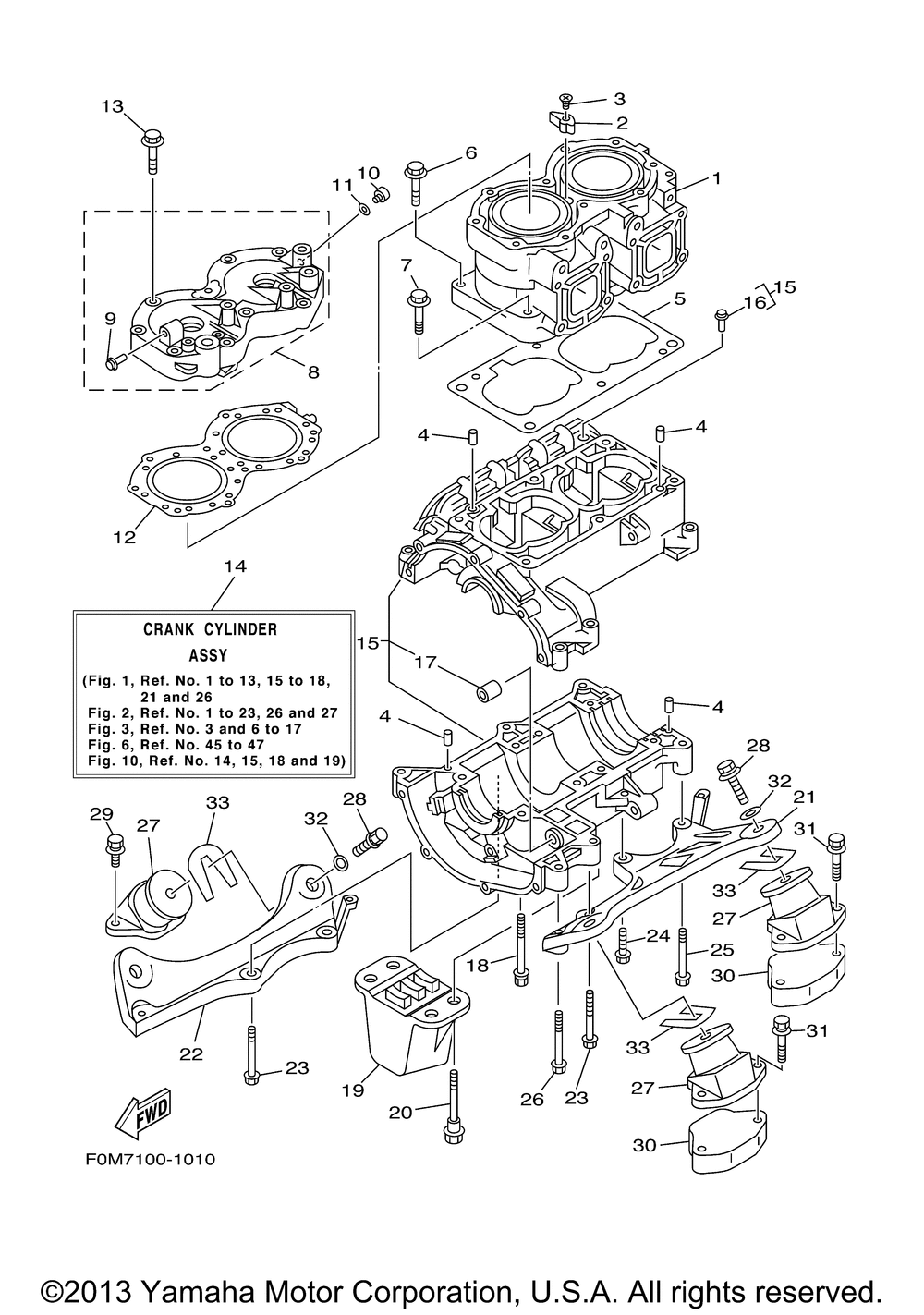

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CYLINDER 1 | 1 | |
| 2 | ANODE | 1 | |
| 3 | SCREWFLAT HEAD | 1 | |
| 4 | PINDOWEL (USA) (5 per pack) | 4 | |
| 5 | GASKET CYLINDER | 1 | |
| 6 | BOLTWITH WASHER | 4 | |
| 7 | BOLTWITH WASHER | 2 | |
| 8 | HEAD CYLINDER 1 | 1 | |
| 9 | NIPPLE | 1 | |
| 10 | PLUG STRAIGHT SCREW | 1 | |
| 11 | GASKET (USA) | 1 | |
| 12 | GASKET CYLINDER HEA | 1 | |
| 13 | BOLTWITH WASHER | 10 | |
| 14 | CRANK CYLINDER ASSY | 1 | |
| 15 | CRANKCASE ASSY | 1 | |
| 16 | NIPPLE | 1 | |
| 17 | BUSHSOLID | 1 | |
| 18 | BOLTWITH WASHER | 4 | |
| 19 | STOPPERUPPER MT.R | 1 | |
| 20 | BOLT (6R8) | 4 | |
| 21 | BRACKET FRONT UPPER | 1 | |
| 22 | BRACKET REAR UPPER | 1 | |
| 23 | BOLT W/WASHER | 4 | |
| 24 | BOLT W/WSHR (63N) | 1 | |
| 25 | BOLT W/WSHR (63N) | 1 | |
| 26 | BOLT W/WSHR (63N) | 1 | |
| 27 | MOUNT RUBBER | 4 | |
| 28 | BOLTWITH WASHER | 4 | |
| 29 | BOLTWITH WASHER | 4 | |
| 30 | SPACERENG.MOUNT | 2 | |
| 31 | BOLTWITH WASHER | 4 | |
| 32 | WASHER PLATE | 4 | |
| 33 | SHIM (T=0.1) (T=0.1) UN | 10 | |
| 33 | SHIM (T=0.3) (T=0.3) UN | 10 | |
| 33 | SHIM (T=0.5) (T=0.5) UN | 10 | |
| 33 | SHIM (T=1.0) (T=1.0) UN | 10 | |
| 33 | SHIM (T=2.0) (T=2.0) UN | 10 |
