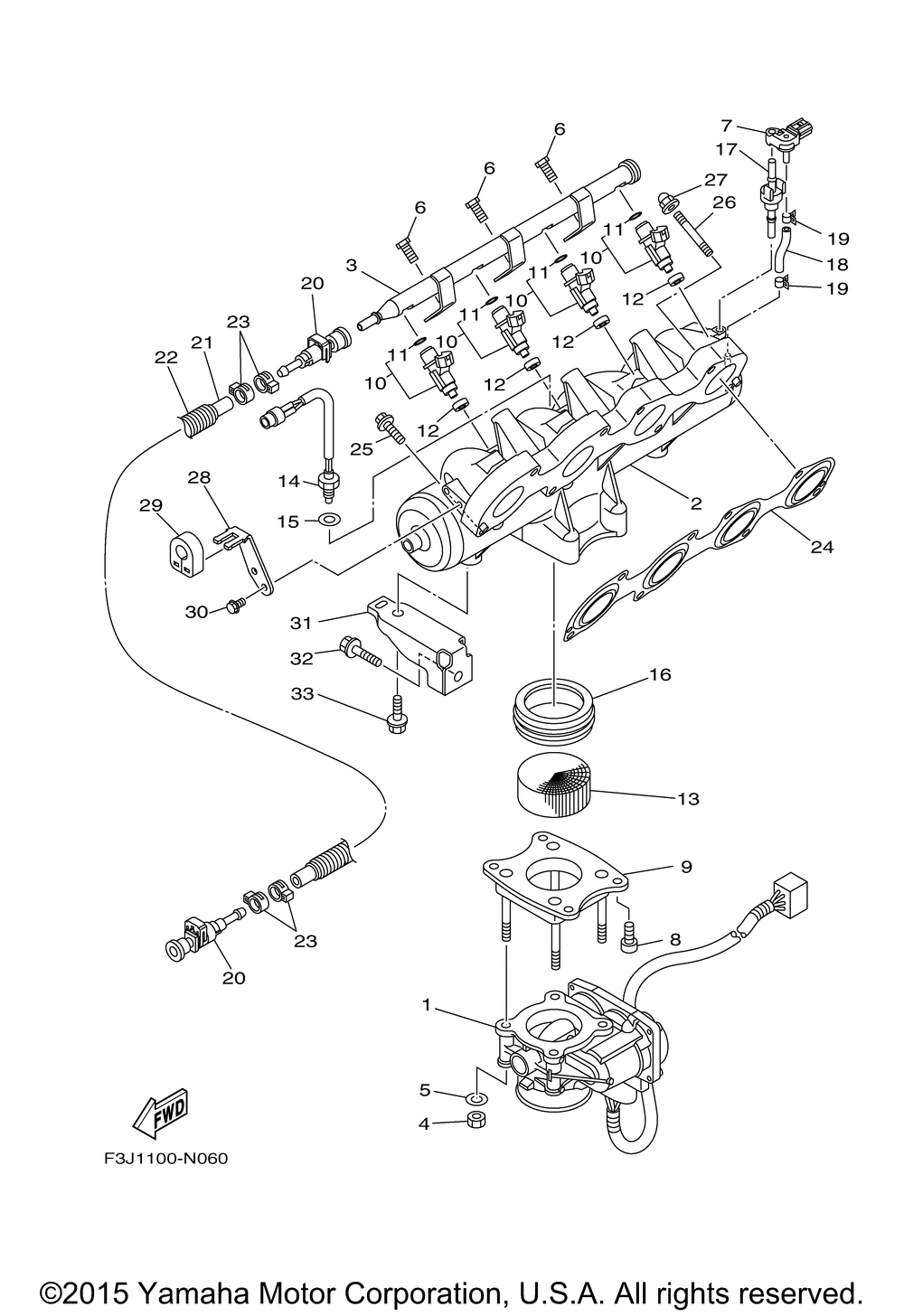

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | THROTTLE BODY ASSY | 1 | |
| 2 | MANIFOLD INTAKE 1 | 1 | |
| 3 | DELIVERY PIPE | 1 | |
| 4 | NUT | 4 | |
| 5 | WASHER | 4 | |
| 6 | BOLT | 3 | |
| 7 | SENSOR PRESSURE | 1 | |
| 8 | BOLT | 4 | |
| 9 | THROTTLE DAMPER AS | 1 | |
| 10 | INJECTOR | 4 | |
| 11 | O-RING | 1 | |
| 12 | GASKET MANIFOLD | 4 | |
| 13 | RIBBON | 1 | |
| 14 | SENSOR AIR TEMPERAT | 1 | |
| 15 | WASHER | 1 | |
| 16 | HOLDER | 1 | |
| 17 | GROMMET | 1 | |
| 18 | HOSE VACUUM SENSING | 1 | |
| 19 | CLIP | 2 | |
| 20 | FUEL PIPE JOINT | 2 | |
| 21 | HOSE | 1 | |
| 22 | TUBE (L495) | 1 | |
| 23 | HOSE CLAMP ASSY | 4 | |
| 24 | GASKET MANIFOLD 1 | 1 | |
| 25 | BOLT WITH WASHER | 6 | |
| 26 | BOLT STUD | 2 | |
| 27 | NUT CROWN(4BR) | 2 | |
| 28 | PLATE STAY | 1 | |
| 29 | GROMMET | 1 | |
| 30 | BOLT FLANGE | 2 | |
| 31 | STAY | 2 | |
| 32 | BOLT WITH WASHER | 2 | |
| 33 | BOLT WITH WASHER | 2 |
