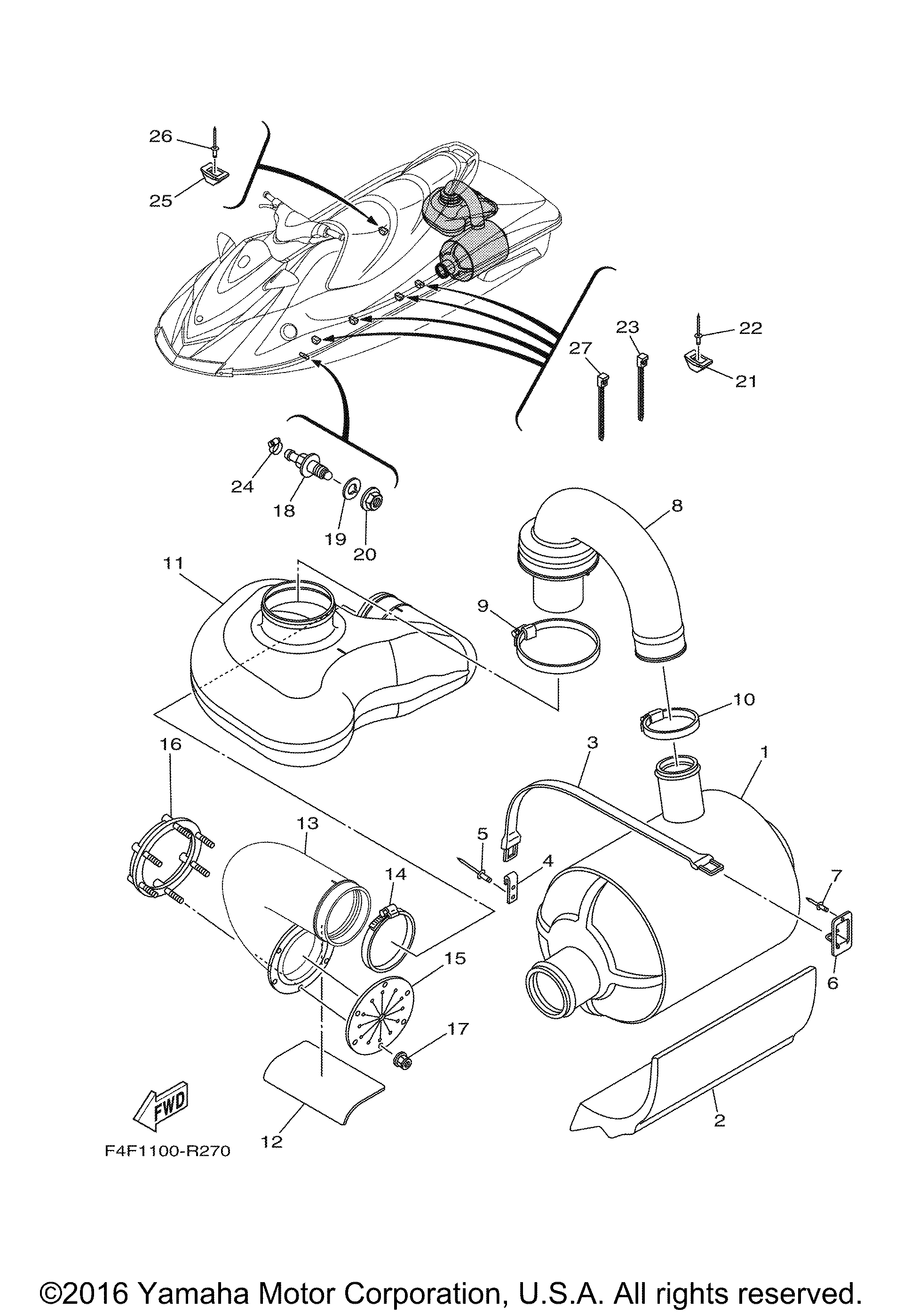

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WATER LOCK COMP. | 1 | |
| 2 | FLOATATION BASE 1 | 1 | |
| 3 | BAND FUEL TANK | 1 | |
| 4 | HOOK A | 1 | |
| 5 | RIVETBLIND (5 per pack) | 2 | |
| 6 | HOOK A | 1 | |
| 8 | HOSE EXHAUST | 1 | |
| 9 | BAND HOSE 79 | 1 | |
| 10 | HOSE CLAMP ASSY | 1 | |
| 11 | TANK WATER | 1 | |
| 12 | PAD BATTERY | 1 | |
| 13 | HOSEEXHAUST 3 | 1 | |
| 14 | HOSE CLAMP ASSY | 1 | |
| 15 | VALVE EXHAUST | 1 | |
| 16 | PLATE | 1 | |
| 17 | NUT LOCK | 6 | |
| 18 | PILOT WATER | 1 | |
| 19 | GASKET | 1 | |
| 20 | NUT | 1 | |
| 21 | BASE CLAMP | 4 | |
| 22 | RIVET BLIND | 4 | |
| 23 | CLAMP (5 per pack) | 4 | |
| 24 | CLIP | 1 | |
| 27 | BAND | 1 |
