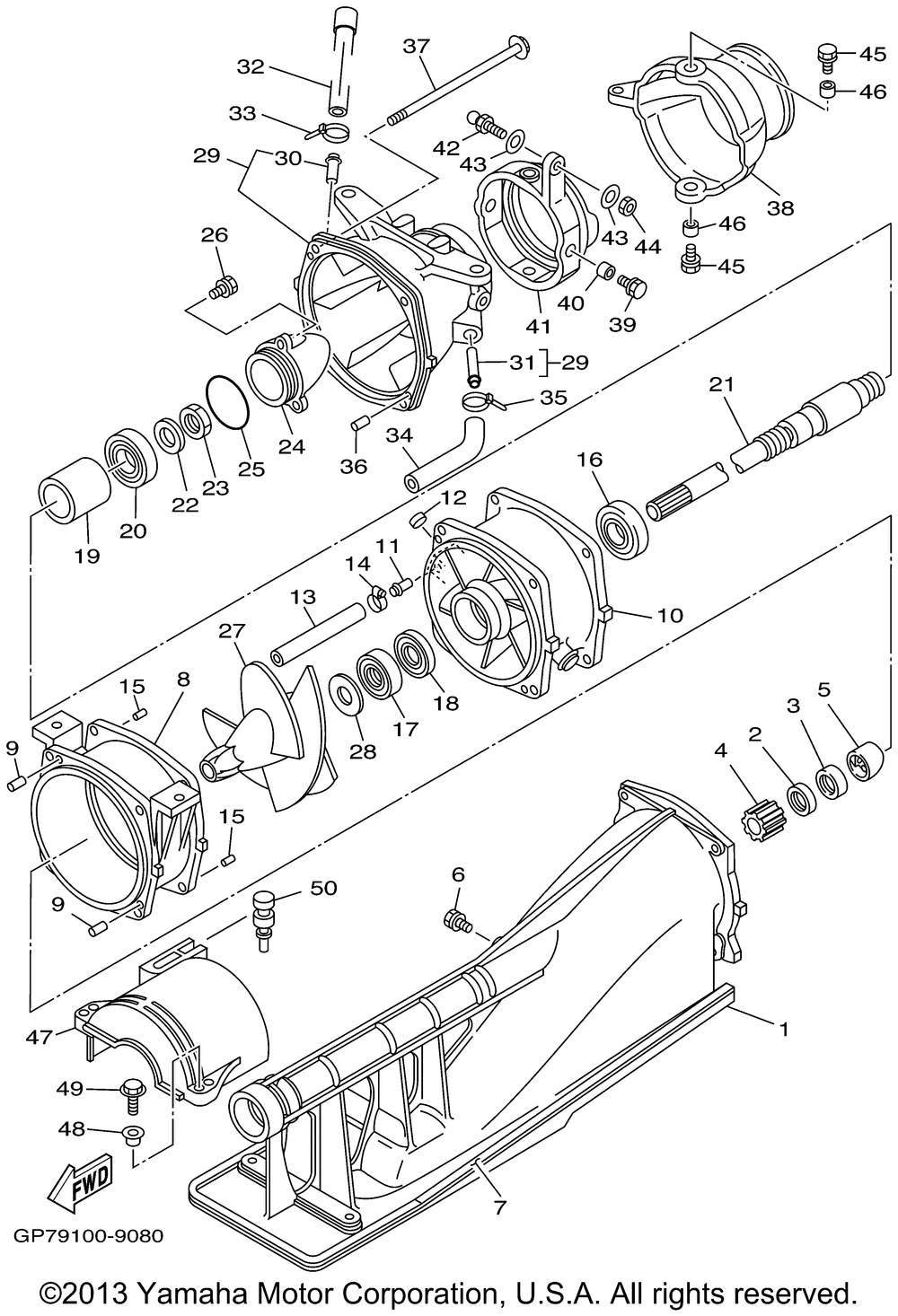

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | DUCT INTAKE | 1 | |
| 2 | OIL SEAL | 1 | |
| 3 | OIL SEAL | 1 | |
| 4 | BUSHING DRIVE SHAFT | 1 | |
| 5 | SPACER YMUS | 1 | |
| 6 | BOLTWITH WASHER | 1 | |
| 7 | FELTPACKING | 2 | |
| 8 | HOUSING IMPELLER | 1 | |
| 9 | PINDOWEL (USA) (5 per pack) | 2 | |
| 10 | DUCT IMPELLER | 1 | |
| 11 | NIPPLE | 1 | |
| 12 | PLUG | 1 | |
| 13 | HOSE | 1 | |
| 14 | BAND HOSE (5 per pack) | 1 | |
| 16 | BEARING | 1 | |
| 17 | OIL SEALSD-TYPE | 1 | |
| 18 | OIL SEALS-TYPE | 1 | |
| 20 | BEARING | 1 | |
| 21 | SHAFT DRIVE | 1 | |
| 22 | WASHER | 1 | |
| 23 | NUT | 1 | |
| 25 | O-RING | 1 | |
| 26 | BOLTWITH WASHER | 3 | |
| 27 | IMPELLER | 1 | |
| 28 | SPACER | 1 | |
| 29 | NOZZULE | 1 | |
| 30 | NIPPLE | 1 | |
| 31 | NIPPLE | 1 | |
| 32 | PIPE1 | 1 | |
| 34 | HOSE (L270) YMUS | 1 | |
| 35 | CLAMP | 1 | |
| 37 | BOLTWITH WASHER YMUS | 4 | |
| 38 | NOZZLE DEFLECTOR | 1 | |
| 39 | BOLTWITH WASHER | 2 | |
| 40 | COLLAR | 2 | |
| 41 | RINGTRIM | 1 | |
| 42 | STUD JOINT BALL | 1 | |
| 43 | WASHERPLATE | 2 | |
| 44 | NUT | 1 | |
| 46 | COLLAR | 2 | |
| 47 | COVER YMUS | 1 | |
| 48 | COLLAR | 2 | |
| 50 | GROMMET | 1 |
