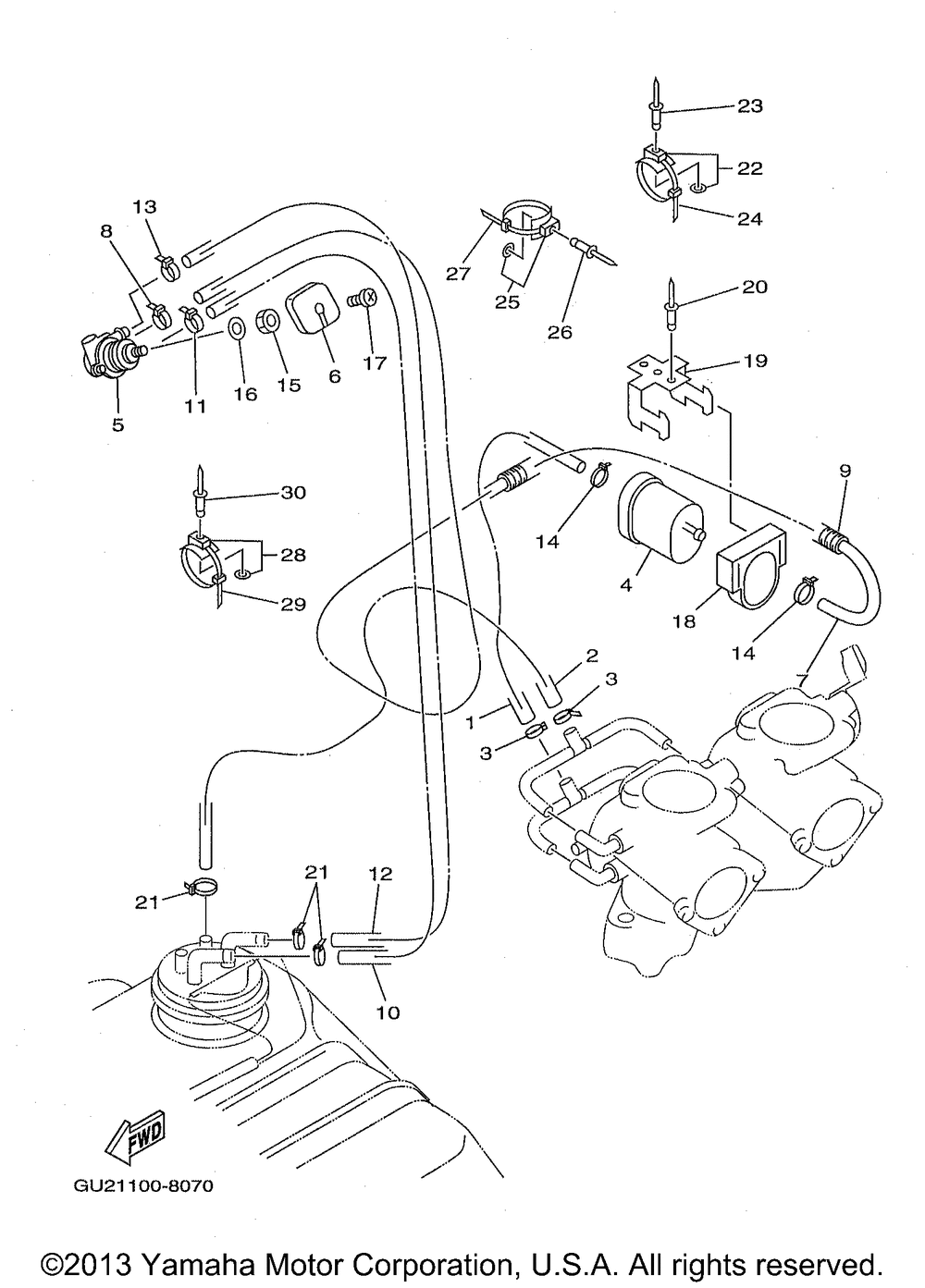

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE | 1 | |
| 2 | HOSE (L910) | 1 | |
| 3 | CLAMP | 2 | |
| 4 | FILTER ASSY | 1 | |
| 5 | FUEL COCK ASSY 1 | 1 | |
| 6 | LEVERCOCK | 1 | |
| 7 | HOSE (L1400) | 1 | |
| 9 | HOSE (L320) | 1 | |
| 10 | HOSE (L600) | 1 | |
| 12 | HOSE (L600) | 1 | |
| 15 | NUTHEXAGON | 1 | |
| 16 | WASHER PLAIN YMUS | 1 | |
| 17 | SCREW BIND | 1 | |
| 18 | HOLDER FILTER | 1 | |
| 19 | BRACKETFUEL FLTER | 1 | |
| 20 | RIVETBLIND (5 per pack) | 2 | |
| 21 | CLAMP | 3 | |
| 22 | CLAMP | 6 | |
| 23 | RIVETBLIND (5 per pack) | 6 | |
| 24 | BAND | 6 |
