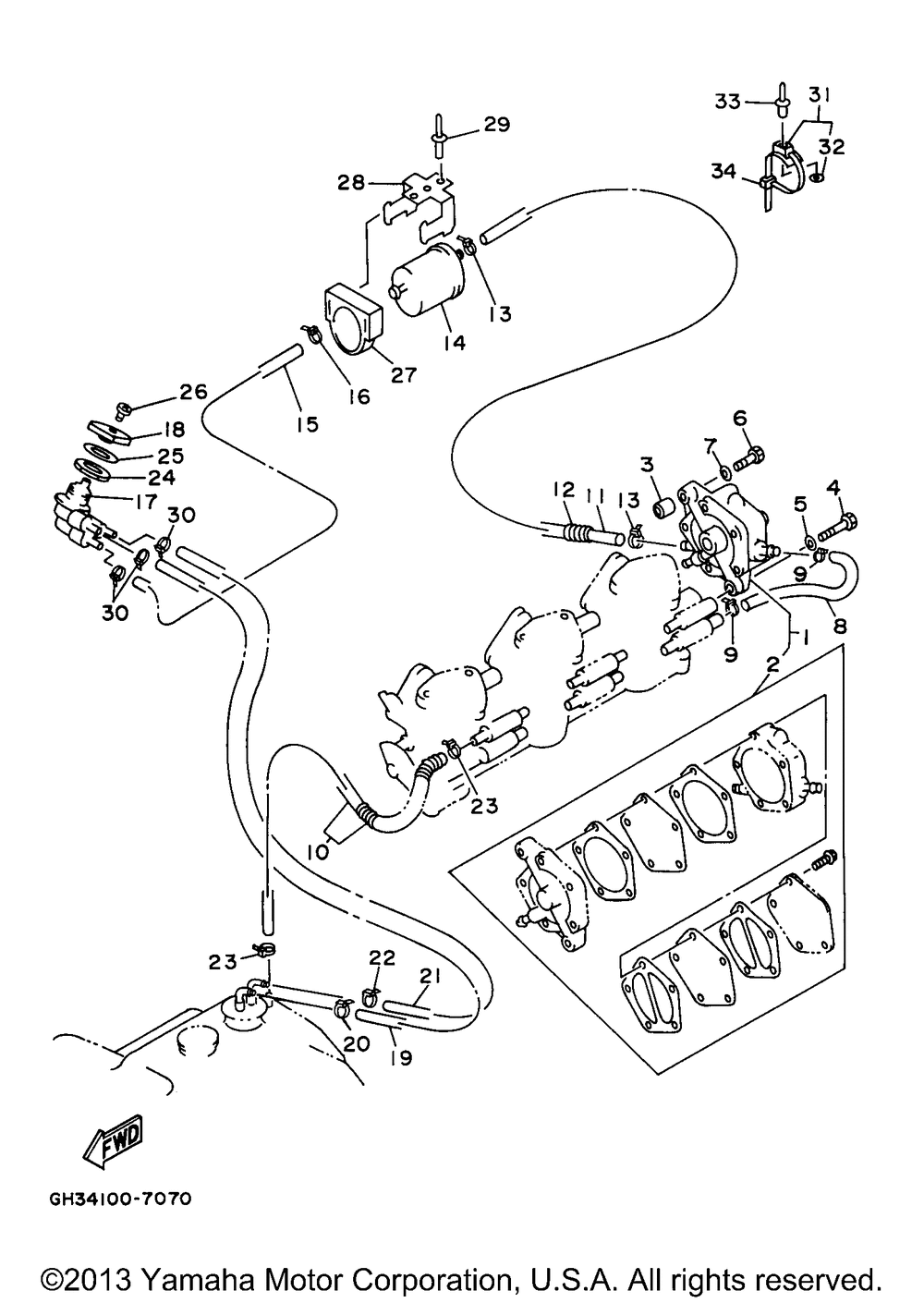

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL PUMP ASY | 1 | |
| 2 | FUEL PUMP REP. KIT | 1 | |
| 3 | COLLAR | 1 | |
| 4 | BOLT | 1 | |
| 5 | WASHER (5 per pack) | 1 | |
| 6 | BOLT (61K) | 1 | |
| 8 | PIPE 3 | 1 | |
| 9 | CLAMP | 2 | |
| 11 | HOSE | 1 | |
| 12 | HOSE (L320) | 1 | |
| 14 | FILTER ASSY | 1 | |
| 15 | HOSE OUT | 1 | |
| 17 | FUEL COCK ASY 1 | 1 | |
| 18 | LEVERCOCK | 1 | |
| 19 | HOSE FUEL ON | 1 | |
| 21 | HOSE FUEL RES | 1 | |
| 24 | NUTHEXAGON | 1 | |
| 25 | WASHER PLAIN YMUS | 1 | |
| 26 | SCREW BIND | 1 | |
| 27 | HOLDER FILTER | 1 | |
| 28 | BRACKETFUEL FLTER | 1 | |
| 29 | RIVETBLIND (5 per pack) | 2 | |
| 31 | CLAMP | 4 | |
| 32 | WASHER PLAIN | 1 | |
| 33 | RIVETBLIND (5 per pack) | 4 | |
| 34 | BAND | 4 |
