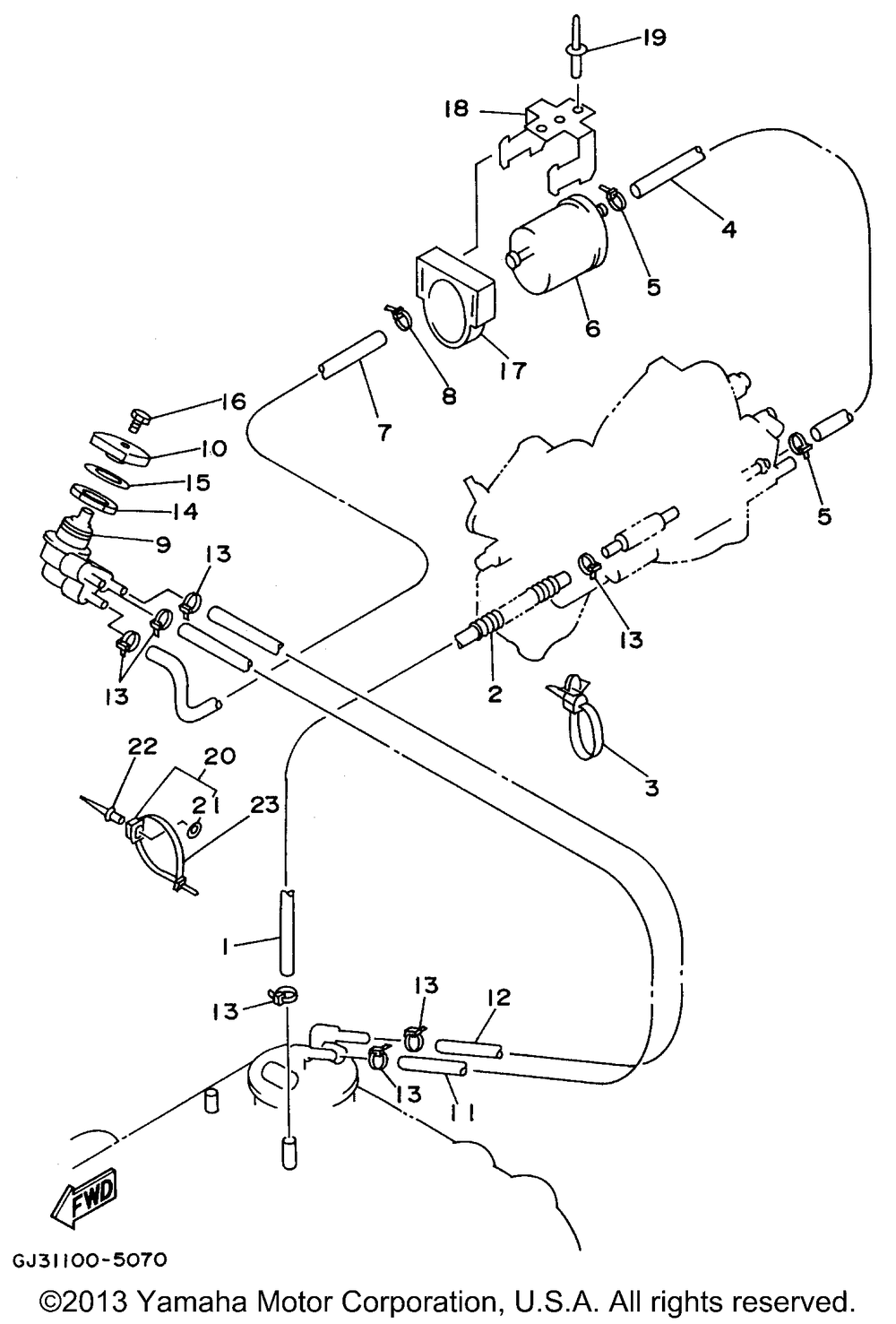

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE | 1 | |
| 2 | HOSE | 1 | |
| 3 | CLAMP (62T) | 1 | |
| 4 | HOSE (L320) | 1 | |
| 5 | CLAMP | 2 | |
| 6 | FILTER ASSY | 1 | |
| 7 | HOSE OUT | 1 | |
| 9 | FUEL COCK ASY 1 | 1 | |
| 10 | LEVERCOCK | 1 | |
| 11 | HOSE FUEL ON | 1 | |
| 12 | HOSE FUEL RES | 1 | |
| 14 | NUTHEXAGON | 1 | |
| 15 | WASHER PLAIN YMUS | 1 | |
| 16 | SCREW BIND | 1 | |
| 17 | HOLDER FILTER | 1 | |
| 18 | BRACKETFUEL FLTER | 1 | |
| 19 | RIVETBLIND (5 per pack) | 2 | |
| 20 | CLAMP | 5 | |
| 21 | WASHER PLAIN | 1 | |
| 22 | RIVETBLIND (5 per pack) | 5 | |
| 23 | BAND | 5 |
