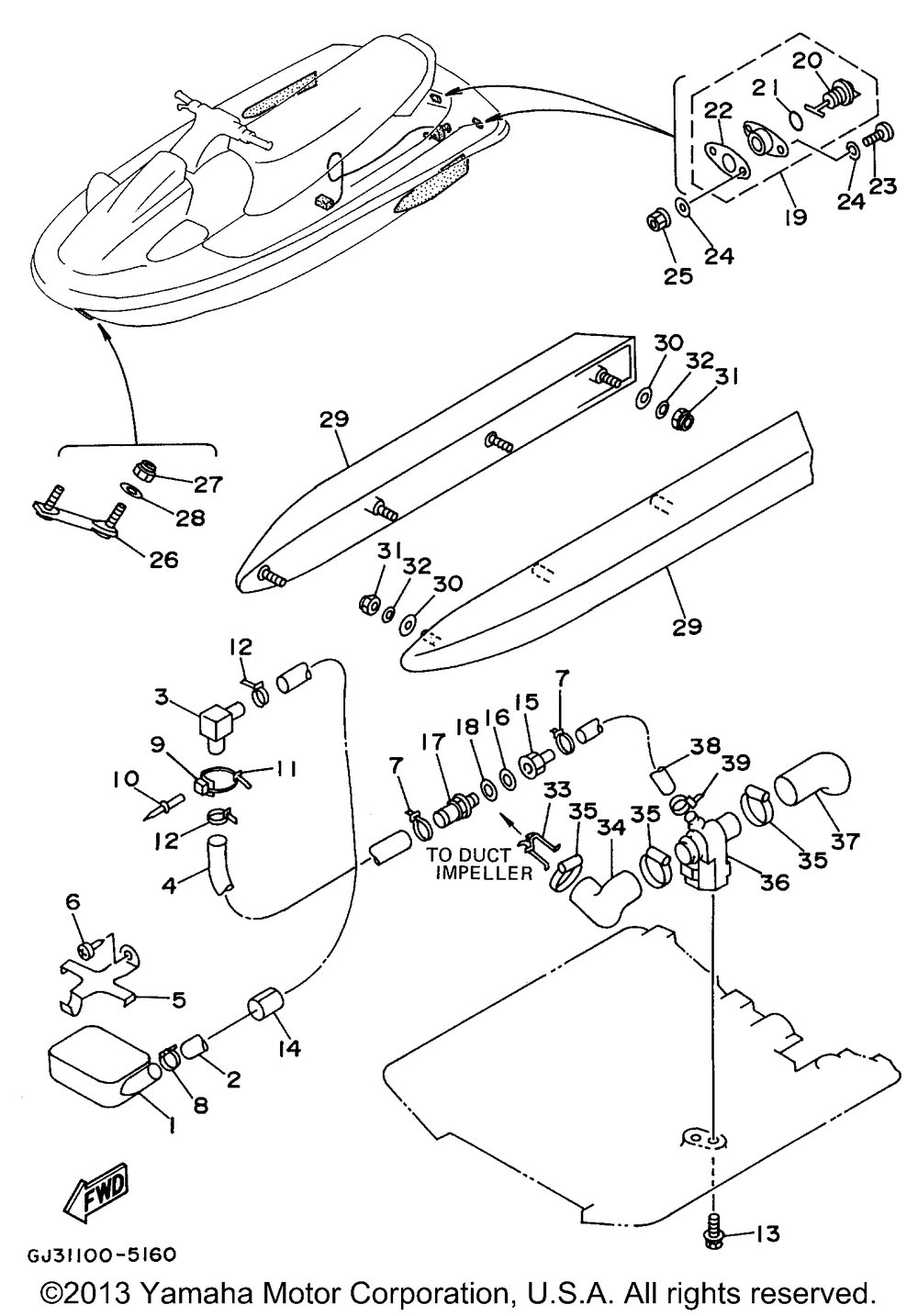

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | STRAINER | 1 | |
| 2 | HOSE | 1 | |
| 3 | JOINT HOSE | 1 | |
| 4 | HOSE YMUS | 1 | |
| 4 | HOSE (L500) | 1 | |
| 5 | BASE | 1 | |
| 6 | SCREWTAPPING | 1 | |
| 7 | BAND HOSE 50 (5 per pack) | 2 | |
| 9 | CLAMP | 1 | |
| 10 | RIVET BLIND YMUS (5 per pack) | 1 | |
| 11 | BAND | 1 | |
| 12 | CLAMP | 2 | |
| 13 | BOLT W/WASHER (5 per pack) | 2 | |
| 14 | PACKINGHOSE 2 | 1 | |
| 15 | CONNECTTHRU-HULL | 1 | |
| 16 | GASKET (5 per pack) | 1 | |
| 17 | CONNECTNTHRU-HULL | 1 | |
| 19 | DRAIN PLUG ASSY | 2 | |
| 20 | PLUG DRAIN | 1 | |
| 21 | O-RING | 1 | |
| 22 | PACKING DRAIN (EU0) | 1 | |
| 23 | SCREW PAN HEAD | 4 | |
| 24 | WASHER (5 per pack) | 8 | |
| 25 | NUTSELF-LOCKING | 4 | |
| 26 | BOWEYE 1 (S) YMUS | 1 | |
| 27 | NUTSELF-LOCKING | 2 | |
| 28 | WASHER | 2 | |
| 29 | STABILIZER (BLACK) | 2 | |
| 31 | NUTSELF-LOCKING | 10 | |
| 32 | WASHER (5 per pack) | 10 | |
| 33 | STRAINER | 1 | |
| 34 | HOSE SPLASHER | 1 | |
| 35 | HOSE CLAMP ASSY | 3 | |
| 36 | BODY VALVE | 1 | |
| 37 | HOSE SUCTION | 1 | |
| 38 | HOSE | 1 |
