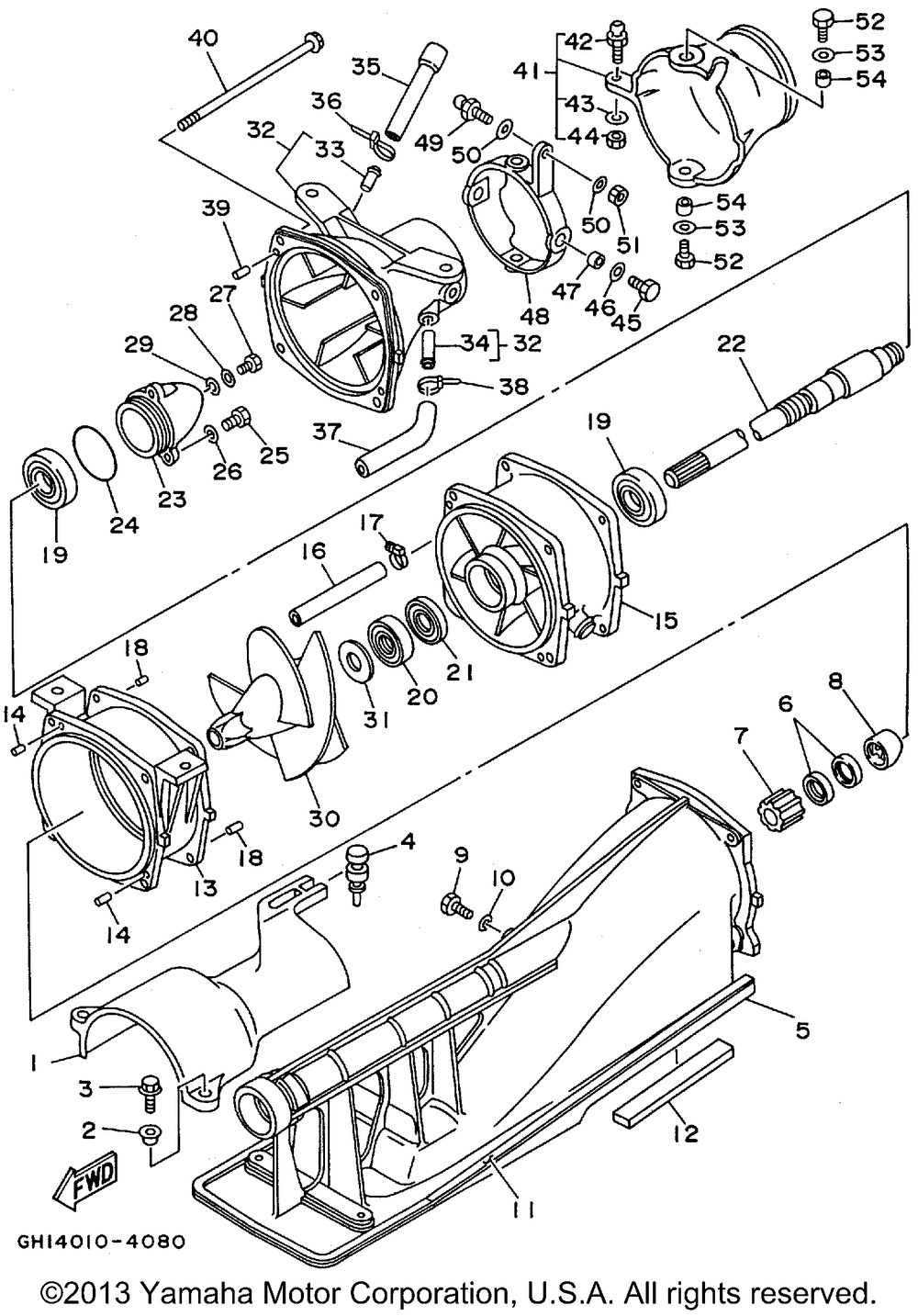

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | COVER | 1 | |
| 2 | COLLAR | 2 | |
| 3 | BOLT | 2 | |
| 4 | GROMMET | 1 | |
| 5 | DUCT INTAKE (62T-51311-01-94) | 1 | |
| 6 | OIL SEALSD-TYPE | 2 | |
| 7 | BUSHINGDRIVE SHAF | 1 | |
| 8 | SPACER | 1 | |
| 9 | BOLT | 1 | |
| 10 | WASHER (5 per pack) | 1 | |
| 11 | FELTPACKING | 2 | |
| 12 | FELT PACKING 2 | 2 | |
| 13 | HOUSING IMPELLER | 1 | |
| 14 | PINDOWEL (USA) (5 per pack) | 2 | |
| 15 | DUCT IMPELLER | 1 | |
| 16 | HOSE | 1 | |
| 17 | HOSE CLAMP ASSY | 1 | |
| 19 | BEARING | 2 | |
| 20 | OIL SEALSD-TYPE | 1 | |
| 21 | OIL SEALS-TYPE | 1 | |
| 22 | SHAFT DRIVE | 1 | |
| 23 | CAP | 1 | |
| 24 | O-RING | 1 | |
| 25 | BOLT (GA1) (5 per pack) | 3 | |
| 27 | BOLT | 1 | |
| 29 | GASKET (6F5) | 1 | |
| 30 | IMPELLER | 1 | |
| 31 | SPACER | 1 | |
| 32 | NOZZLE | 1 | |
| 33 | NIPPLE | 1 | |
| 34 | NIPPLE | 1 | |
| 35 | PIPE 1 | 1 | |
| 36 | CLAMP | 1 | |
| 37 | HOSE (L260) | 1 | |
| 40 | BOLT | 4 | |
| 41 | NOZZLE DEFLECTOR | 1 | |
| 42 | BOLT JOINT | 1 | |
| 43 | WASHERPLATE | 1 | |
| 44 | NUT | 1 | |
| 45 | BOLT | 2 | |
| 46 | WASHER (5 per pack) | 2 | |
| 47 | COLLAR | 2 | |
| 48 | RINGTRIM | 1 | |
| 50 | WASHERPLATE | 2 | |
| 52 | BOLT | 2 | |
| 54 | COLLAR | 2 |
