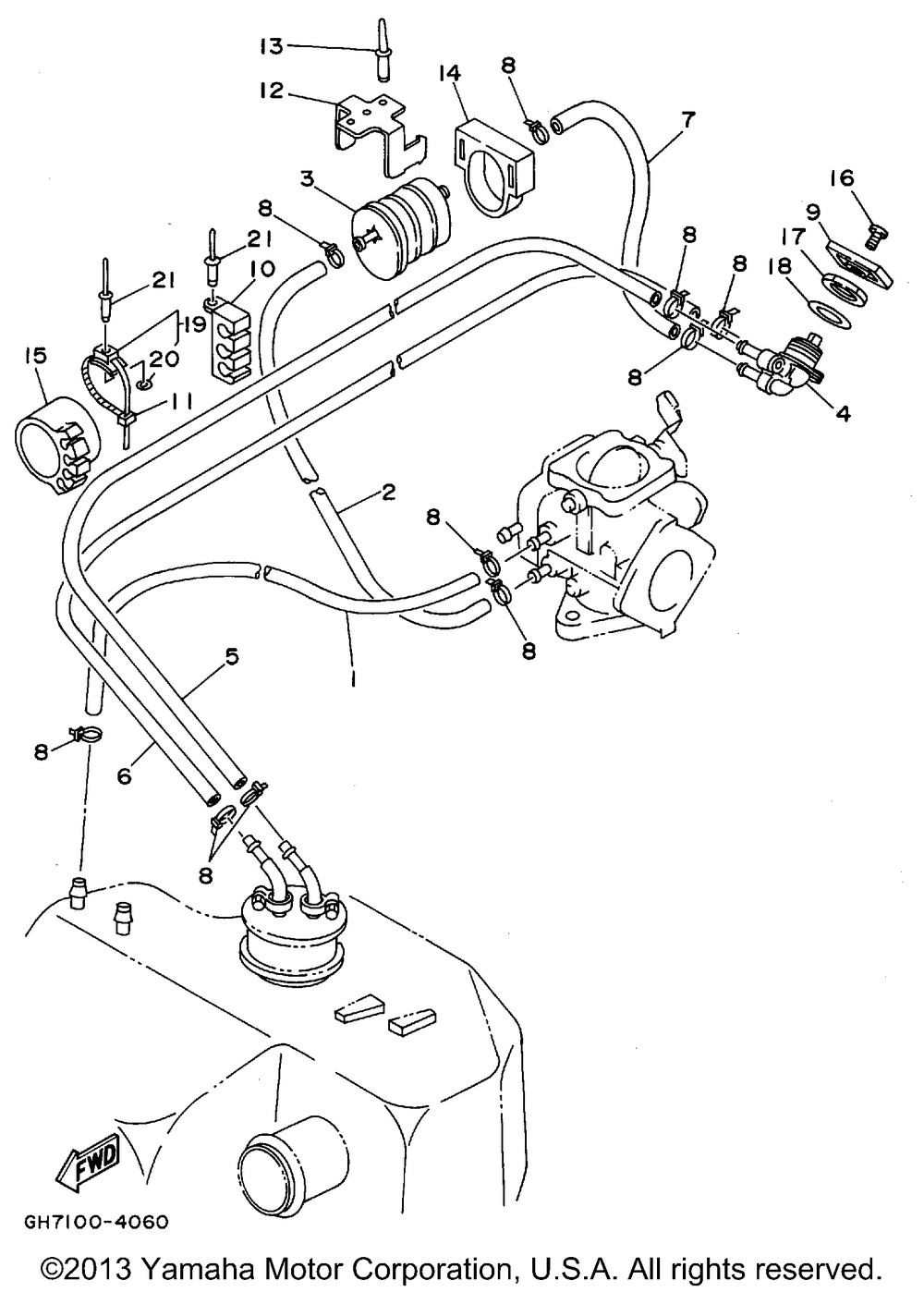

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE (L550) | 1 | |
| 2 | HOSE (L320) | 1 | |
| 3 | FILTER ASSY | 1 | |
| 4 | FUEL COCK ASY 1 | 1 | |
| 5 | HOSE | 1 | |
| 6 | HOSE | 1 | |
| 7 | HOSE | 1 | |
| 8 | CLAMP | 10 | |
| 9 | LEVERCOCK | 1 | |
| 10 | HOLDERPIPE 2 YMUS | 1 | |
| 11 | BAND HOSE 50 | 1 | |
| 12 | BRACKETFUEL FLTER | 1 | |
| 13 | RIVETBLIND | 3 | |
| 14 | HOLDER FILTER | 1 | |
| 15 | HOLDERPIPE 1 | 1 | |
| 16 | SCREW BIND | 1 | |
| 17 | NUTHEXAGON | 1 | |
| 18 | WASHER PLAIN YMUS | 1 | |
| 19 | CLAMP | 1 | |
| 20 | WASHER PLAIN | 1 | |
| 21 | RIVET BLIND (10 per pack) | 2 |
