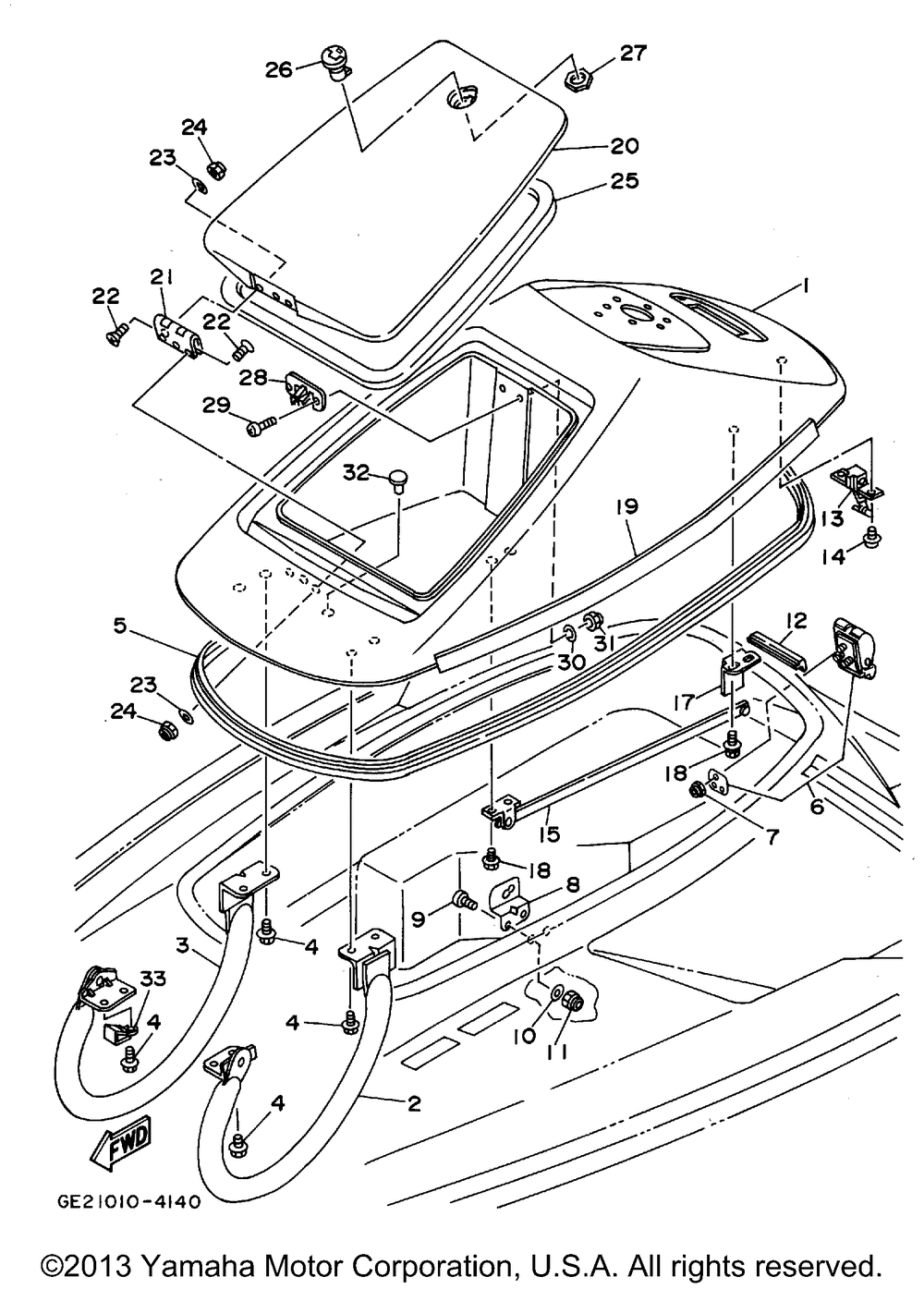

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ENG.HATCHVIOLET | 1 | |
| 2 | HINGE HATCH LH (LH) | 1 | |
| 3 | HINGE HATCH RH (RH) | 1 | |
| 4 | BOLT W/WASHER (5 per pack) | 8 | |
| 5 | PACKING 1 | 1 | |
| 6 | HATCH LOCK ASSY | 1 | |
| 7 | NUTSELF-LOCKING | 3 | |
| 8 | BRCKTHATCH SUPORT | 1 | |
| 9 | SCREWPAN HEAD (USA) (5 per pack) | 2 | |
| 10 | WASHER (5 per pack) | 2 | |
| 11 | NUTSELF-LOCKING | 2 | |
| 12 | TRIM UR | 1 | |
| 13 | HOOK HATCH LOCK | 1 | |
| 14 | SCREWFLATHD.W/WSH (5 per pack) | 2 | |
| 15 | SUPPORT HATCH | 1 | |
| 17 | FIX SUPPORT | 1 | |
| 18 | BOLTWITH WASHER | 2 | |
| 19 | TRIM (FJ0-65162-31-00) UR | 2 | |
| 20 | LIDENG.HATCHVIOLET VIVID SOLID 6 | 1 | |
| 21 | HINGE | 1 | |
| 22 | SCREWFLAT HEAD (10 per pack) | 6 | |
| 23 | WASHER (5 per pack) | 6 | |
| 25 | PACKING 3 | 1 | |
| 26 | LOCK LID | 1 | |
| 27 | NUTHEXAGON | 1 | |
| 28 | HOOK LID LOCK | 1 | |
| 29 | . . ELECTRONIC SIREN ASS'Y | 2 | |
| 32 | PLUG W/S STAY 1 & 2 | 1 | |
| 33 | CLAMP | 1 |
