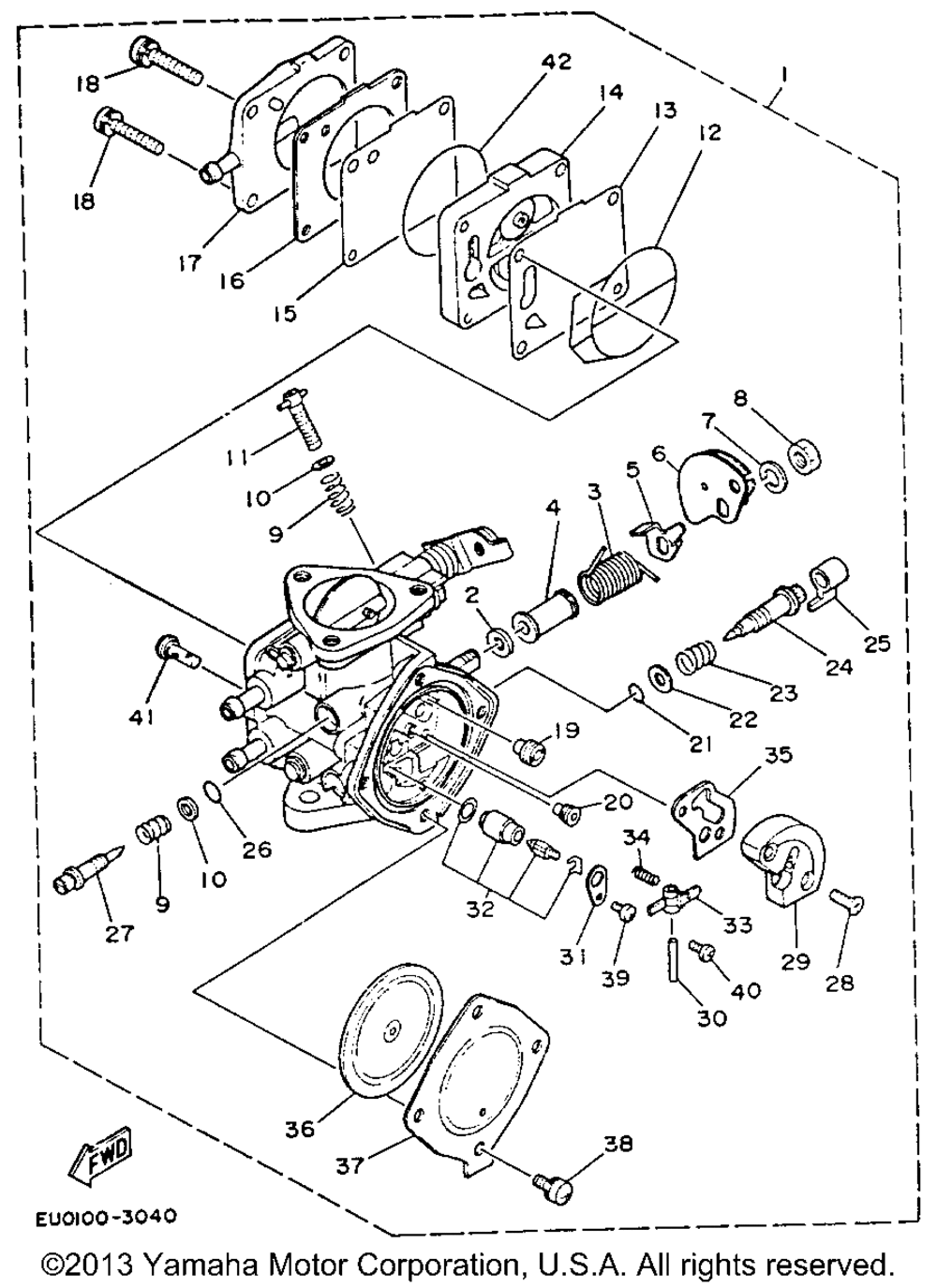

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CARBURETOR ASY 1 | 1 | |
| 2 | WASHER | 1 | |
| 3 | SPRING | 1 | |
| 4 | COLLAR | 1 | |
| 5 | BRACKETTHROTTLE 1 CARBURETOR 2 | 1 | |
| 6 | LEVERTHROTTLE CBL CARBURETOR 2 | 1 | |
| 7 | WASHERSPRING | 1 | |
| 8 | NUT | 1 | |
| 9 | SPRINGAJST SCREW (5 per pack) | 2 | |
| 10 | WASHER (5 per pack) | 2 | |
| 11 | SCREWADJUST CARBURETOR 1 | 1 | |
| 12 | O-RING | 1 | |
| 13 | DIAPHRAGM | 1 | |
| 14 | BODY 2 CARBURETOR 1 | 1 | |
| 15 | VALVECHECK CARBURETOR 1 | 1 | |
| 16 | GASKETFUEL PUMP 1 CARBURETOR 1 | 1 | |
| 17 | COVER CARBURETOR 1 | 1 | |
| 18 | SCREWPAN HEAD W/W CARBURETOR 1 (5 per pack) | 4 | |
| 19 | JETMAIN tahos_80 (80) | 1 | |
| 20 | JETMAIN(tahos_77.5) (tahos_775) (830-1423E- | 1 | |
| 21 | O-RING | 1 | |
| 22 | WASHER (5 per pack) | 1 | |
| 23 | SPRINGADJ. SCREW | 1 | |
| 24 | . SCREW PILOT | 1 | |
| 25 | CAP CARBURETOR | 1 | |
| 26 | O-RING (5 per pack) | 1 | |
| 27 | PLATE NEEDLE FIT. | 1 | |
| 28 | SCREW STOP | 1 | |
| 29 | BODY 1 | 1 | |
| 30 | PINFLOAT ARM | 1 | |
| 31 | PLATE | 1 | |
| 32 | NEEDLE | 1 | |
| 33 | ARM FLOAT | 1 | |
| 34 | SPRING | 1 | |
| 35 | GASKET | 1 | |
| 36 | DIAPHRAM PUMP | 1 | |
| 37 | BODYPUMP 1 | 1 | |
| 38 | SCREW (5 per pack) | 4 | |
| 39 | SCREW ADJUST | 3 | |
| 40 | . .SCREW COUNTERSUNK | 3 | |
| 41 | STRAINER | 1 | |
| 42 | O-RING CARBURETOR 1 | 1 |
